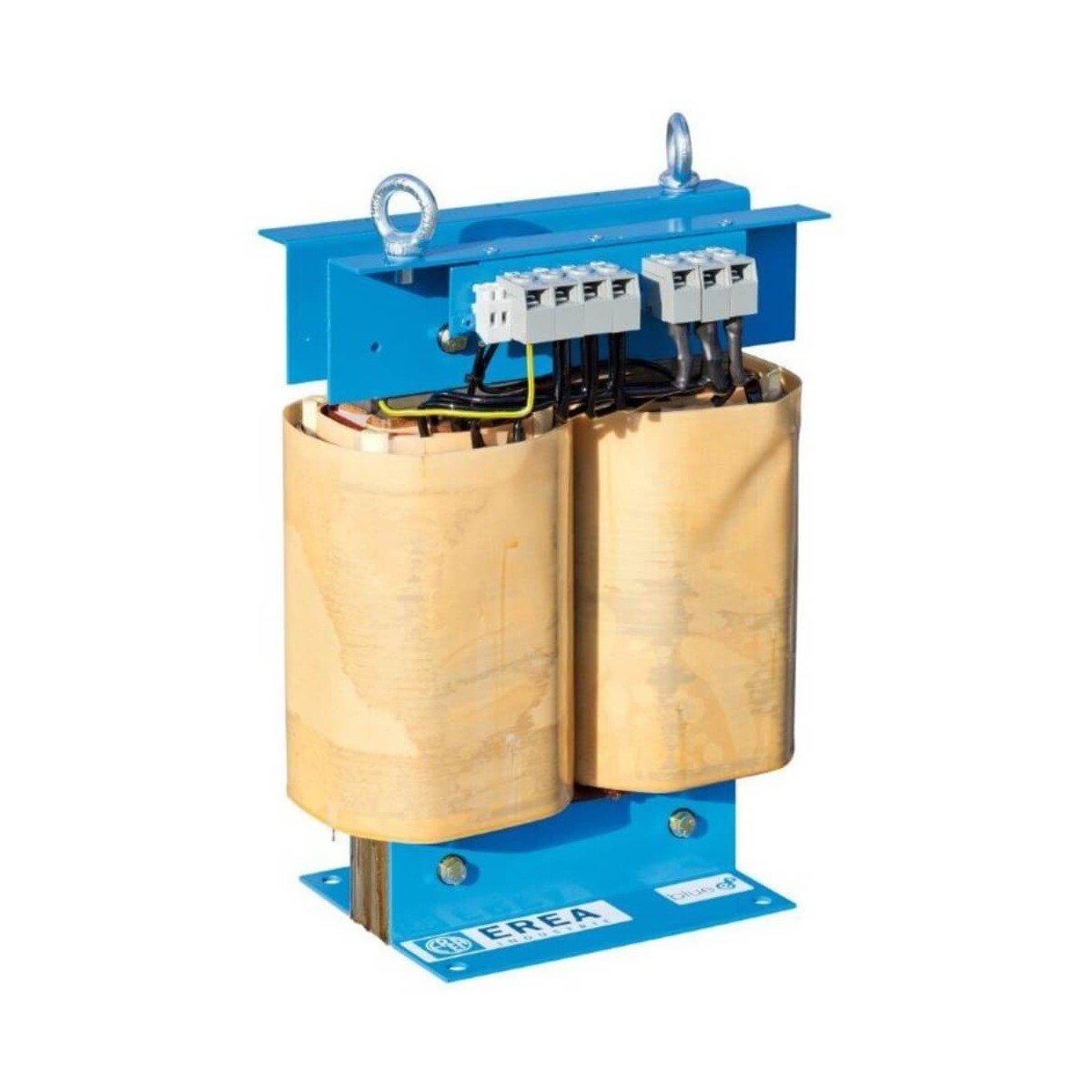

EREA 1 phase medical transformer 230V//230V 2,2kVA 230TMHD2200/BTE

Item No.: 230TMHD2200/BTE

Delivery time: Please contact us for current delivery times

Trillingsdemper

2.489,72 1.609,09
(Price excluding VAT): 1.329,83
You Save: 35%

Of betaal in termijnen vanaf 53,64 p/m. Meer info

EAN
5414503103598
SKU
230TMHD2200/BTE

Technical specifications

BrandEREA
Commercial Order Number230TMHD2200/BTE
EAN5414503103598
ClassSingle-phase isolating transformer energy-efficient for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 2200VA - PTC temperature sensor
Primary voltage230 Vac
Secondary voltage230 Vac
Power2.2KVA
Degree of protectionIP00
Dielectric Strenght (Vac)4500Vac
Dielectric strength to mass (Vac))2500Vac
StandardsEN 61558-2-15
Max. ambient temperature Ta (°C)50 °C
Temperature classB
ApplicationFor all applications in medical purpose rooms
Protection classPrepared for class I
Voltage drop (dU%)2.7%
Efficiency97%
Pcu (W)56 W
Po (W)11 W
Size A x B x C (mm)240x180x225mm
Size D (mm)200mm
Size E (mm)157mm
Weight38kg
Primary connectionScrew terminals
Secondary connectionScrew terminals
FinishVacuum- and pressure- varnish impregnated
Φ (mm)11mm


Options

On requestSpecial versions - PT100 temperature sensor
Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
Option Silent Block (accessory)SILENT BLOCK 50
