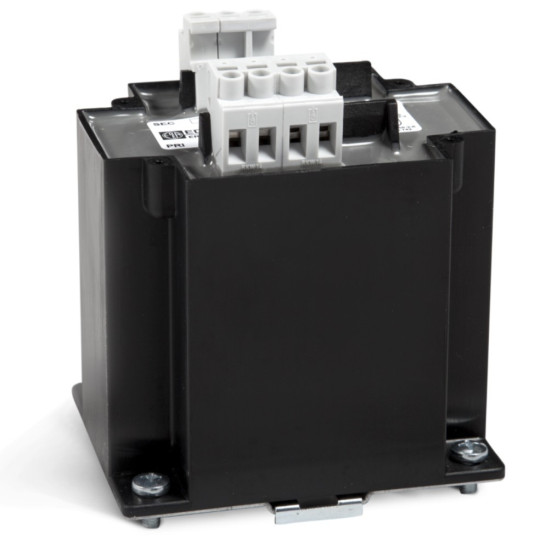

EREA 1 phase control transformer 15-0-230-400V/0-0-24V 160VA EDR 24TC160

Item No.: EDR 24TC160

The minimum purchase order quantity for the product is 2.

172,52 115,74
(Price excluding VAT): 95,66
You Save: 33%
EAN
5414503003355
SKU
EDR 24TC160

Technical specifications

BrandEREA
Commercial Order NumberEDR 24TC160
EAN5414503003355
TypeControl transformer (separate windings)
Alternative for Schneider article
ABL6TS16B

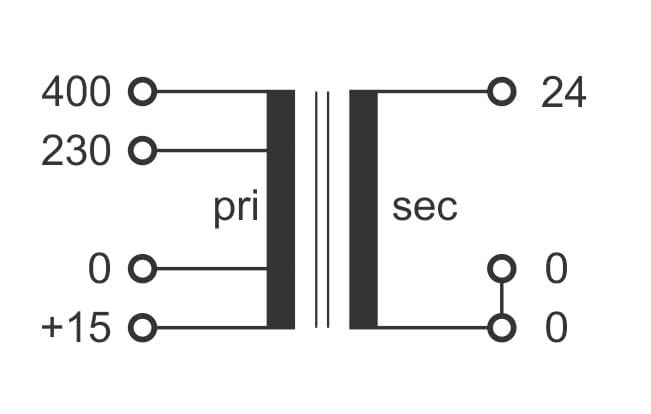

Primary voltage15-0-230-400 Vac
Secondary voltage0-0-24 Vac
Power160VA
Degree of protectionIP20
Dielectric strength to mass (Vac))4500Vac
StandardsEN 61558-2-2
EN 61558-2-6
EN 60742
Max. ambient temperature Ta (°C)50 °C
Temperature classB
ApplicationFor all applications, especially designed for inrush power in control circuits
Protection classPrepared for class II
Efficiency89%
Voltage drop (dU%)8.1%
Pcu (W)13W
Po (W)6.1W
Short-circuit voltage (Ucc %)7.6%

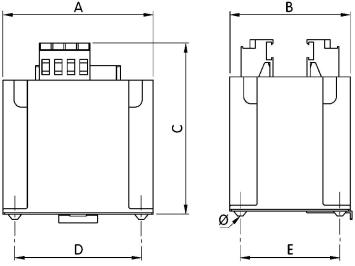

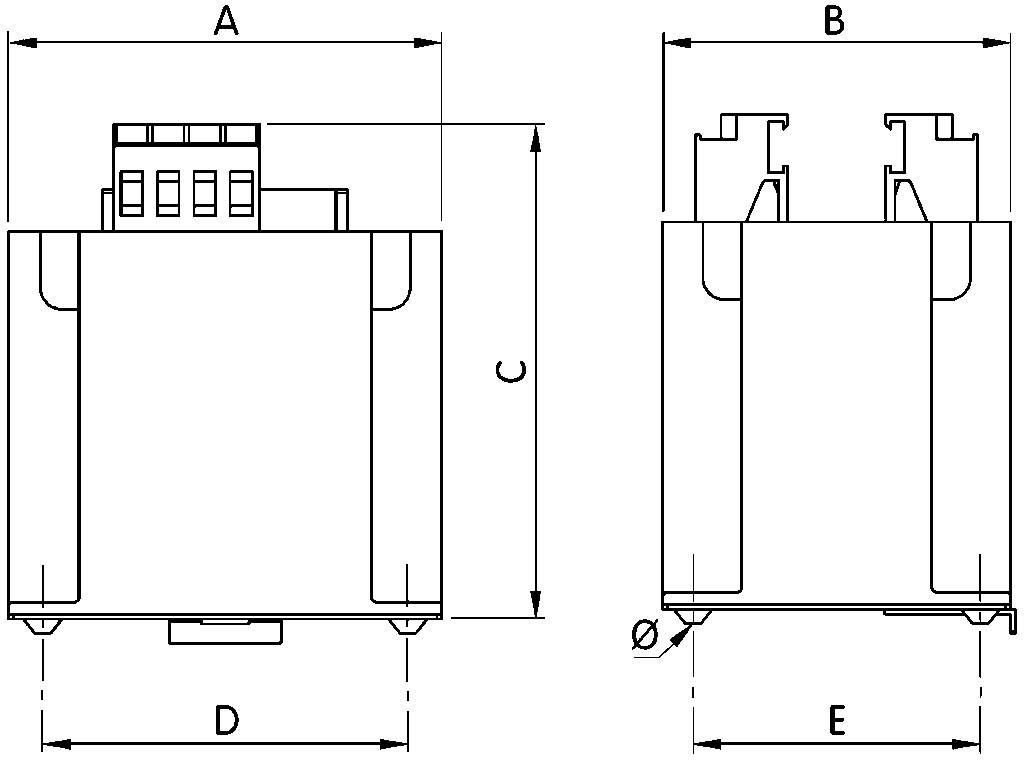

Size A x B x C (mm)101x79x112mm
Size D (mm)84mm
Size E (mm)62mm
Weight2.6kg
Primary connectionScrew terminals 4 mm²
Secondary connectionScrew terminals 4 mm²
FinishVacuum-encapsulated with synthetic resin
Φ (mm)5.5mm


Options

On requestOther voltage and power ratings
With electrostatic screens
With fuses in the secondary circuit
