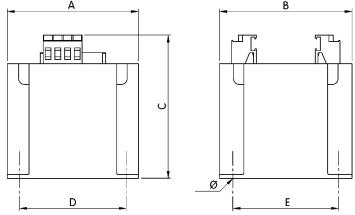

Dimensionering EDR E230TC250

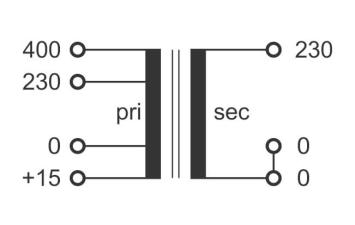

Elektrisch schema E230TC250
Symbol_E_230TC250
E230TC250
Dimensionering EDR E230TC250
Elektrisch schema E230TC250
Symbol_E_230TC250
Pin-it

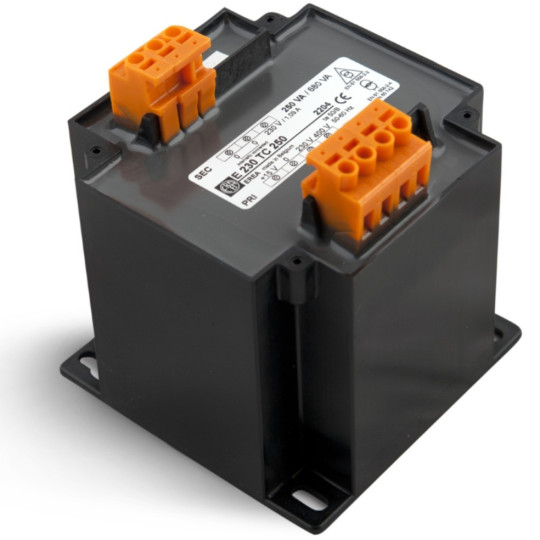

EREA 1 phase control transformer 15-0-230-400V/0-0-230V 250VA E 230TC250

Item No.: E230TC250
EREA

Technical specifications

BrandEREA
Commercial Order NumberE 230TC250
Alternative for Scheider article
ABL6TS25U
EAN5414503002983
ClassSingle-phase control current transformer - IP00 - Upri 15-0-230-400V // Usec 0-0-230V - Power 250VA
Type
Control current transformer (separated windings)
Primary voltage15-0-230-400Vac
Secondary voltage0-0-230Vac
Short circuit voltage
5.1%
Power250VA
Degree of protectionIP20
Voltage drop (dU%)3.3%
Dielectric Strenght (Vac)4500Vac
Dielectric strength to mass (Vac))2500Vac
StandardsEN 61558-2-2
EN 61558-2-6
EN 60742
Max. ambient temperature Ta (°C)50 °C
Temperature classB
ApplicationFor all applications
Protection classPrepared for class II
Efficiency91%
Pcu (W)14.7W
Po (W)10.2W

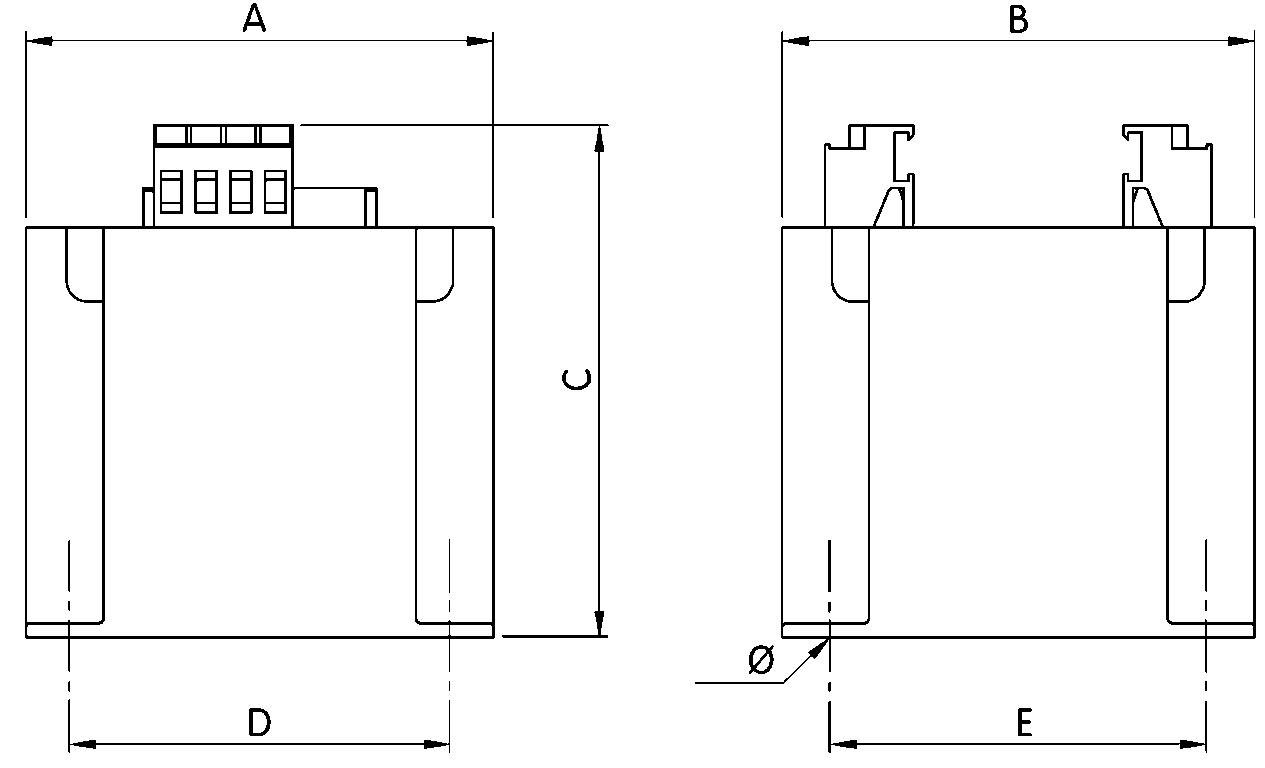

Size A x B x C (mm)102x102x110mm
Size D (mm)84mm
Size E (mm)86mm
Weight3.3kg
Primary connectionScrew terminals 4 mm²
Secondary connectionScrew terminals 4 mm²
FinishVacuum- and pressure- varnish impregnated
Φ (mm)5.5mm


Options

On request
With secondary fuses
With electrostatic screens
€193,91 €145,43
Price incl. VAT: €175,97
You Save: 25%
Request a quote?
EAN
5414503002983
SKU
E230TC250

Technical specifications

BrandEREA
Commercial Order NumberE 230TC250
Alternative for Scheider article
ABL6TS25U
EAN5414503002983
ClassSingle-phase control current transformer - IP00 - Upri 15-0-230-400V // Usec 0-0-230V - Power 250VA
Type
Control current transformer (separated windings)
Primary voltage15-0-230-400Vac
Secondary voltage0-0-230Vac
Short circuit voltage
5.1%
Power250VA
Degree of protectionIP20
Voltage drop (dU%)3.3%
Dielectric Strenght (Vac)4500Vac
Dielectric strength to mass (Vac))2500Vac
StandardsEN 61558-2-2
EN 61558-2-6
EN 60742
Max. ambient temperature Ta (°C)50 °C
Temperature classB
ApplicationFor all applications
Protection classPrepared for class II
Efficiency91%
Pcu (W)14.7W
Po (W)10.2W
Size A x B x C (mm)102x102x110mm
Size D (mm)84mm
Size E (mm)86mm
Weight3.3kg
Primary connectionScrew terminals 4 mm²
Secondary connectionScrew terminals 4 mm²
FinishVacuum- and pressure- varnish impregnated
Φ (mm)5.5mm


Options

On request
With secondary fuses
With electrostatic screens
