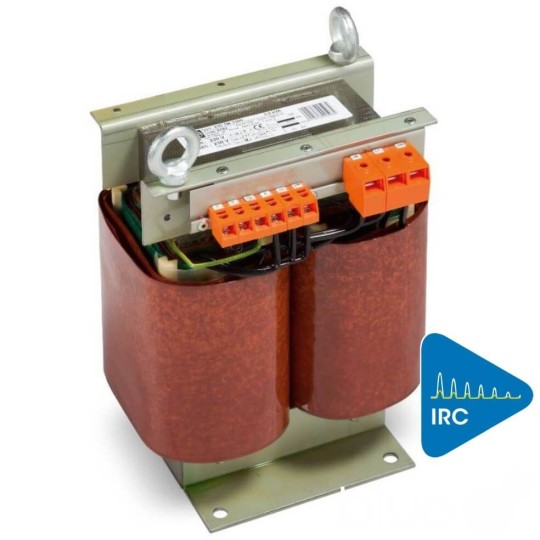

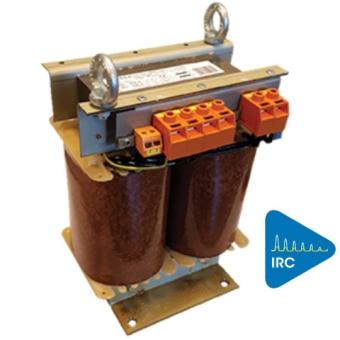

EREA 1 phase medical transformer 230V//230V 2,2kVA 230TMHD2200

Name: EREA 1 phase medical transformer 230V//230V 2,2kVA 230TMHD2200
Brand: EREA
SKU: 230TMHD2200
Price: 1145.76 EUR
Availability: InStock

Item No.: 230TMHD2200

Delivery time: Please contact us for current delivery times

Trillingsdemper

€1.772,83 €1.145,76

(Price excluding VAT): €946,91

You Save: 35%

Request a quote?

Of betaal in termijnen vanaf €38,19 p/m. Meer info

EAN

5414503005977

SKU

230TMHD2200

Technical specifications
Brand	EREA
Commercial Order Number	230TMHD2200
EAN	5414503005977
Class	Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 2200VA - PTC temperature sensor
Primary voltage	230 Vac
Secondary voltage	230 Vac
Power	2.2KVA
Degree of protection	IP00
Voltage drop (dU%)	3%
Dielectric Strenght (Vac)	4500Vac
Dielectric strength to mass (Vac))	2500Vac
Standards	EN 61558-2-15
Max. ambient temperature Ta (°C)	50 °C
Temperature class	B
Application	For all applications in medical purpose rooms
Protection class	Prepared for class I
Efficiency	95.6%
Pcu (W)	70 W
Po (W)	32 W
Size A x B x C (mm)	240x160x225mm
Size D (mm)	200mm
Size E (mm)	137mm
Weight	34kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Finish	Vacuum- and pressure- varnish impregnated
Φ (mm)	11mm

Options
On request	Special versions - PT100 temperature sensor
Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
Option Silent Block (accessory)	SILENT BLOCK 50
