230TC1000

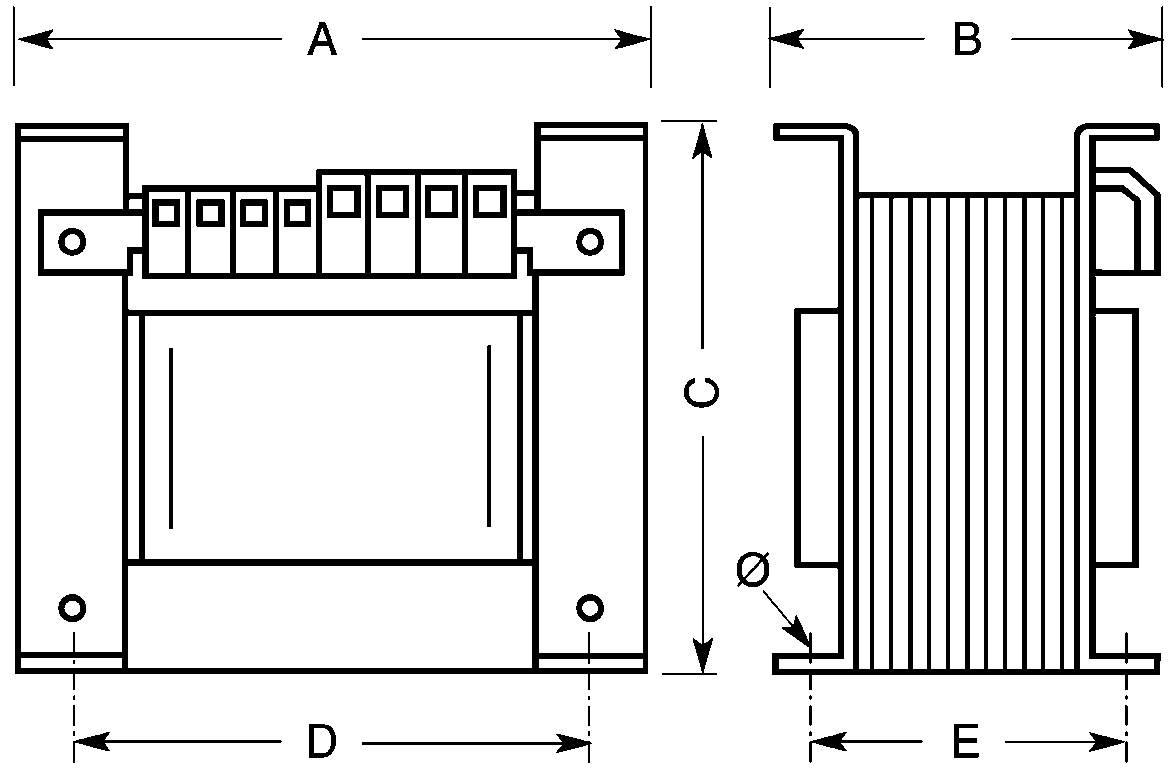

Afmetingen 230TC1000

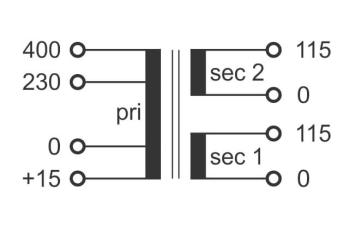

Elektrisch schema 230TC1000

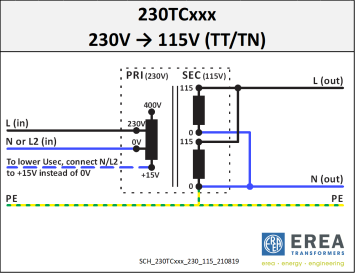

Aansluitschema 230_115_230TC1000

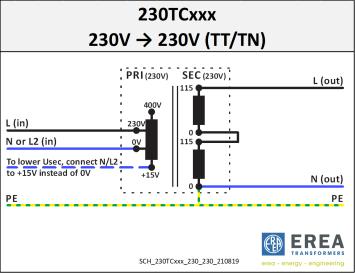

Aansluitschema 230_230_230TC1000

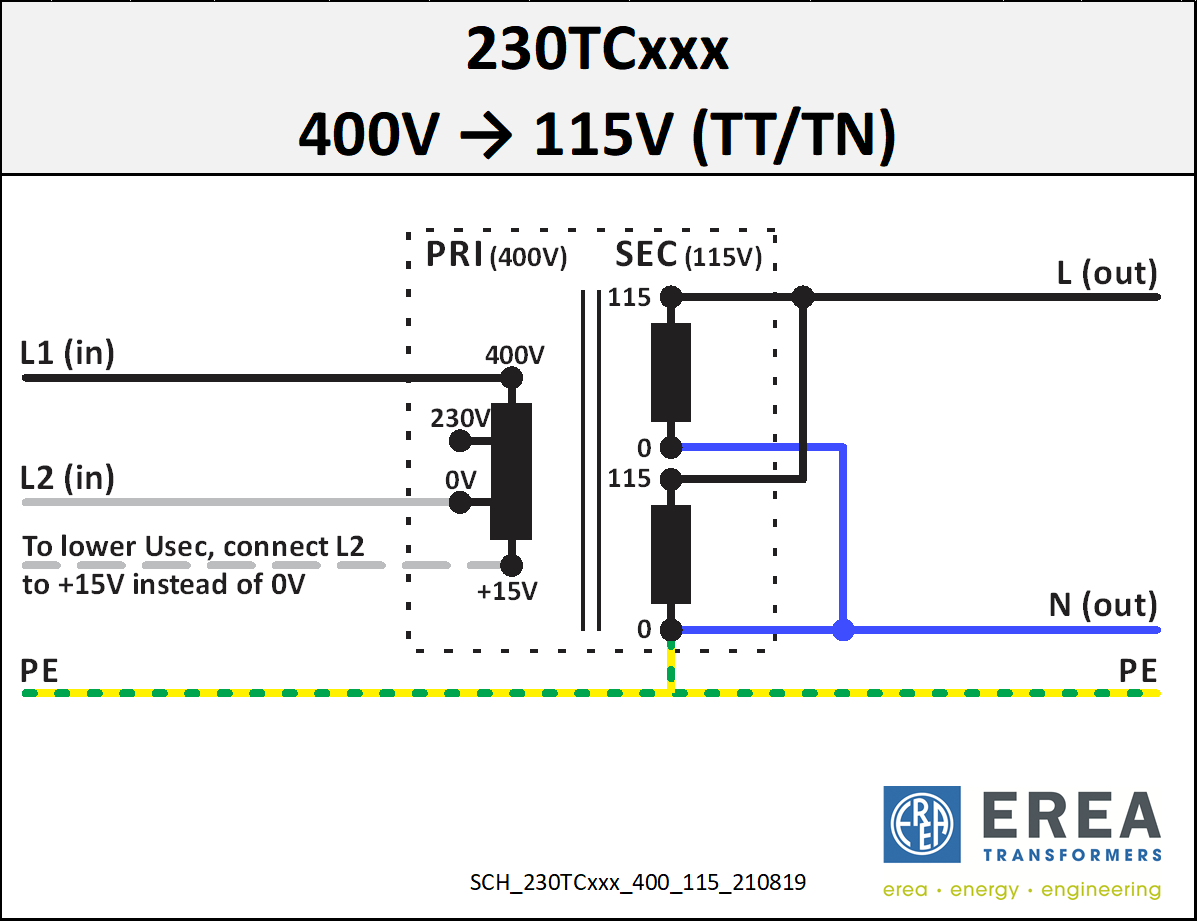

Aansluitschema 400_115_230TC1000
Aansluitschema 400_230_230TC1000
Symbool 230TC1000
230TC1000
Afmetingen 230TC1000
Elektrisch schema 230TC1000
Aansluitschema 230_115_230TC1000
Aansluitschema 230_230_230TC1000
Aansluitschema 400_115_230TC1000
Aansluitschema 400_230_230TC1000
Symbool 230TC1000
Pin-it

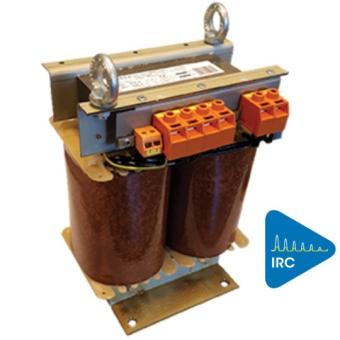

EREA 1 phase control transformer 15-0-230-400V/2x0-115V 1000VA 230TC1000

Item No.: 230TC1000
EREA
€554,97 €416,23
Price incl. VAT: €503,64
You Save: 25%
Request a quote?

Of betaal in termijnen vanaf €13,87 p/m. Meer info

EAN
5414503000132
SKU
230TC1000

Technical specifications

BrandEREA
Commercial Order Number230TC1000
Alternative for Scheider article
ABL6TS100G
EAN5414503000132
ClassSingle-phase control current transformer - IP00 - Upri 15-0-230-400V // Usec 2x 0-115V - Power 1000VA
Type
Control current transformer (separated windings)
Primary voltage15-0-230-400Vac
Secondary voltage2x 0-115Vac
Short-circuit voltage (Ucc %)2.9%
Power1KVA
Degree of protectionIP00
Voltage drop (dU%)3.3%
Dielectric Strenght (Vac)4500Vac
Dielectric strength to mass (Vac))2500Vac
StandardsEN 61558-2-4
EN 60742
Max. ambient temperature Ta (°C)40 °C
Temperature classB
ApplicationFor all applications
Protection classPrepared for class I
Efficiency94%
Pcu (W)33W
Po (W)32W
Size A x B x C (mm)180x120x175mm
Size D (mm)150mm
Size E (mm)90mm
Weight14kg
Primary connectionScrew terminals 2.5mm²
Secondary connectionScrew terminals 2.5mm²
FinishVacuum- and pressure- varnish impregnated
Φ (mm)9mm


Options

On request
Protection class II
Protection rating IP23, IP44, and IP65
Other voltages and power ratings
Connections with sockets and power cords
With fuses
With electrostatic shields
Tropical treatment
Option Housing IP20 (accessory)U22763
Option Housing IP23 (accessory)K23EI180/002
Option Housing IP44 (accessory)K44UI180/010
Option Silent Block (accessory)SILENT BLOCK 20
