230TC6300

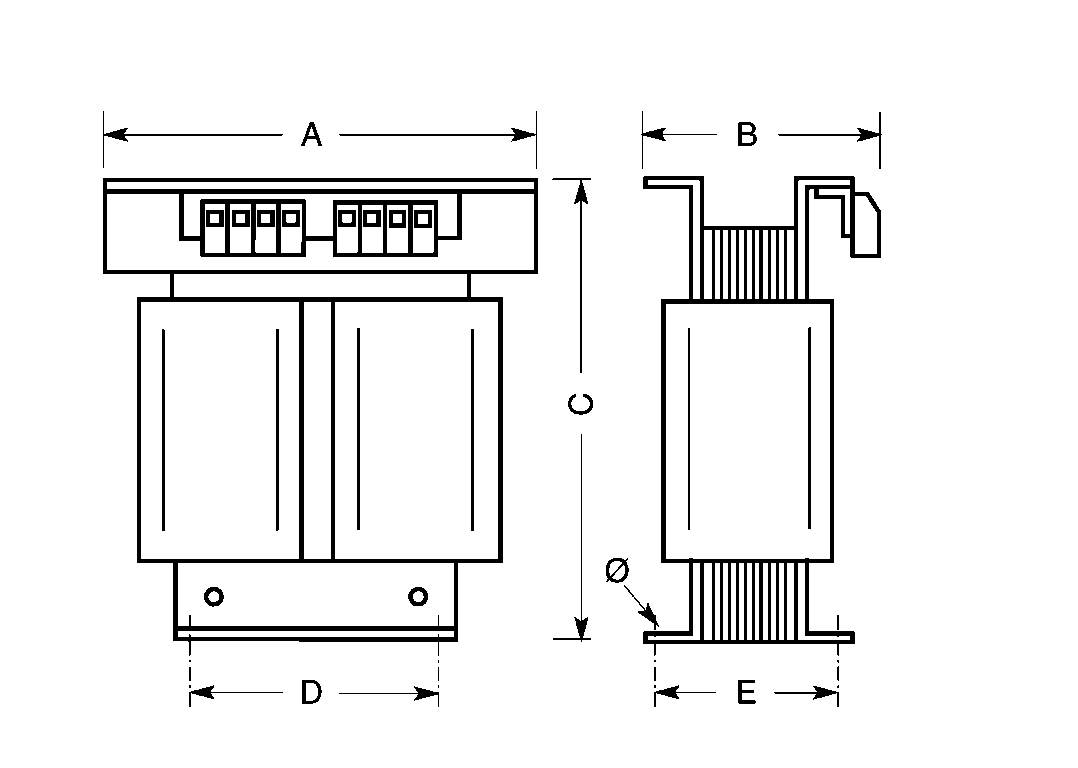

Dimensionering E230TC6300

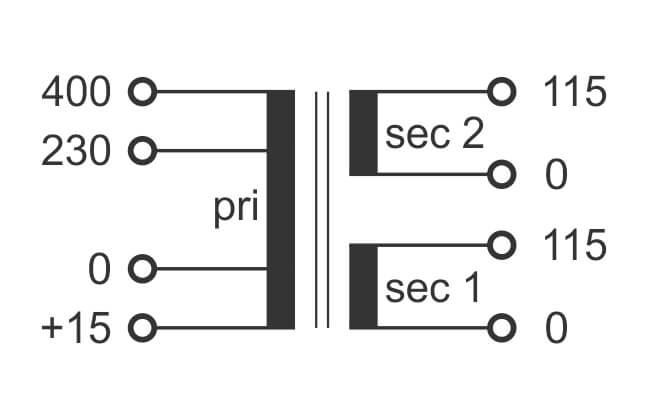

Elektrisch schema E230TC6300

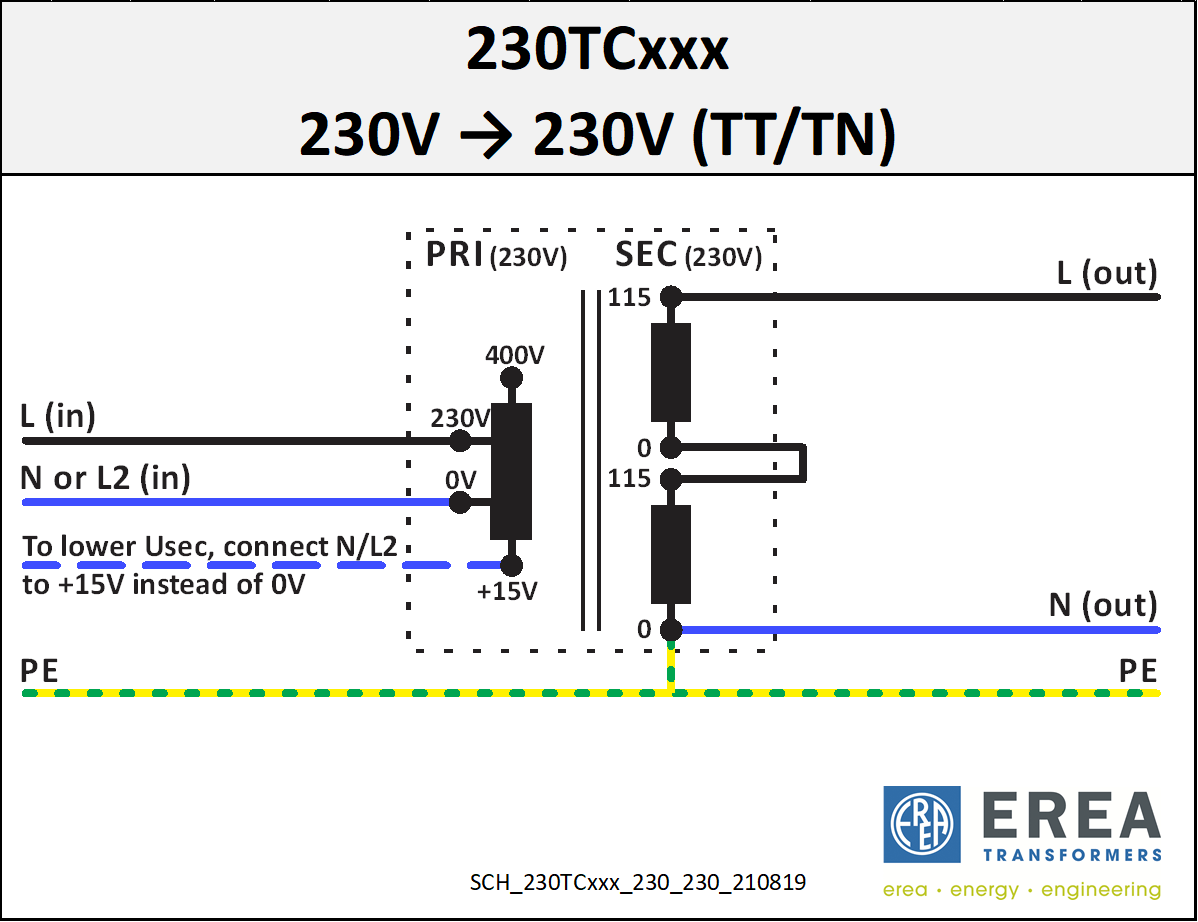

Aansluit schema 230V // 230V 230TC6300

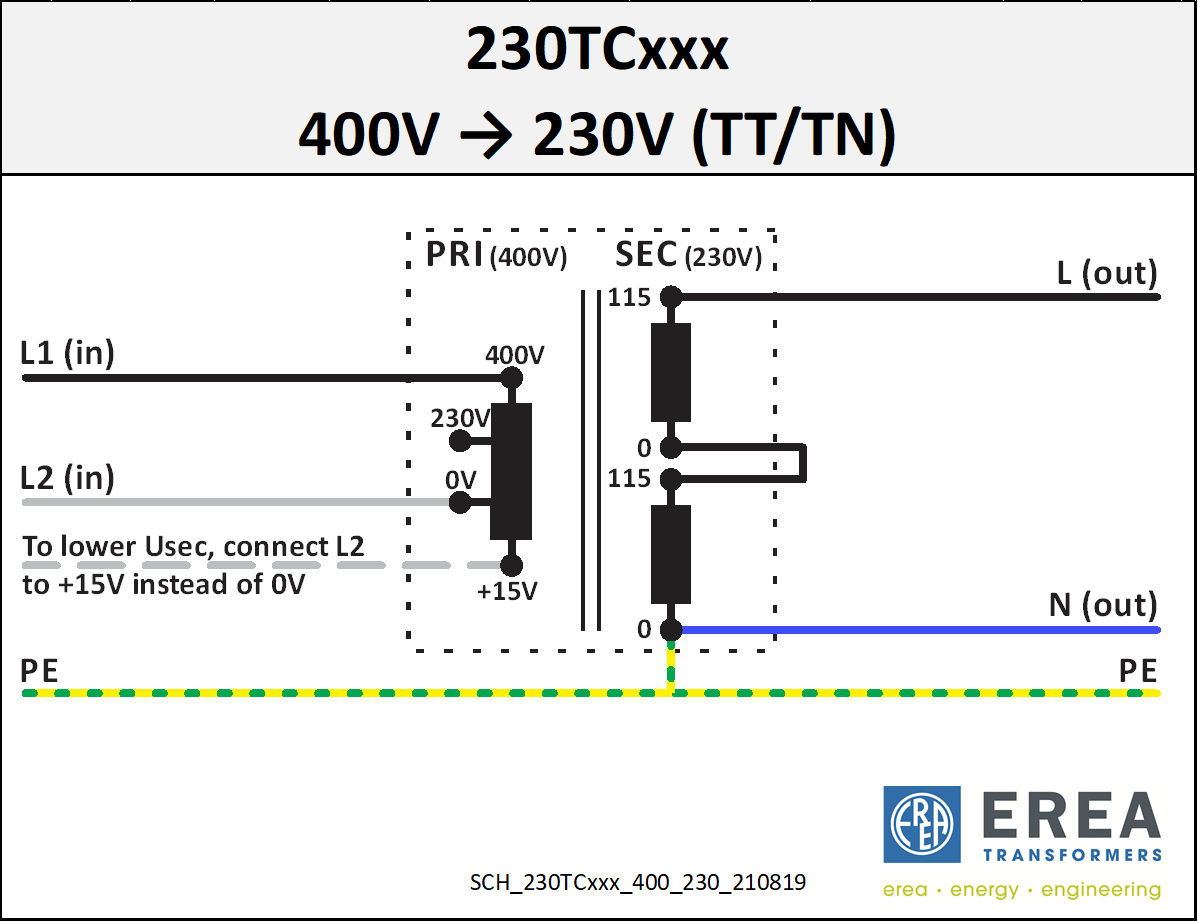

Aansluit schema 400V // 230V 230TC6300

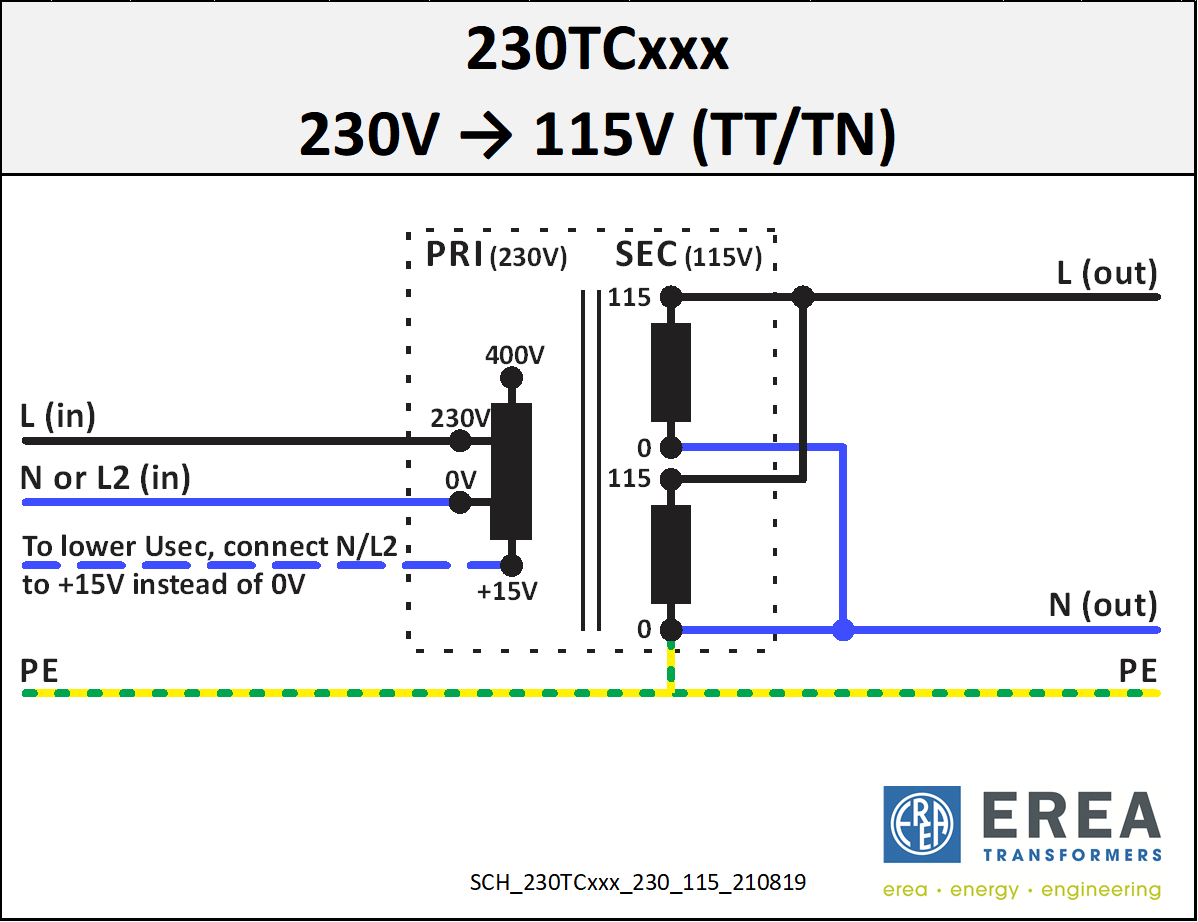

Aansluit schema 230V // 115V 230TC6300

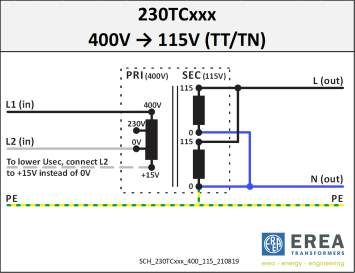

Aansluit schema 400V // 115V 230TC6300
Symbool 230TC6300
230TC6300
Dimensionering E230TC6300
Elektrisch schema E230TC6300
Aansluit schema 230V // 230V 230TC6300
Aansluit schema 400V // 230V 230TC6300
Aansluit schema 230V // 115V 230TC6300
Aansluit schema 400V // 115V 230TC6300
Symbool 230TC6300
Pin-it

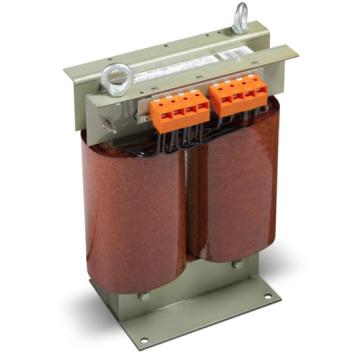

EREA 1 phase control transformer 15-0-230-400V/2x0-115V 6300VA 230TC6300

Item No.: 230TC6300
EREA
€2.717,45 €2.038,09
Price incl. VAT: €2.466,09
You Save: 25%
Request a quote?

Of betaal in termijnen vanaf €67,94 p/m. Meer info

EAN
5414503000187
SKU
230TC6300

Technical specifications

BrandEREA
Commercial Order Number230TC6300
EAN5414503000187
ClassSingle-phase control current transformer - IP00 - Upri 15-0-230-400V // Usec 2x 0-115V - Power 6300VA
Type
Control current transformer (separated windings)
Primary voltage15-0-230-400Vac
Secondary voltage2x 0-115Vac
Short-circuit voltage (Ucc %)2.4%
Power6.3KVA
Degree of protectionIP00
Voltage drop (dU%)2.7%
Dielectric Strenght (Vac)4500Vac
Dielectric strength to mass (Vac))2500Vac
StandardsEN 61558-2-4
EN 60742
Max. ambient temperature Ta (°C)40 °C
Temperature classB
ApplicationFor all applications
Protection classPrepared for class I
Efficiency97%
Pcu (W)166W
Po (W)58W
Size A x B x C (mm)320x190x415mm
Size D (mm)210mm
Size E (mm)150mm
Weight50kg
Primary connectionScrew terminals 10mm²
Secondary connectionScrew terminals 10mm²
FinishVacuum- and pressure- varnish impregnated
Φ (mm)11mm


Options

On request
Protection class II
Protection rating IP23, IP44, and IP65
Other voltages and power ratings
Connections with sockets and power cords
With fuses
With electrostatic shields
Tropical treatment
Option Housing IP20 (accessory)U 222748
Option Housing IP23 (accessory)K23UI240/001
Option Housing IP44 (accessory)K44UI400/010
Option Silent Block (accessory)SILENT BLOCK 50
