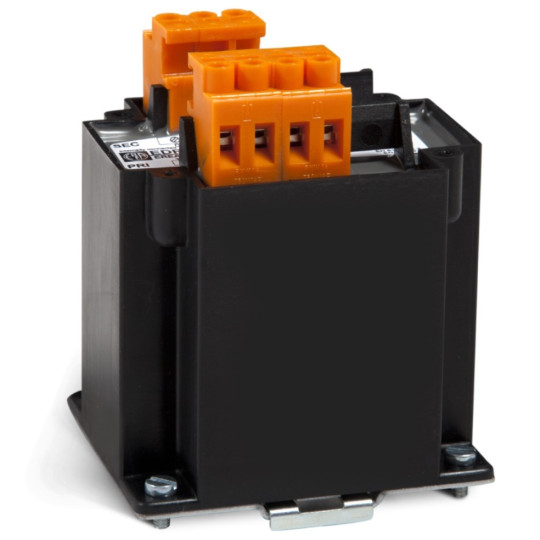

EREA 1 phase control transformer 15-0-230-400V/0-0-230V 40VA EDR 230TC40

Name: EREA 1 phase control transformer 15-0-230-400V/0-0-230V 40VA EDR 230TC40
Brand: EREA
SKU: EDR 230TC40
Price: 72.41 EUR
Availability: InStock

Item No.: EDR 230TC40

The minimum purchase order quantity for the product is 2.

€107,92 €72,41

(Price excluding VAT): €59,84

You Save: 33%

Request a quote?

EAN

5414503003294

SKU

EDR 230TC40

Technical specifications
Brand	EREA
Commercial Order Number	EDR 230TC40
EAN	5414503003294
Type	Control transformer (separated windings)
Alternative for Schneider article	ABL6TS04U

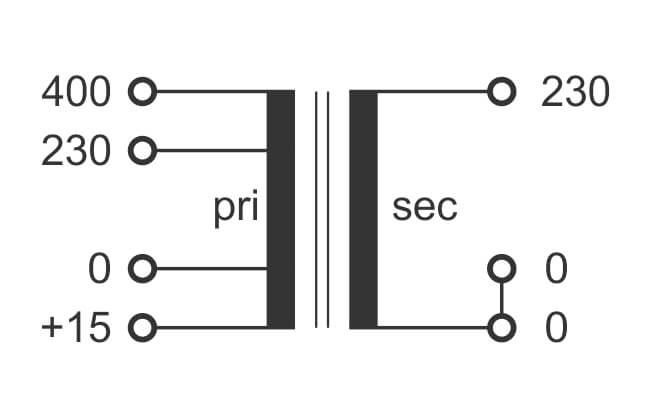

Primary voltage	15-0-230-400 Vac
Secondary voltage	0-0-230 Vac
Power	40VA
Degree of protection	IP20
Dielectric strength to mass (Vac))	4500Vac
Standards	EN 61558-2-2 EN 61558-2-6 EN 60742
Max. ambient temperature Ta (°C)	50 °C
Temperature class	B
Application	For all applications, especially designed for inrush power in control circuits
Protection class	Prepared for class II
Efficiency	87%
Voltage drop (dU%)	6.2%
Pcu (W)	3.2W
Po (W)	3.3W
Short-circuit voltage (Ucc %)	5.6%

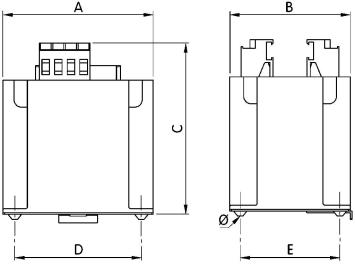

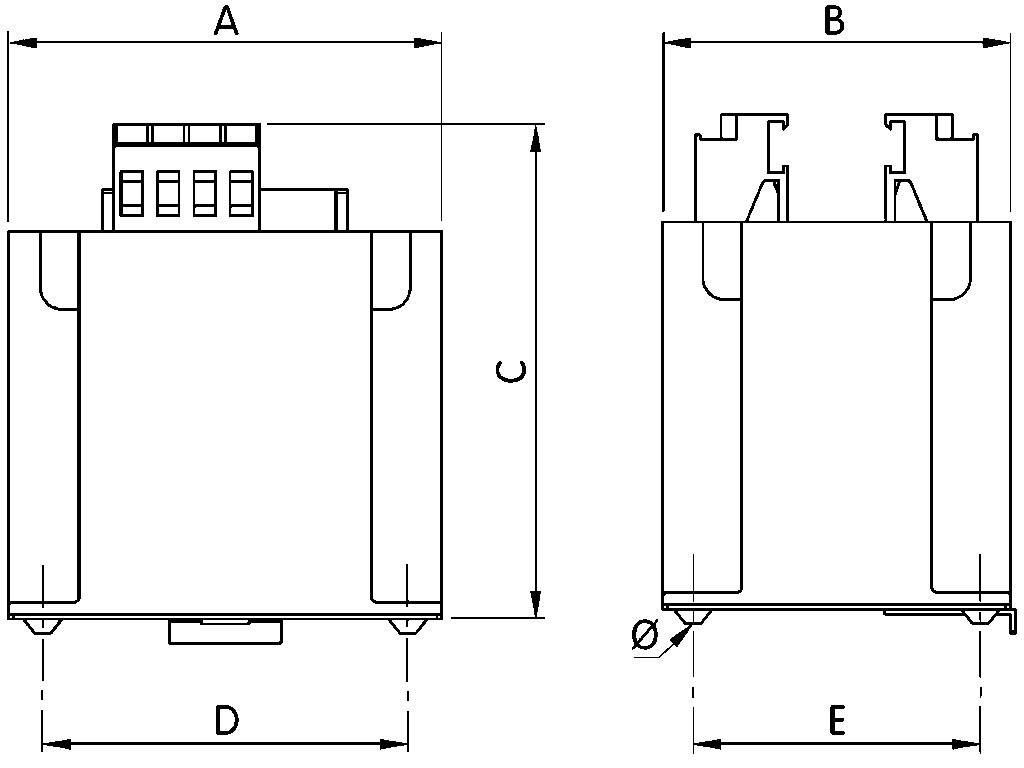

Size A x B x C (mm)	80x70x85mm
Size D (mm)	67mm
Size E (mm)	56mm
Weight	1.5kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Finish	Vacuum-encapsulated with synthetic resin
Φ (mm)	4.5mm

Options
On request	Other voltage and power ratings With electrostatic screens With fuses in the secondary circuit
