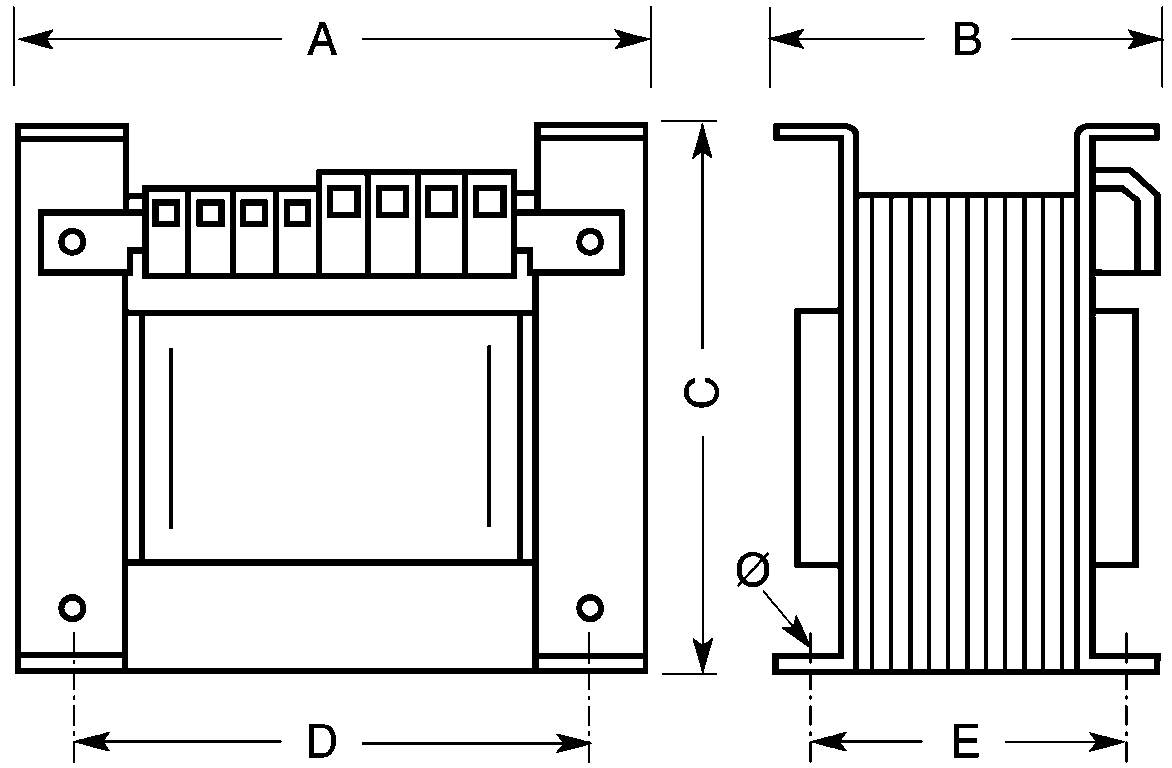

Dimensionering E230TC1600

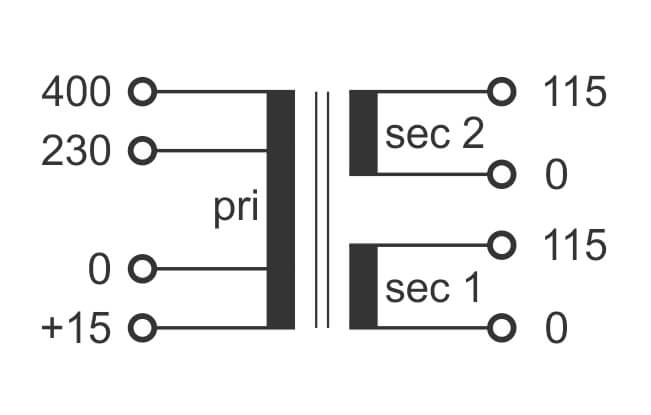

Elektrisch schema E230TC1600

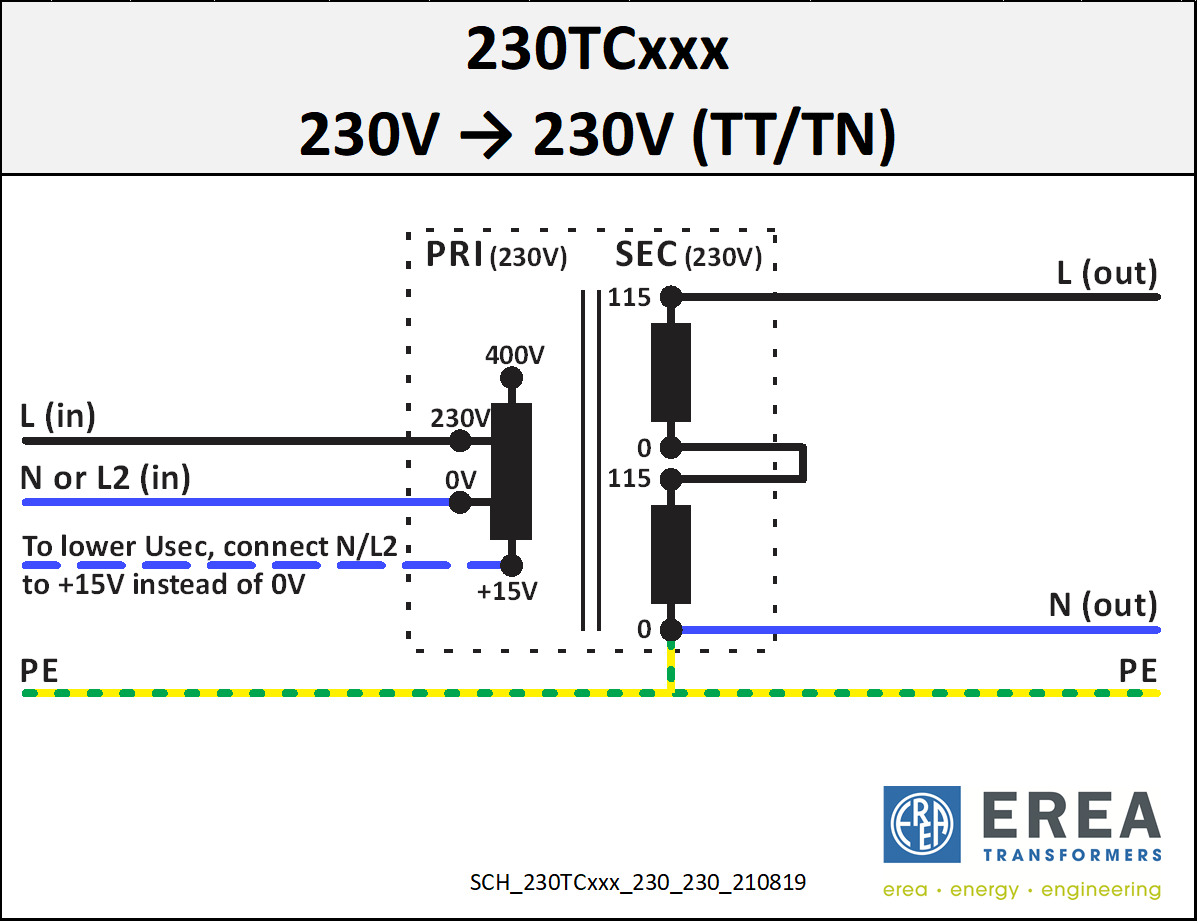

Aansluit schema 230V // 230V 230TC1600

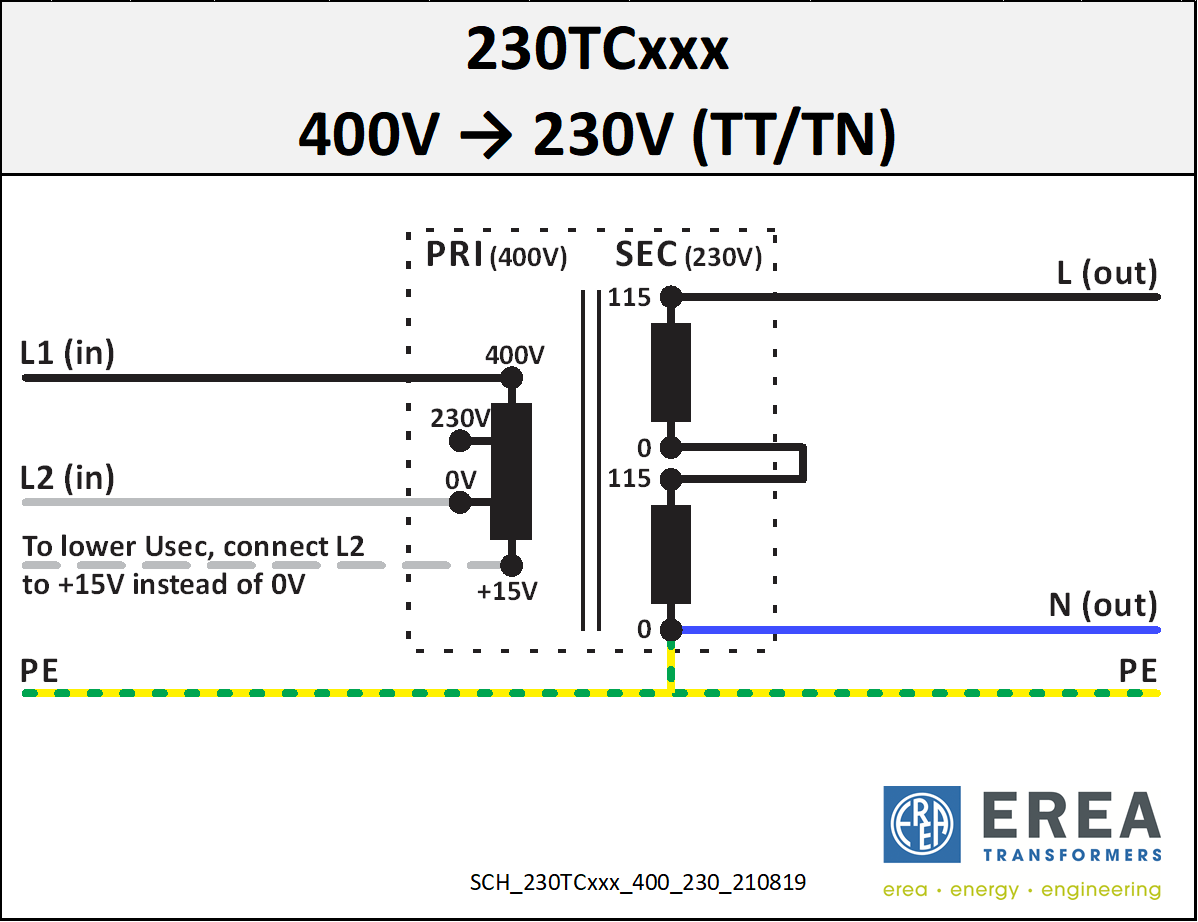

Aansluit schema 400V // 230V 230TC1600

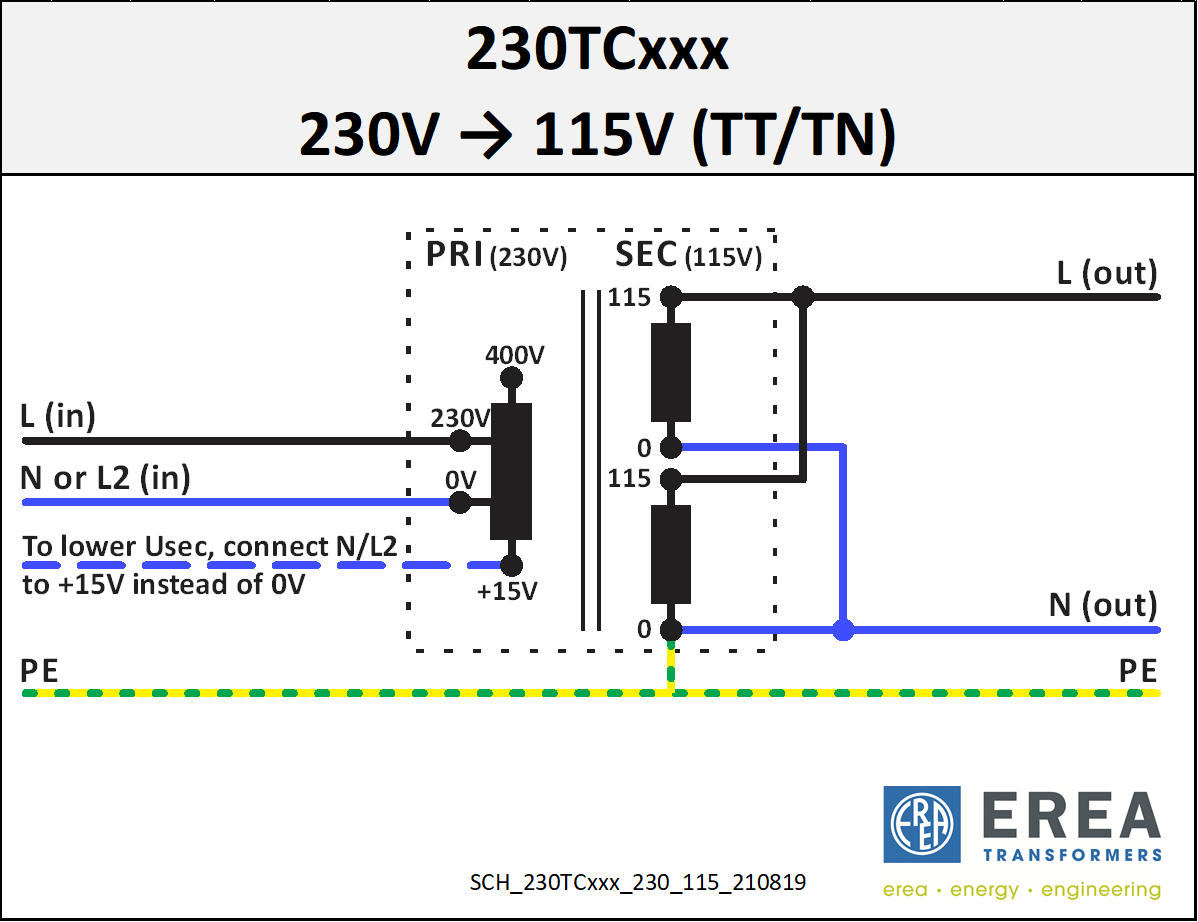

Aansluit schema 230V // 115V 230TC1600

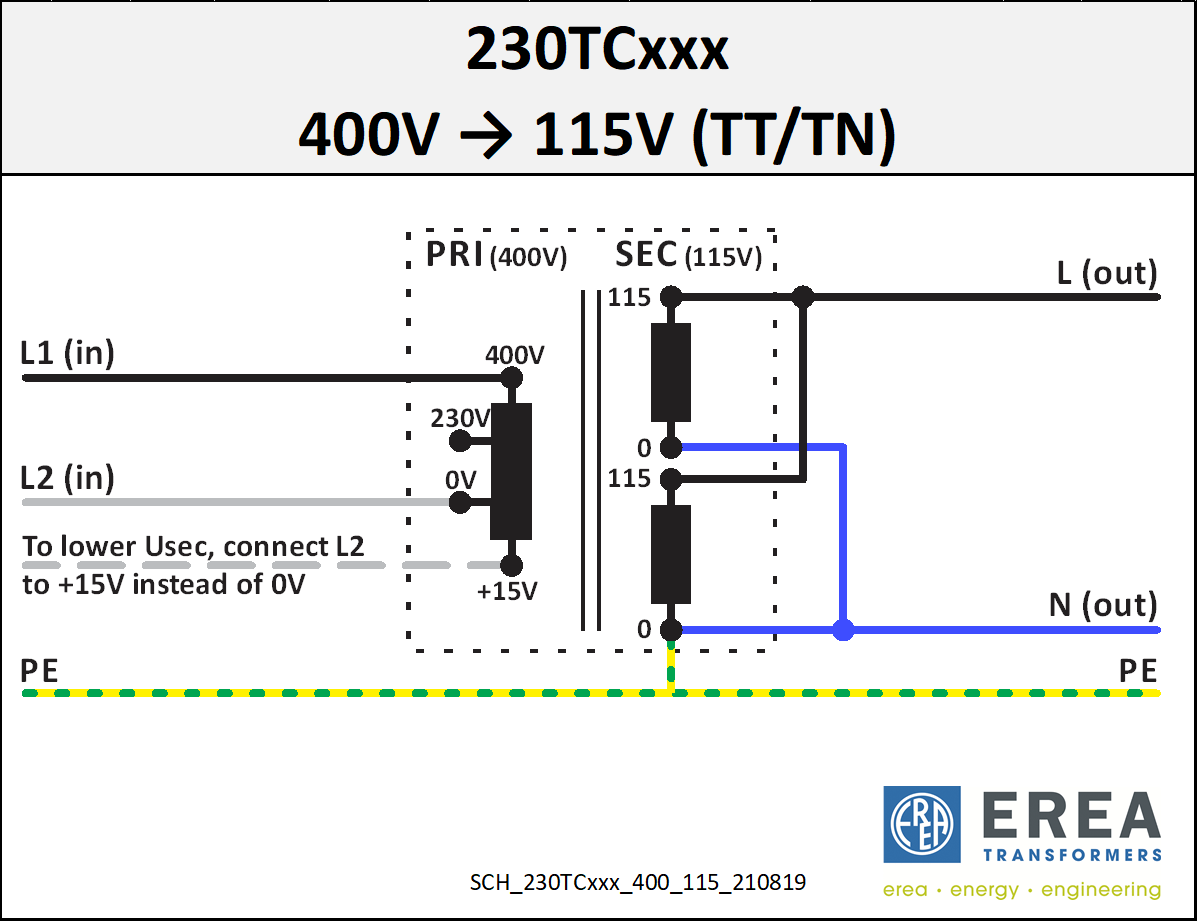

Aansluit schema 400V // 115V 230TC1600
Symbool 230TC1600
230TC1600
Dimensionering E230TC1600
Elektrisch schema E230TC1600
Aansluit schema 230V // 230V 230TC1600
Aansluit schema 400V // 230V 230TC1600
Aansluit schema 230V // 115V 230TC1600
Aansluit schema 400V // 115V 230TC1600
Symbool 230TC1600
Pin-it

EREA 1 phase control transformer 15-0-230-400V/2x0-115V 1600VA 230TC1600

Item No.: 230TC1600
EREA
€864,75 €648,56
Price incl. VAT: €784,76
You Save: 25%
Request a quote?

Of betaal in termijnen vanaf €21,62 p/m. Meer info

EAN
5414503000156
SKU
230TC1600

Technical specifications

BrandEREA
Commercial Order Number230TC1600
Alternative for Scheider article
ABL6TS160G
EAN5414503000156
ClassSingle-phase control current transformer - IP00 - Upri 15-0-230-400V // Usec 2x 0-115V - Power 1600VA
Type
Control current transformer (separated windings)
Primary voltage15-0-230-400Vac
Secondary voltage2x 0-115Vac
Short-circuit impedance Ucc (%)2,6 %
Power1,6KVA
Degree of protectionIP00
Voltage drop (dU%)2,7%
Dielectric Strenght (Vac)4500Vac
Dielectric strength to mass (Vac))2500Vac
StandardsEN 61558-2-2
EN 61558-2-6
EN 60742
Max. ambient temperature Ta (°C)40 °C
Temperature classB
ApplicationAlle toepassingen
Protection classVoorbereid voor beschermingsklasse I
Efficiency95%
Pcu (W)44W
Po (W)48W
Size A x B x C (mm)240x130x225mm
Size D (mm)200mm
Size E (mm)107mm
Weight22kg
Primary connectionScrew terminals 4mm²
Secondary connectionScrew terminals 4mm²
FinishVacuum- and pressure- varnish impregnated
Φ (mm)11mm


Options

On request
Protection class II
Protection rating IP23, IP44, and IP65
Other voltages and power ratings
Connections with sockets and power cords
With fuses
With electrostatic shields
Tropical treatment
Option Housing IP20 (accessory)U22757
Option Housing IP23 (accessory)K23EI240/003
Option Housing IP44 (accessory)K44UI240/010
Option Silent Block (accessory)SILENT BLOCK 20
