EREA 1 phase control transformer 15-0-230-400V/0-0-230V 630VA E 230TC630

Item No.: E 230TC630
394,79 296,09
Price incl. VAT: 358,27
You Save: 25%

Of betaal in termijnen vanaf 9,87 p/m. Meer info

EAN
5414503003003
SKU
E 230TC630

Technical specifications

BrandEREA
Commercial Order NumberE 230TC630
Alternative for Scheider article
ABL6TS63U
EAN5414503003003
ClassSingle-phase control current transformer - IP00 - Upri 15-0-230-400V // Usec 0-0-230V - Power 630VA
Type
Control current transformer (separated windings)
Primary voltage15-0-230-400Vac
Secondary voltage0-0-230Vac
Short circuit voltage
3.2%
Power630VA
Degree of protectionIP20
Voltage drop (dU%)3.6%
Dielectric Strenght (Vac)4500Vac
Dielectric strength to mass (Vac))2500Vac
StandardsEN 61558-2-2
EN 61558-2-6
EN 60742
Max. ambient temperature Ta (°C)50 °C
Temperature classB
ApplicationFor all applications
Protection classPrepared for class II
Efficiency94%
Pcu (W)22W
Po (W)20.8W

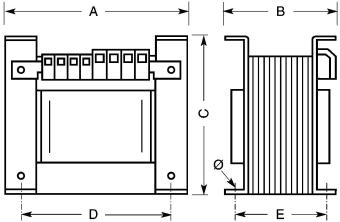

Size A x B x C (mm)160x116x157mm
Size D (mm)130mm
Size E (mm)95mm
Weight8.7kg
Primary connectionScrew terminals 4 mm²
Secondary connectionScrew terminals 4 mm²
FinishVacuum- and pressure- varnish impregnated
Φ (mm)6mm


Options

On requestProtection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and power ratings
Connections with sockets and power cords
With fuses
With electrostatic shields
Tropicalized (Tropical protection treatment)
