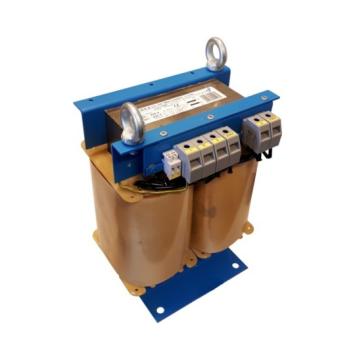

EREA 1 phase medical transformer 230V//230V 5kVA-BTE 230TMHD5000/BTE

Name: EREA 1 phase medical transformer 230V//230V 5kVA-BTE 230TMHD5000/BTE
Brand: EREA
SKU: 230TMHD5000/BTE
Price: 2551.47 EUR
Availability: InStock

Item No.: 230TMHD5000/BTE

Delivery time: Please contact us for current delivery times

Trillingsdemper

€3.947,87 €2.551,47

(Price excluding VAT): €2.108,65

You Save: 35%

Request a quote?

Of betaal in termijnen vanaf €85,05 p/m. Meer info

EAN

5414503103642

SKU

230TMHD5000/BTE

Technical specifications
Brand	EREA
Commercial Order Number	230TMHD5000/BTE
EAN	5414503103642
Class	Single-phase isolating transformer energy-efficient for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 5000VA - PTC temperature sensor
Type	Isolating transformer (separate windings)
Primary voltage	230 Vac
Secondary voltage	230 Vac
Power	5KVA
Degree of protection	IP00
Dielectric Strenght (Vac)	4500Vac
Dielectric strength to mass (Vac))	2500Vac
Standards	EN 61558-2-15
Max. ambient temperature Ta (°C)	50 °C
Temperature class	B
Application	For all applications in medical purpose rooms
Protection class	Prepared for class I
Voltage drop (dU%)	2.3%
Efficiency	97.5%
Pcu (W)	107 W
Po (W)	19 W
Size A x B x C (mm)	280x200x365mm
Size D (mm)	180mm
Size E (mm)	143mm
Weight	56kg
Primary connection	Screw terminals
Secondary connection	Screw terminals
Finish	Vacuum- and pressure- varnish impregnated
Φ (mm)	11mm

Options
On request	Special versions - PT100 temperature sensor
Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
Option Silent Block (accessory)	SILENT BLOCK 50
