230TC4000

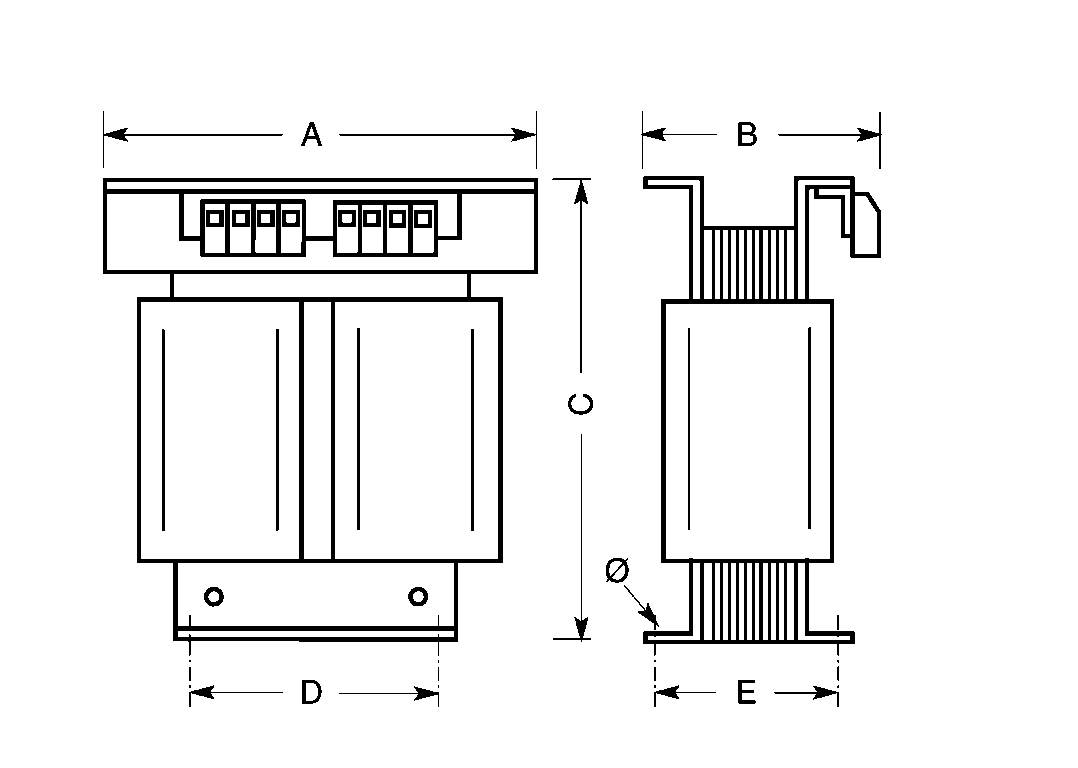

Dimensionering E230TC4000

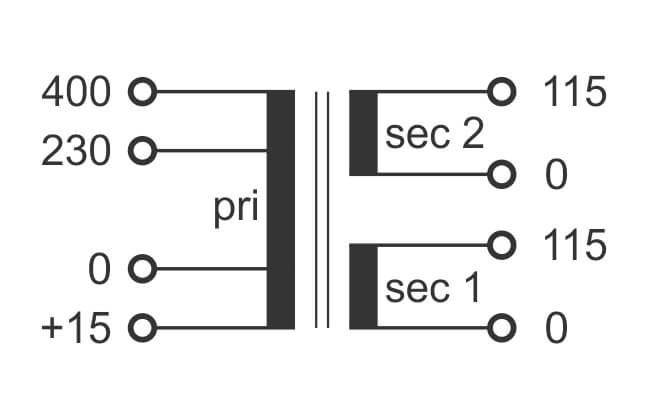

Elektrisch schema E230TC4000

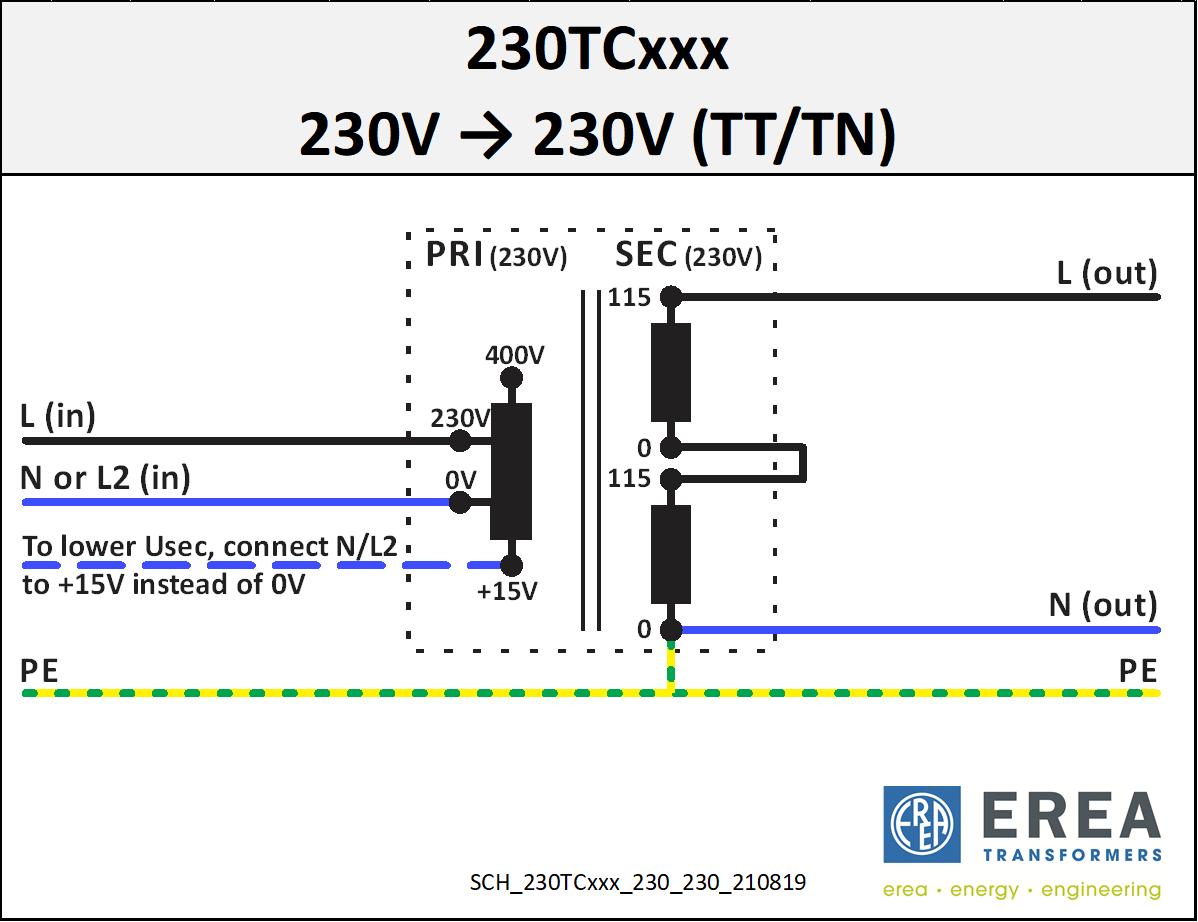

Aansluit schema 230V // 230V 230TC4000

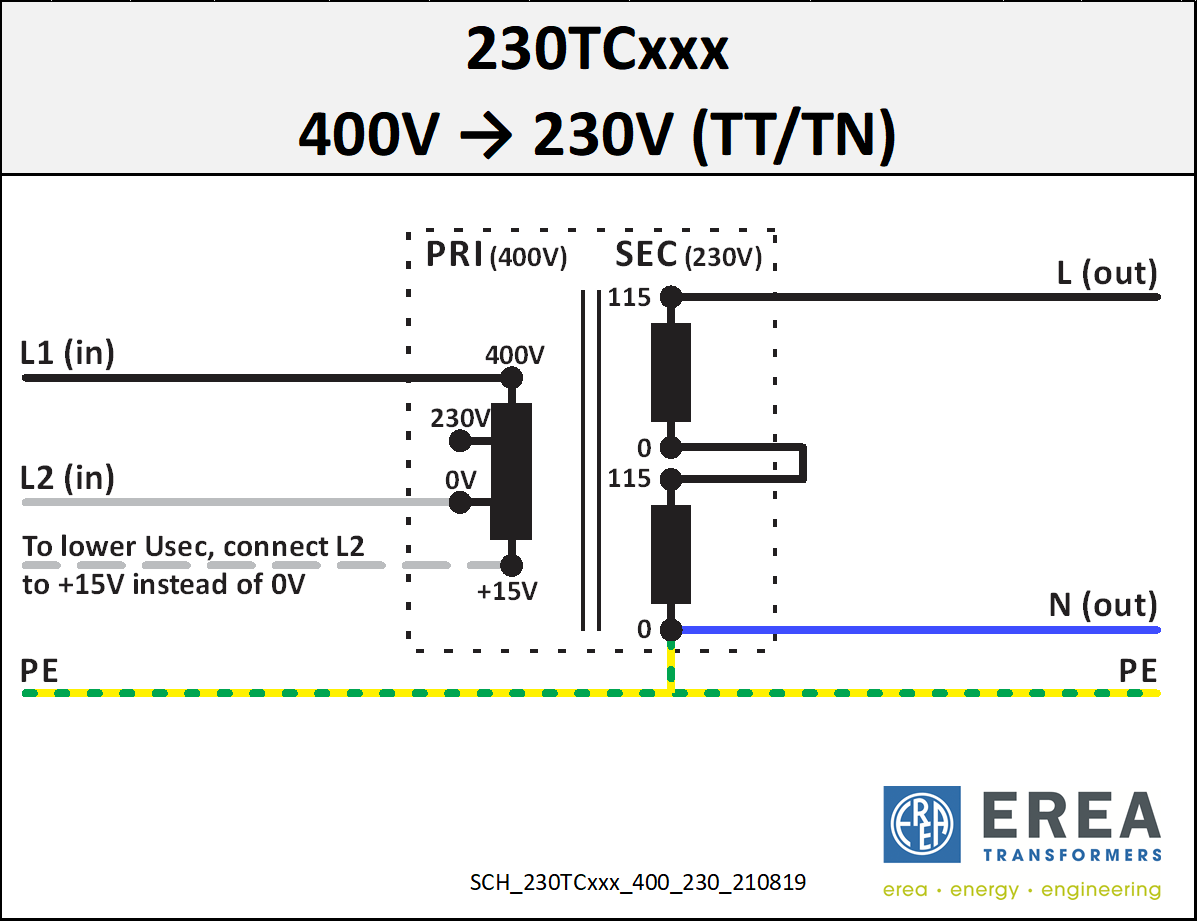

Aansluit schema 400V // 230V 230TC4000

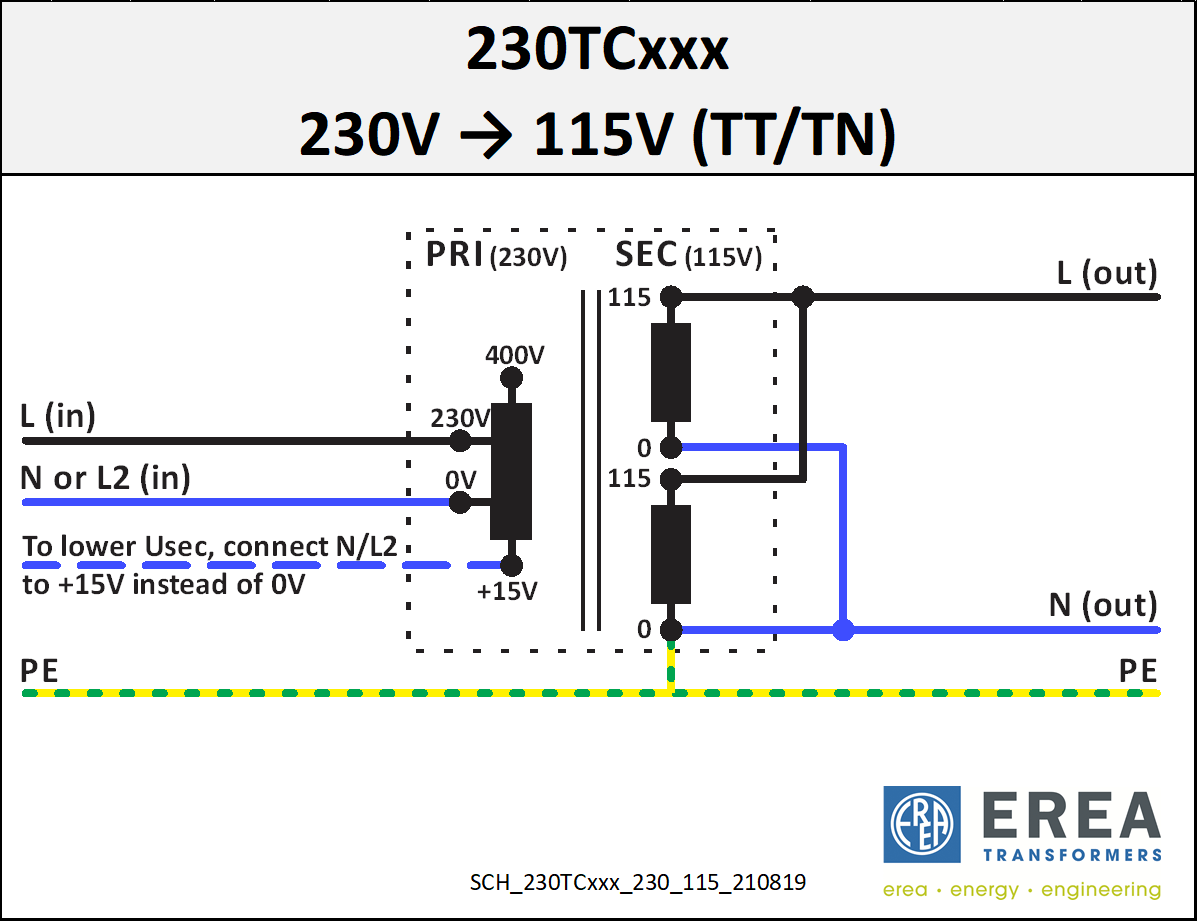

Aansluit schema 230V // 115V 230TC4000

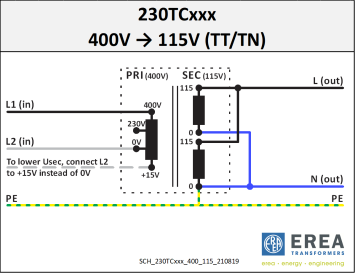

Aansluit schema 400V // 115V 230TC4000
Symbool 230TC4000
230TC4000
Dimensionering E230TC4000
Elektrisch schema E230TC4000
Aansluit schema 230V // 230V 230TC4000
Aansluit schema 400V // 230V 230TC4000
Aansluit schema 230V // 115V 230TC4000
Aansluit schema 400V // 115V 230TC4000
Symbool 230TC4000
Pin-it

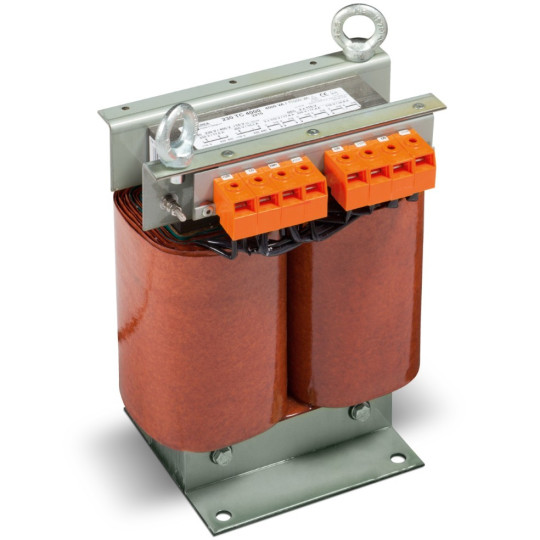

EREA 1 phase control transformer 15-0-230-400V/2x0-115V 4000VA 230TC4000

Item No.: 230TC4000
EREA
€1.734,95 €1.301,21
Price incl. VAT: €1.574,46
You Save: 25%
Request a quote?

Of betaal in termijnen vanaf €43,37 p/m. Meer info

EAN
5414503000170
SKU
230TC4000

Technical specifications

BrandEREA
Commercial Order Number230TC4000
EAN5414503000170
ClassSingle-phase control current transformer - IP00 - Upri 15-0-230-400V // Usec 2x 0-115V - Power 4000VA
Type
Control current transformer (separated windings)
Primary voltage15-0-230-400Vac
Secondary voltage2x 0-115Vac
Short-circuit voltage (Ucc %)2.5%
Power4KVA
Degree of protectionIP00
Voltage drop (dU%)2.9%
Dielectric Strenght (Vac)4500Vac
Dielectric strength to mass (Vac))2500Vac
StandardsEN 61558-2-4
EN 60742
Max. ambient temperature Ta (°C)40 °C
Temperature classB
ApplicationFor all applications
Protection classPrepared for class I
Efficiency96%
Pcu (W)118W
Po (W)50W
Size A x B x C (mm)240x180x310mm
Size D (mm)150mm
Size E (mm)140mm
Weight35kg
Primary connectionScrew terminals 10mm²
Secondary connectionScrew terminals 10mm²
FinishVacuum- and pressure- varnish impregnated
Φ (mm)11mm


Options

On request
Protection class II
Protection rating IP23, IP44, and IP65
Other voltages and power ratings
Connections with sockets and power cords
With fuses
With electrostatic shields
Tropical treatment
Option Housing IP20 (accessory)U222751
Option Housing IP23 (accessory)K23UI180/001
Option Housing IP44 (accessory)K44UI300/010
Option Silent Block (accessory)SILENT BLOCK 50
