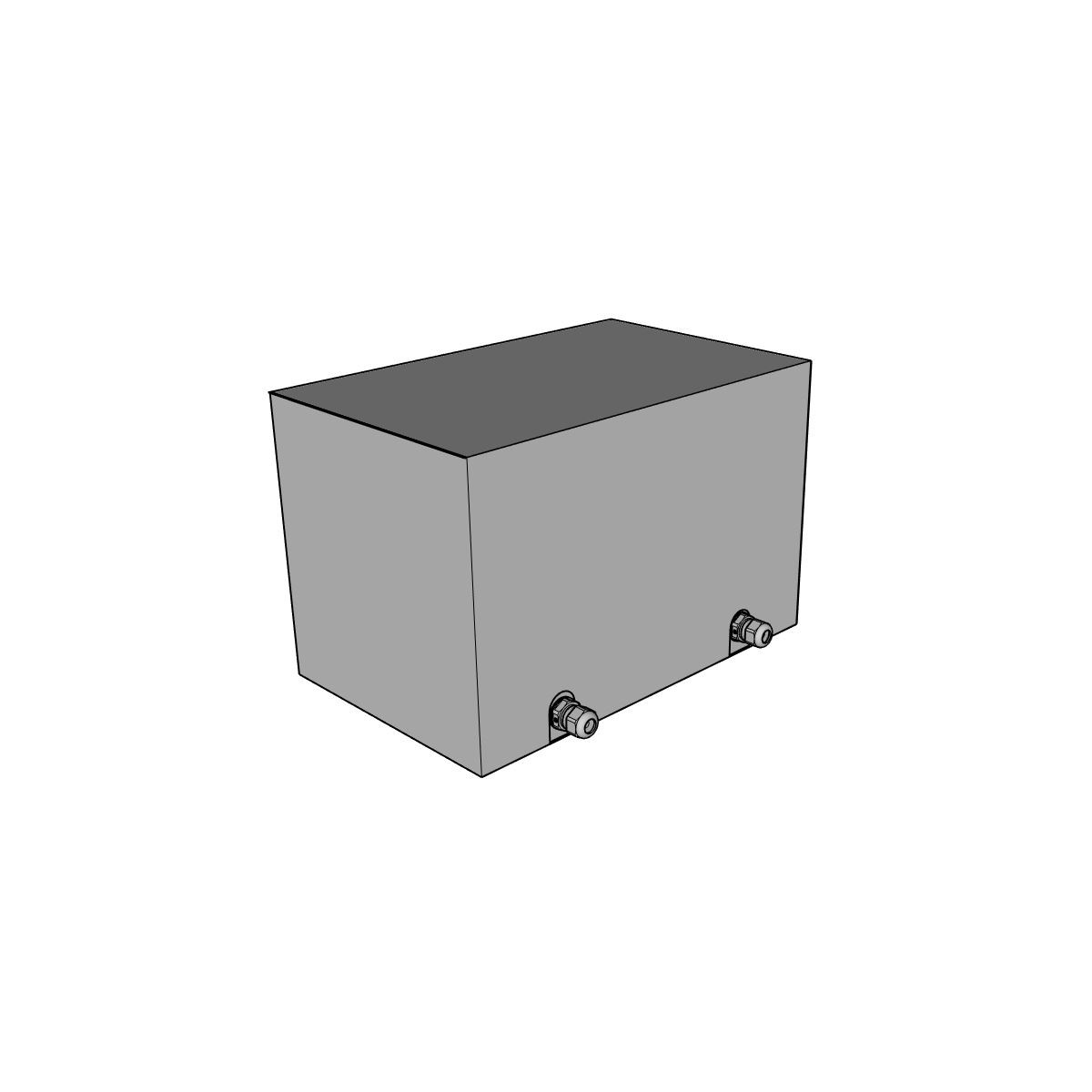

EREA 3 phase isolation transformer 230-400V//230V-400V20kVA SPT20000/BTE/IP65

Item No.: SPT20000/BTE/IP65

Delivery time: Please contact us for current delivery times

12.896,36
(Price excluding VAT): 10.658,15

Of betaal in termijnen vanaf 429,88 p/m. Meer info

EAN
5414503119230
SKU
SPT20000/BTE/IP65

Technical specifications

Brand EREA
Commercial Order Number SPT20000/BTE/IP65
EAN 5414503119230
Series Blue e3
Energy efficient Yes
Class Three-phase isolating transformer
Primary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 20000VA (20KVA)
Voltage drop (dU%) 1.33%
Dielectric strength referred to frame (Vac) 2500 Vac
Dielectric strength to mass (Vac) 4500 Vac
Degree of protection IP65
Standards

EN 61558-2-4

Maximum ambient temperatur ta (°C) 40 °C
Application For Industrial Applications
Protection class Prepared for class I
Temperature Class F
Efficiency  98%
Pcu (W) 451 W
Po (W) 176 W
Size A x B x C (mm) 539x429x433mm
Weight 212kg
Primary connection Screw terminals 4 mm²
Secondary connection Screw terminals 4 mm²
Finish Vacuum and pressure varnish impregnated
