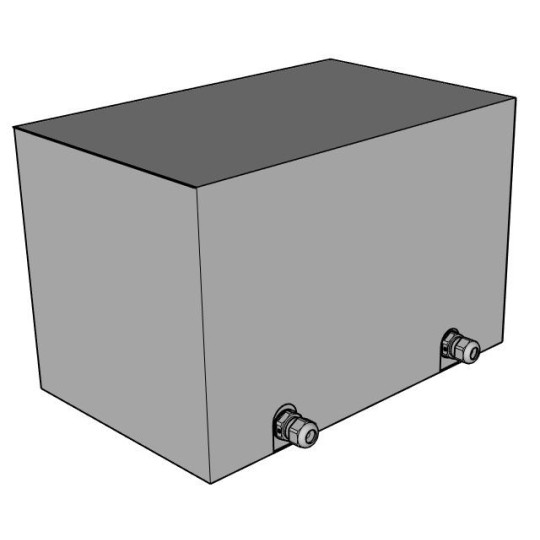

EREA 3 phase separating transformer 400V//230V-400V 10kVA SPT10000/D/IP65

Item No.: SPT10000/D/IP65

Delivery time: Please contact us for current delivery times

(Price excluding VAT) 6.989,90
8.457,78
Of betaal in termijnen vanaf 281,93 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number SPT10000/D/IP65
EAN 5414503113702
Primary voltage 3x 400 Vac ∆
Secondary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 10000VA (10KVA)
Dielectric strength referred to frame (Vac) 2500 Vac
Dielectric strength to mass (Vac) 4500 Vac
Degree of protection IP65
Standards

EN 60726
EN 60076

Maximum ambient temperatur ta (°C) 40 °C
Application For Industrial Applications
Protection class Prepared for class I
Temperature Class F
Voltage drop (dU%) 3.4%
Efficiency  96%
Pcu (W) 700 W
Po (W) 135 W
Size A x B x C (mm) 539x259x433mm
Weight 111kg
Primary connection Nut fastening M8
Secondary connection Nut fastening M8
Finish Vacuum and pressure varnish impregnated
