Overview

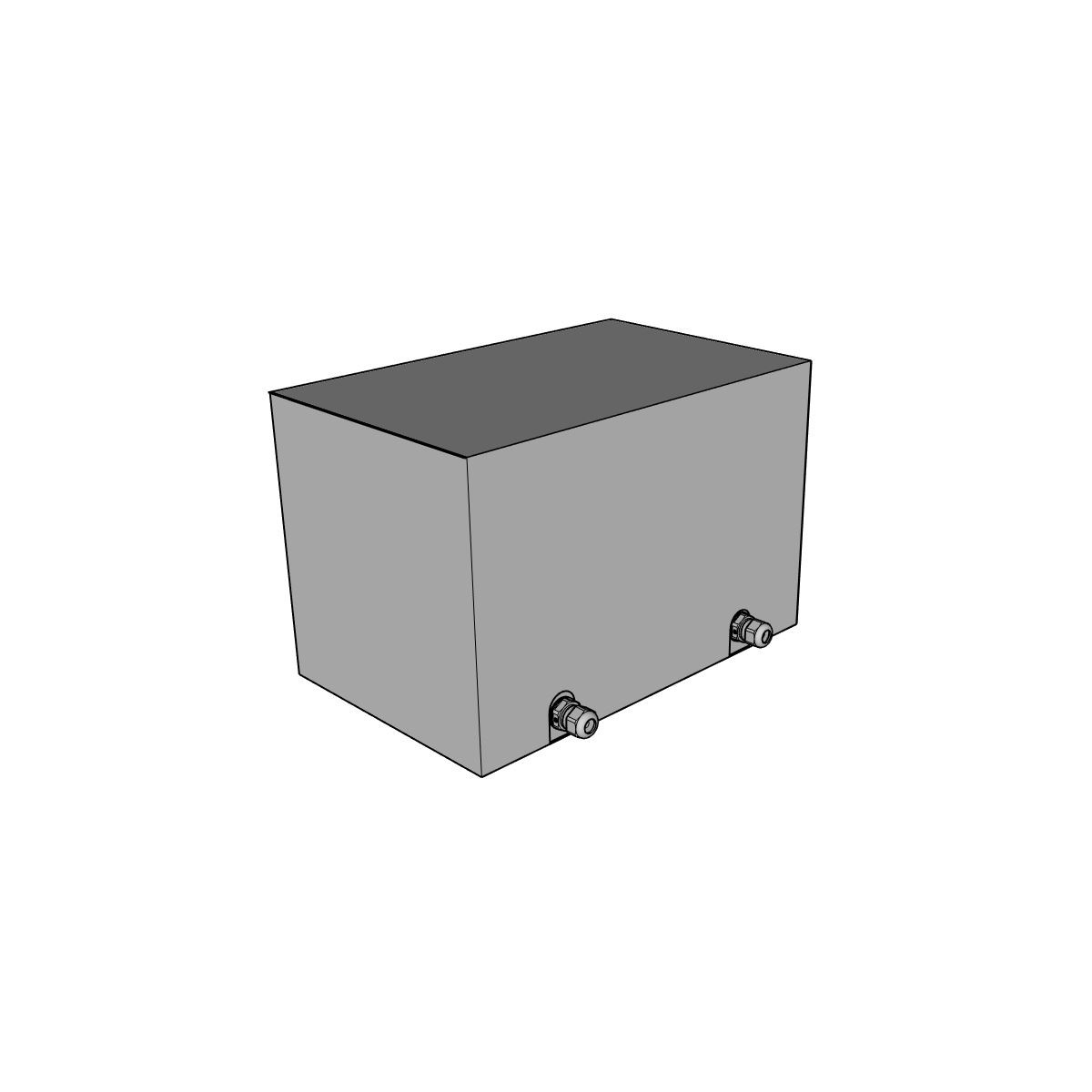

EREA 3 phase isolation transformer 230-400V//230V-400V 1kVA SPT1000-IP65

Name: EREA 3 phase isolation transformer 230-400V//230V-400V 1kVA SPT1000-IP65
Brand: EREA
SKU: SPT1000/IP65
Price: 1870.96 EUR
Availability: InStock

Item No.: SPT1000/IP65

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €1.546,25

€1.870,96

Of betaal in termijnen vanaf €62,37 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT1000/IP65
EAN	5414503121097
Class	Three-phase isolating transformer
Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	1000VA (1KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP65
Standards	EN 60742 EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	B
Voltage drop (dU%)	3.15%
Efficiency	94%
Pcu (W)	52 W
Po (W)	45.5 W
Size A x B x C (mm)	279x234x233mm
Weight	23kg
Primary connection	Screw terminals 2.5 mm²
Secondary connection	Screw terminals 2.5 mm²
Finish	Vacuum and pressure varnish impregnated
