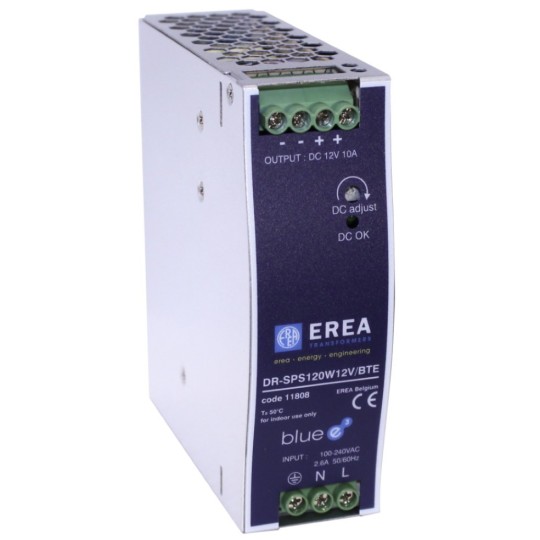

EREA 1-phase switched and stabilized DC power supply (adjustable) DR-SPS120W12V/BTE

Item No.: DR-SPS120W12V/BTE

The minimum purchase order quantity for the product is 2.

In stock!!!

(Price excluding VAT) 188,36
227,92
Description
Identification
Brand Erea
Articlenumber DR-SPS120W12V/BTE
EAN 5414503118080
Electrical properties
Efficiency (%) 85,5 %
Power (VA) 120 W
Voltage Primary (Vac) 230 Vac (90...264 Vac)
Voltage Primary DC (Vdc) 127...370 Vdc
Voltage Secondary DC (Vdc) 12 Vdc (12..14 Vdc)
General properties
IP degree IP00
Max. ambient temperature Ta (°C) 50 °C
Mechanical properties
Primary connection Screw terminals
Secondary connection Screw terminals
Size A x B x C (mm) 40 mm x 125,2 mm x 113,5 mm
Mass (kg) 600 g
Download
Datasheet DR-SPS120W12VBTE
