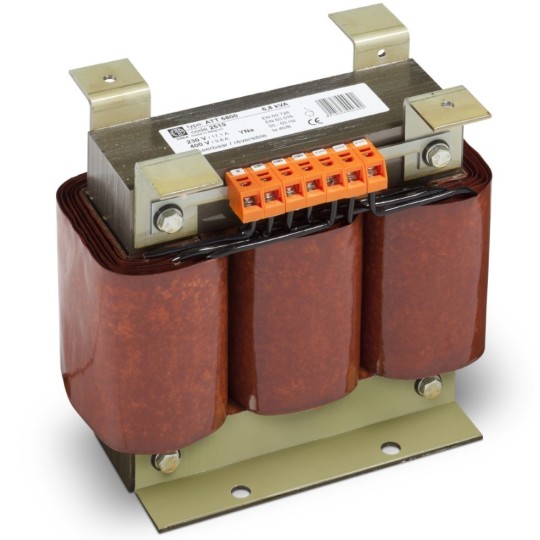

EREA 3 phase Autotransformer 0-230-400V 6,8kVA ATT 6800

Name: EREA 3 phase Autotransformer 0-230-400V 6,8kVA ATT 6800
Brand: EREA
SKU: ATT 6800
Price: 1545.02 EUR
Availability: InStock

Item No.: ATT 6800

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €1.276,88

€1.545,02

Enclosure

Trillingsdemper

Fuse secondary

Of betaal in termijnen vanaf €51,50 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	ATT 6800
EAN	5414503000392
Class	Three-phase autotransformer
Primary voltage	3x 0-230-400 Vac Y+N
Secondary voltage	3x 0-230-400 Vac Y+N
Rated power	6800VA (6.8KVA)
Degree of protection	IP00
Voltage drop (dU%)	1.2%
Efficiency (%)	97%
Pcu (W)	79 W
Po (W)	54 W
Dielectric strength referred to frame (Vac)	2500 Vac
Standards	EN 60726 EN 60076
Application	For Industrial Applications
Protection class	Prepared for class I
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	B

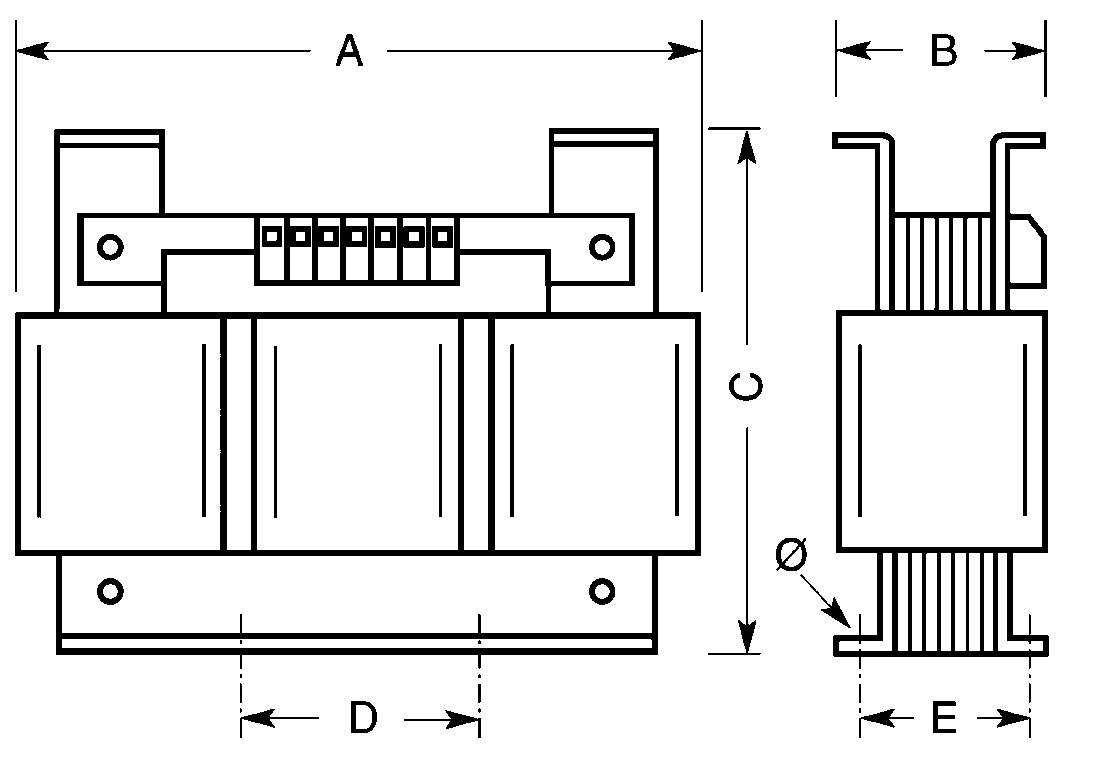

Size A x B x C (mm)	260x150x240mm
Size D (mm)	100mm
Size E (mm)	127mm
Weight	29.8kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Degree of protection IP23, IP44 and IP65 Other voltages and other powers Connections with sockets and power cords With fuses Treatment for tropical resistance
Option Enclosure IP20 (accessory)	K20EI190
Option Enclosure IP23 (accessory)	K23EI190/001
Option Enclosure IP44 (accessory)	K44EI220/010
Option Damper (accessory)	SILENT BLOCK 20
