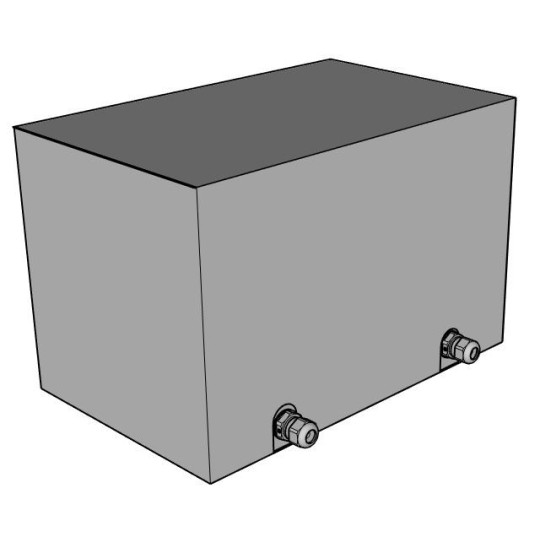

EREA 3 phase Autotransformer 0-230-400V 50kVA ATT 50000/IP65

Item No.: ATT 50000/IP65

Delivery time: Please contact us for current delivery times

18.300,11
(Price excluding VAT): 15.124,06

Of betaal in termijnen vanaf 610,00 p/m. Meer info

EAN
5414503121264
SKU
ATT 50000/IP65

Technical specifications

Brand EREA
Commercial Order Number ATT 50000/IP65
EAN 5414503121264
Class Three-phase autotransformer
Primary voltage 3x 0-230-400 Vac Y+N
Secondary voltage 3x 0-230-400 Vac Y+N
Rated power 50000VA (50KVA)
Degree of protection IP65
Voltage drop (dU%) 1.25%
Efficiency (%) 98.9%
Pcu (W) 1040 W
Po (W) 280 W
Dielectric strength referred to frame (Vac) 2500 Vac
Standards EN 60726
EN 60076
Application For Industrial Applications
Protection class Prepared for class I
Maximum ambient temperatur ta (°C) 40 °C
Temperature Class F
Size A x B x C (mm) 669x439x518mm
Weight 229kg
Primary connection Nut fastening M16
Secondary connection Nut fastening M16
Finish Vacuum and pressure varnish impregnated
