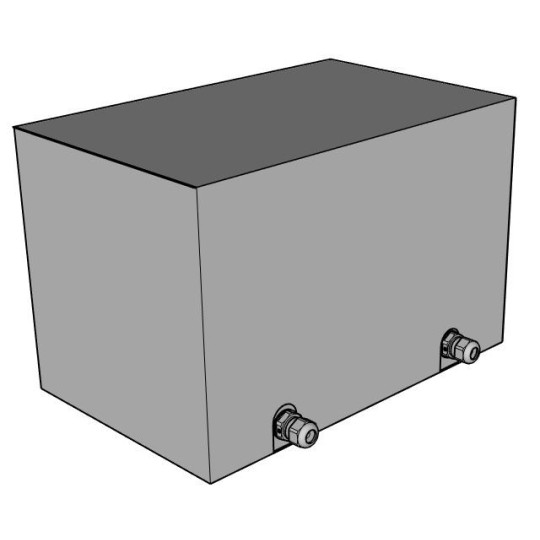

EREA 3 phase Autotransformer 0-230-400V 6.8kVA ATT 6800/IP65

Item No.: ATT 6800/IP65

Delivery time: Please contact us for current delivery times

3.078,05
(Price excluding VAT): 2.543,84

Of betaal in termijnen vanaf 102,60 p/m. Meer info

EAN
5414503087379
SKU
ATT 6800/IP65

Technical specifications

Brand EREA
Commercial Order Number ATT 6800/IP65
EAN 5414503087379
Class Three-phase autotransformer
Primary voltage 3x 0-230-400 Vac Y+N
Secondary voltage 3x 0-230-400 Vac Y+N
Rated power 6800VA (6.8KVA)
Degree of protection IP65
Voltage drop (dU%) 1.65%
Efficiency (%) 97%
Pcu (W) 173 W
Po (W) 56 W
Dielectric strength referred to frame (Vac) 2500 Vac
Standards EN 60726
EN 60076
Application For Industrial Applications
Protection class Prepared for class I
Maximum ambient temperatur ta (°C) 40 °C
Temperature Class B
Size A x B x C (mm) 409x234x328mm
Weight 51kg
Primary connection Screw terminals 10 mm²
Secondary connection Screw terminals 10 mm²
Finish Vacuum and pressure varnish impregnated
