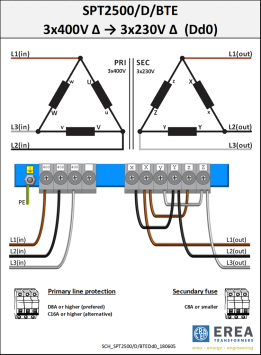

Connection_Diagram_DD0_SPT_2500_D_BTE
Connection_Diagram_Dy11_SPT_2500_D_BTE
Transformator_SPT2500DBTE
SPT2500/D/BTE
Dimensions_SPT_2500_D_BTE
Electrical_Diagram_SPT_2500_D_BTE
Connection_Diagram_DD0_SPT_2500_D_BTE
Connection_Diagram_Dy11_SPT_2500_D_BTE
Transformator_SPT2500DBTE
Pin-it

EREA 3 phase transformer Upri 400V ∆ // Usec 230V ∆ - 400V Y+N 2500VA (2.5KVA) SPT2500/D/BTE

Item No.: SPT2500/D/BTE
EREA

Delivery time: 2-3 weeks (contact us)

Enclosure

Enclosure

Vibration damper

€1.891,39 €1.198,41
(Price excluding VAT): €990,42
You Save: 37%

Of betaal in termijnen vanaf €39,95 p/m. Meer info

EAN
5414503105301
SKU
SPT2500/D/BTE

Technical specifications
Brand EREA
Commercial Order Number SPT 2500/D/BTE
EAN 5414503105301
Class Energy Efficient Protective Transformer (BTE)
Primary voltage 3x 400 Vac ∆
Secondary voltage 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 2500VA (2.5KVA)
Degree of protection IP00
Diëlektrische vastheid (Vac) 4500 Vac
Pcu (W) 69 W
Po (W) 35 W
Voltage drop (dU%) 3.2%
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
Maximum ambient temperatur Ta (°C) 40 °C
Temperature Class F
Application For Industrial Applications
Efficiency  96%
Size A x B x C (mm) 260x140x243mm
Size D (mm) 100mm
Size E (mm) 117mm
Weight27.3 kg
Primary connection Screw terminals 4 mm²
Secondary connection Screw terminals 4 mm²
Finish Vacuum and pressure impregnated
Φ (mm) 11 mm

Options
On request Protection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire) K20BTE/010
Option enclosure IP23 (accessoire) K23BTE/010
Option Damper (accessoire) SILENT BLOCK 20
