Overview

Trident T5 transformer enclosure

Name: Trident T5 transformer enclosure
Brand: detransformatorspecialist.nl
SKU: 710.1.T5
Price: 329.27 EUR
Availability: InStock

Item No.: 710.1.T5

(Price excluding VAT) €272,12

€329,27

Of betaal in termijnen vanaf €10,98 p/m. Meer info

Description

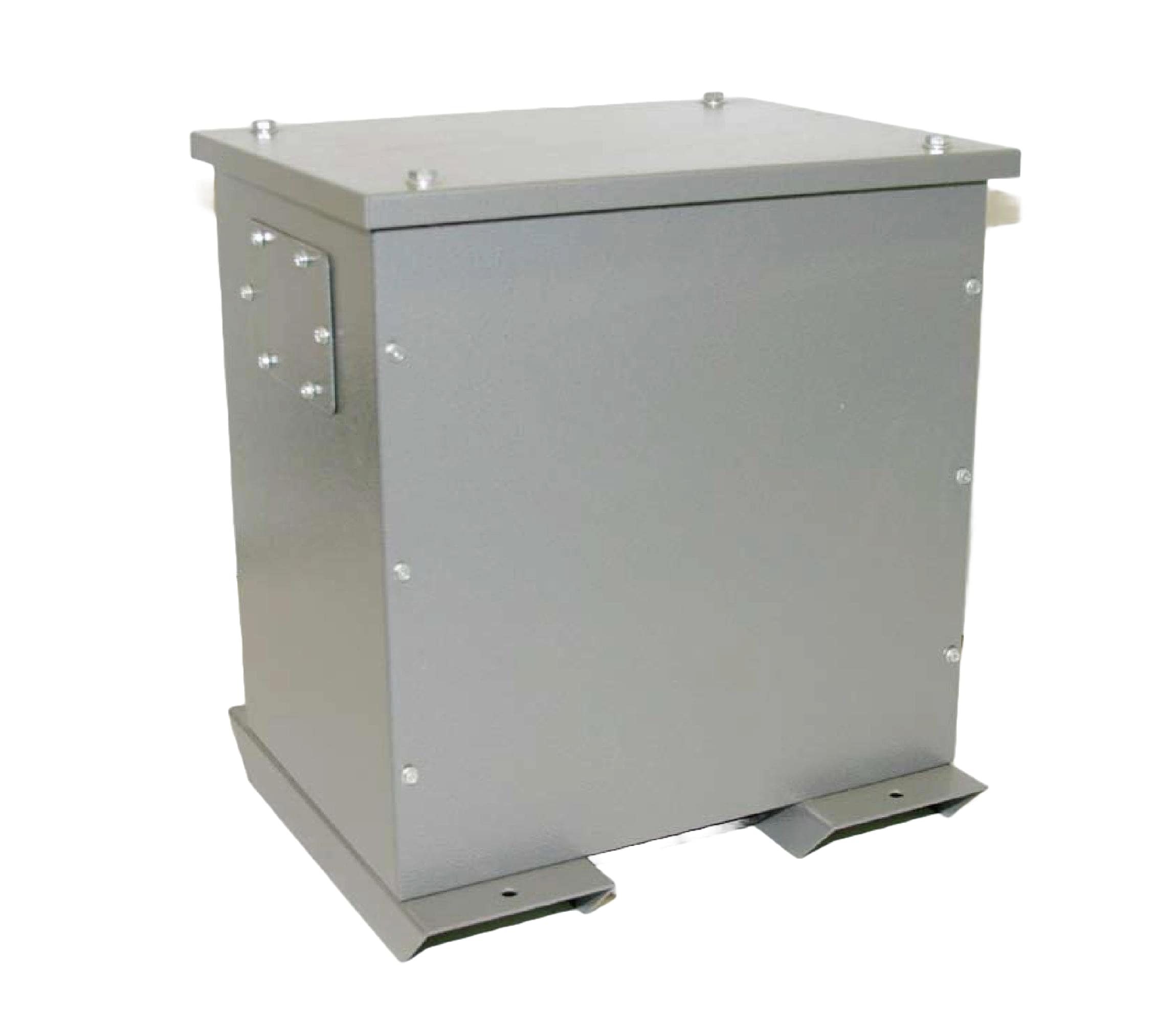

TRIDENT 3-Phase / 1-Phase transformer enclosures
• All measurements arein millimeters
• Standard finish: Hammer grey or RAL 7032
• AAll enclosures are supplied as a kit and packaged separately
• Values available: IP20 IP23 IP44 IP54 IP65
• Base plates are available on request

Type	Trident style enclosure
Article number	710.1.T5
[L] Outside length	850mm
[L1] Inside length	800mm
[B] Outside width	550mm
[B1] Inside width	500mm
[H] Height	800mm
[V]	650mm
[V1]	228mm
[U] Pedestal length	600mm
[U1] Heart size screw holes pedestal	550mm
Color	GreyRAL 7032
Available in the following versions	IP20, IP23, IP44 and IP54
Weight	50Kg
