Overview

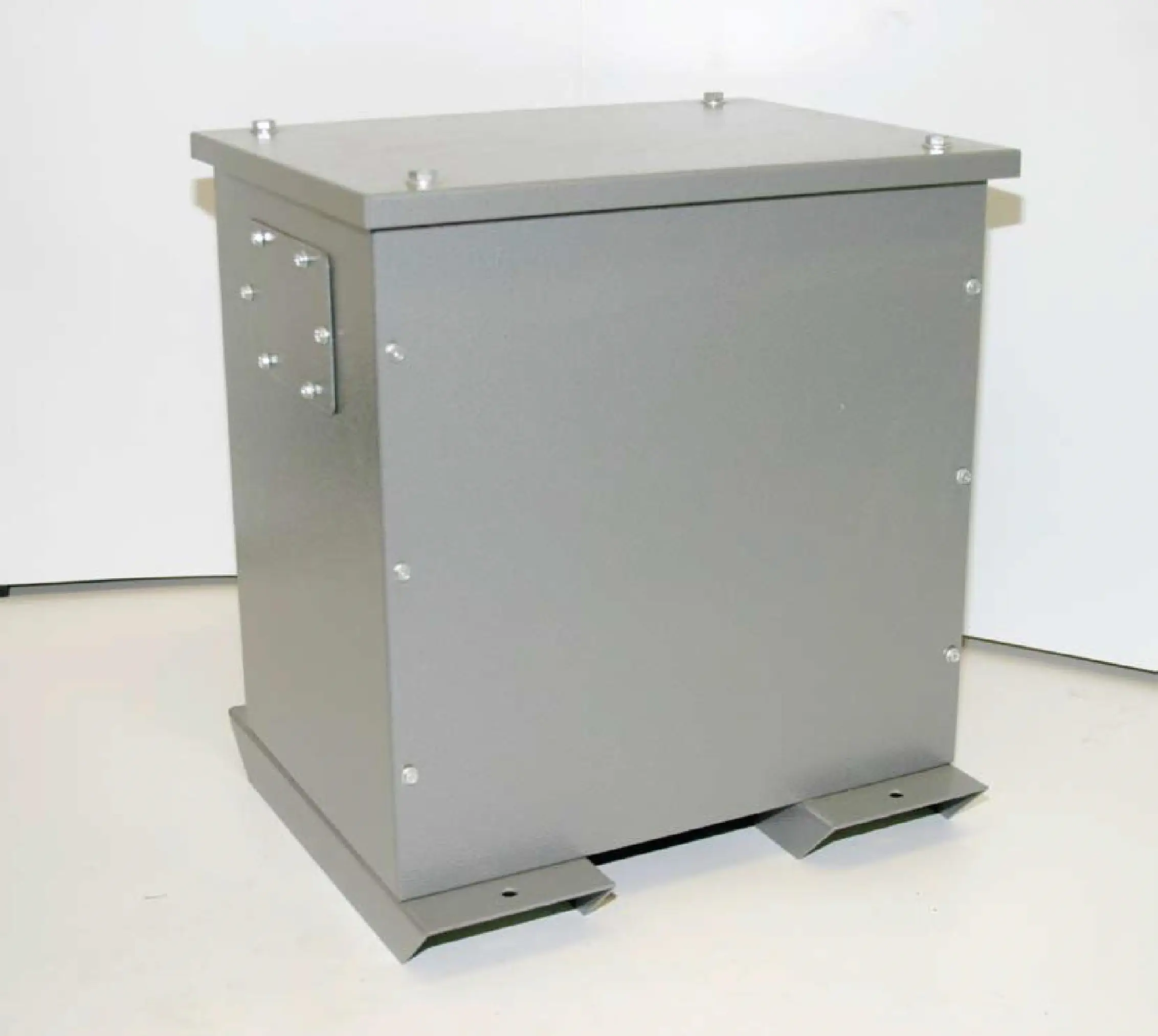

Trident T2 transformer enclosure

Name: Trident T2 transformer enclosure
Brand: detransformatorspecialist.nl
SKU: 710.1.T2
Price: 178.54 EUR
Availability: InStock

Item No.: 710.1.T2

(Price excluding VAT) €147,55

€178,54

Description

TRIDENT 3-Phase / 1-Phase transformer enclosures
• All measurements arein millimeters
• Standard finish: Hammer grey or RAL 7032
• AAll enclosures are supplied as a kit and packaged separately
• Values available: IP20 IP23 IP44 IP54 IP65
• Base plates are available on request

Type	Trident style enclosure
Article number	710.1.T2
[L] Outside length	420mm
[L1] Inside length	400mm
[B] Outside width	230mm
[B1] Inside width	200mm
[H] Height	400mm
[V]	250mm
[V1]	150mm
[U] Pedestal length	300mm
[U1] Heart size screw holes pedestal	250mm
Color	GreyRAL 7032
Available in the following versions	IP20, IP23, IP44 and IP54
Weight	13Kg
