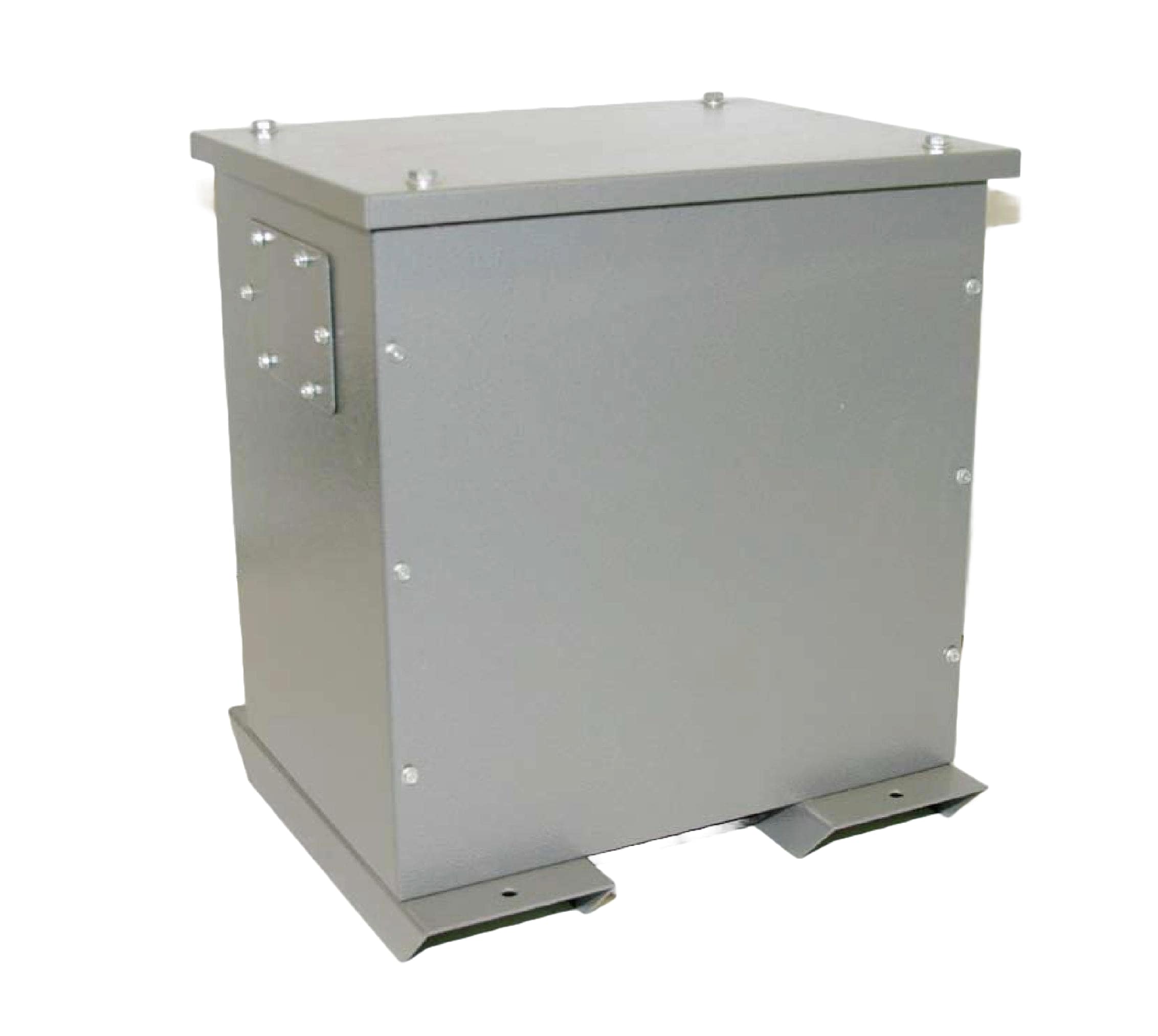

Trident T3 transformer enclosure

Name: Trident T3 transformer enclosure
Brand: detransformatorspecialist.nl
SKU: 710.1.T3
Price: 235.32 EUR
Availability: InStock

Item No.: 710.1.T3

(Price excluding VAT) €194,48

€235,32

Description

TRIDENT 3-Phase / 1-Phase transformer enclosures
• All measurements arein millimeters
• Standard finish: Hammer grey or RAL 7032
• AAll enclosures are supplied as a kit and packaged separately
• Values available: IP20 IP23 IP44 IP54 IP65
• Base plates are available on request

Type	Trident style enclosure
Article number	710.1.T3
[L] Outside length	525mm
[L1] Inside length	500mm
[B] Outside width	400mm
[B1] Inside width	350mm
[H] Height	500mm
[V]	350mm
[V1]	168mm
[U] Pedestal length	450mm
[U1] Heart size screw holes pedestal	400mm
Color	GreyRAL 7032
Available in the following versions	IP20, IP23, IP44 and IP54
Weight	22Kg
