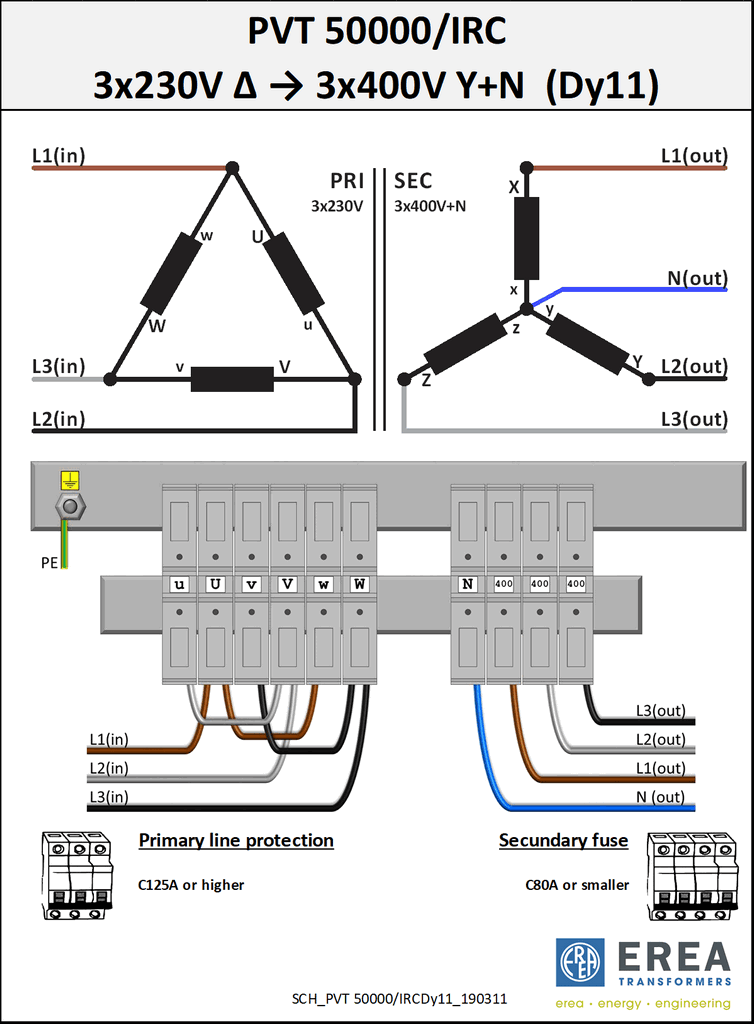

Aansluitschema Dy11 PVT50000/IRC

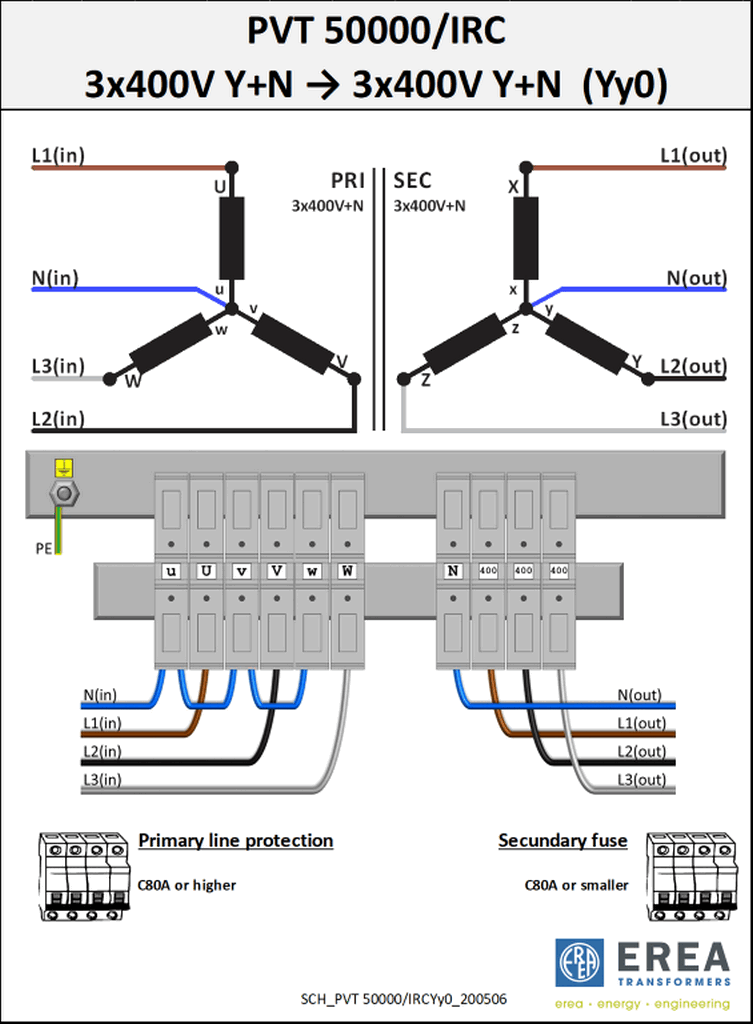

Aansluitschema Yy0 PVT50000/IRC
Symbool PVT50000/IRC
PVT50000/IRC
Dimensionering PVT50000/IRC
Elektrisch schema PVT50000/IRC
Aansluitschema Dy11 PVT50000/IRC
Aansluitschema Yy0 PVT50000/IRC
Symbool PVT50000/IRC
Pin-it

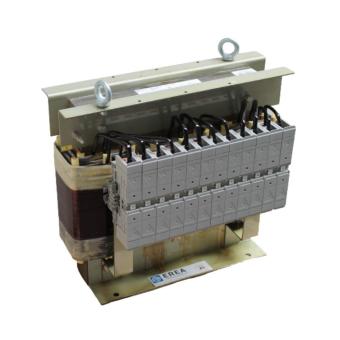

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 400V Y+N 50000VA (50KVA) PVT50000/IRC

Item No.: PVT 50000/IRC
EREA

Delivery time: Please contact us for current delivery times

Enclosure

Vibration damper

€12.700,39 €8.890,27
(Price excluding VAT): €7.347,33
You Save: 30%
Request a quote?

Of betaal in termijnen vanaf €296,34 p/m. Meer info

EAN
5414503118530
SKU
PVT 50000/IRC

Technical specifications

BrandEREA
Commercial Order NumberPVT 50000/IRC
EAN5414503118530
ClassThree Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)
Primary voltage3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage3x 400 Vac Y+N
Rated power50000VA (50KVA)
Degree of protectionIP00
Voltage drop (dU%)1.9%
Efficiency 97,9%
Pcu (W)940W
Po (W)130W
Dielectric strength to mass (Vac)2500 Vac
StandardsEN 61558-2-4
Maximum ambient temperatur ta (°C)40 °C
Temperature ClassB
Size A x B x C (mm)640x460x500mm
Size D (mm)400mm
Size E (mm)275mm
Weight360kg
Primary connectionMoerbevestiging M8
Secondary connectionMoerbevestiging M8
Φ (mm)11 mm
Protection ClassPrepared for Protection Class I


Options

On requestProtection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire)K20PVT/050
Option enclosure IP23 (accessoire)K23PVT/050
Option enclosure IP44 (accessoire)K44EI500/020
Option Damper (accessoire)SILENT BLOCK 120
