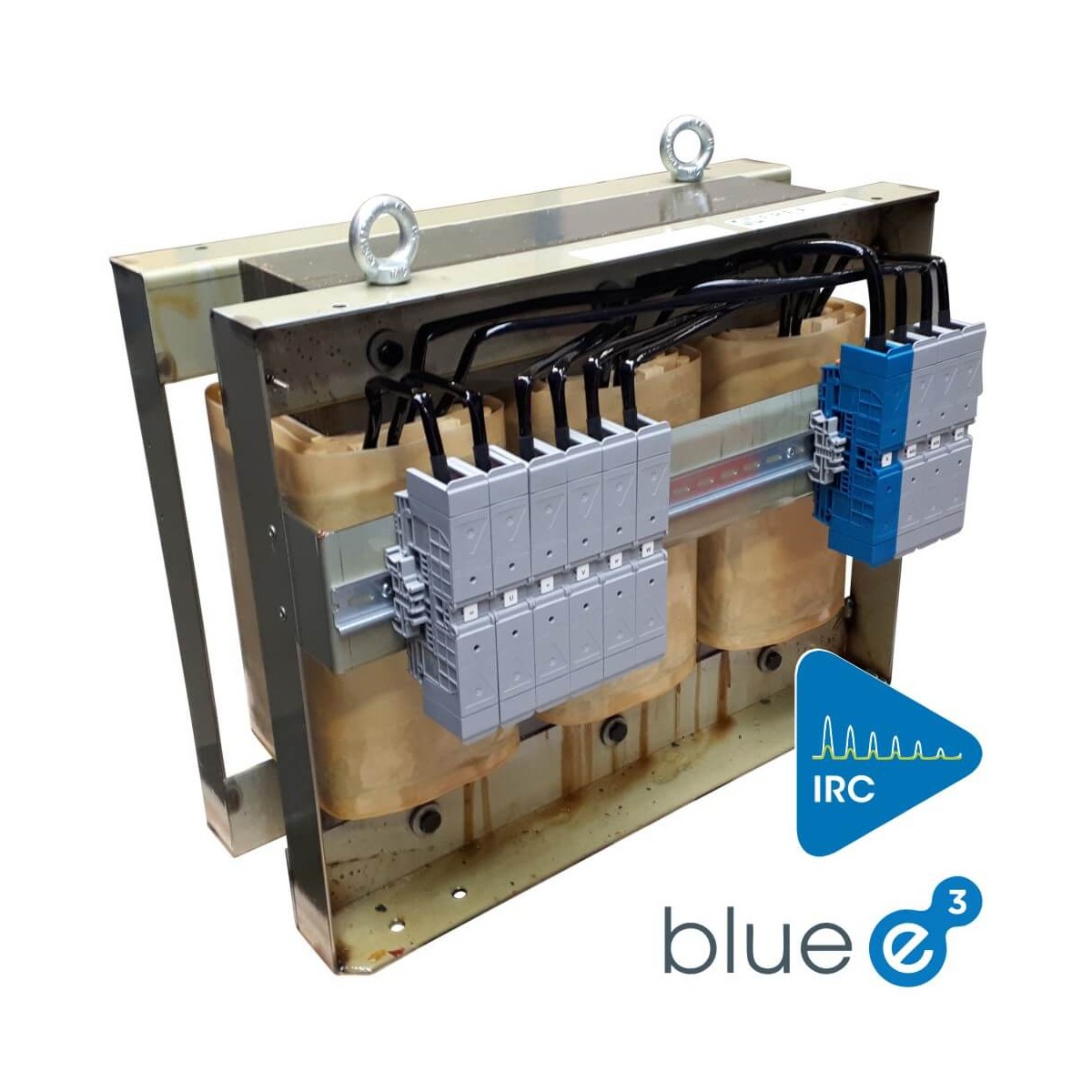

EREA 3 phase isolation transformer EV 230V//400V//400V 30kVA PVT30000/IRC

Name: EREA 3 phase isolation transformer EV 230V//400V//400V 30kVA PVT30000/IRC
Brand: EREA
SKU: PVT30000/IRC
Price: 9001.22 EUR
Availability: InStock

Item No.: PVT30000/IRC

Enclosure

Vibration damper

€13.927,54 €9.001,22

(Price excluding VAT): €7.439,03

You Save: 35%

Request a quote?

Of betaal in termijnen vanaf €300,04 p/m. Meer info

EAN

5414503121677

SKU

PVT30000/IRC

Technical specifications
Brand	EREA
Commercial Order Number	PVT 30000/IRC
EAN	5414503118523
Class	Three Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)
Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 400 Vac Y+N
Rated power	30000VA (30KVA)
Degree of protection	IP00
Voltage drop (dU%)	2.6%
Efficiency	97,7%
Pcu (W)	616W
Po (W)	87W
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	B
Size A x B x C (mm)	640x390x500mm
Size D (mm)	400mm
Size E (mm)	245mm
Weight	250kg
Primary connection	Nut fixing M8
Secondary connection	Nut fixing M8
Φ (mm)	11 mm
Protection Class	Prepared for Protection Class I

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20PVT/025
Option enclosure IP23 (accessoire)	K23PVT/025
Option enclosure IP44 (accessoire)	K44EI500/010
Option Damper (accessoire)	SILENT BLOCK 120
