PVT40000/IRC
Dimensionering PVT40000/IRC

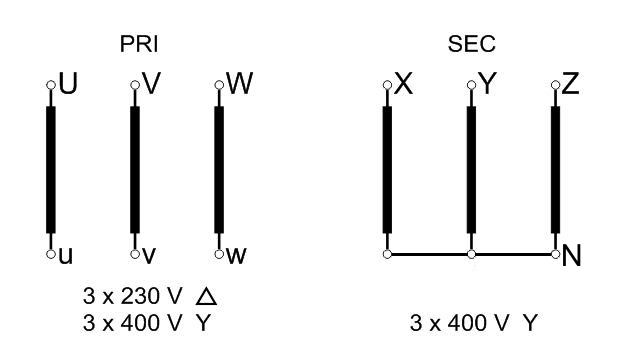

Elektrisch schema PVT40000/IRC

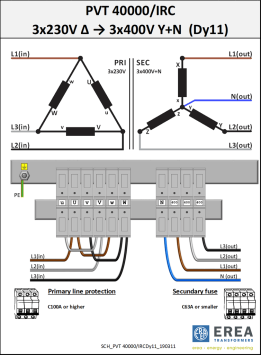

Aansluitschema Dy11 PVT40000/IRC

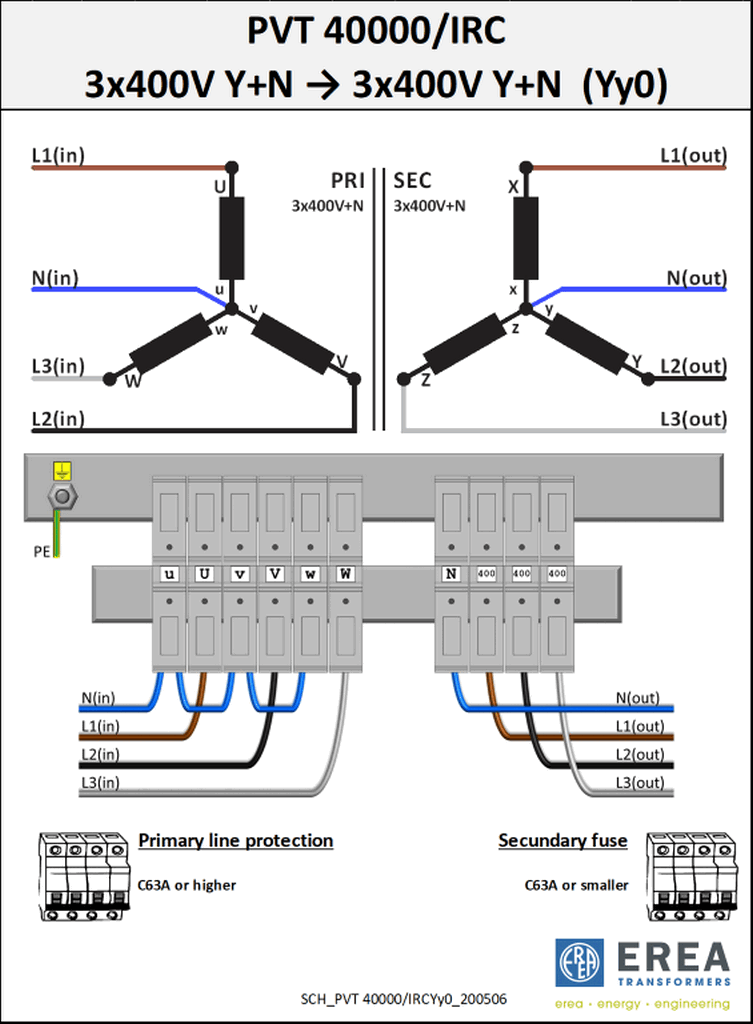

Aansluitschema Yy0 PVT40000/IRC
Symbool PVT40000/IRC
PVT40000/IRC
Dimensionering PVT40000/IRC
Elektrisch schema PVT40000/IRC
Aansluitschema Dy11 PVT40000/IRC
Aansluitschema Yy0 PVT40000/IRC
Symbool PVT40000/IRC
Pin-it

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 400V Y+N 40000VA (40KVA) PVT40000/IRC

Item No.: PVT 40000/IRC
EREA

Delivery time: Please contact us for current delivery times

Enclosure

Vibration damper

€10.538,13 €7.376,69
(Price excluding VAT): €6.096,44
You Save: 30%
Request a quote?

Of betaal in termijnen vanaf €245,89 p/m. Meer info

EAN
5414503118523
SKU
PVT 40000/IRC

Technical specifications

BrandEREA
Commercial Order NumberPVT 40000/IRC
EAN5414503118523
ClassThree Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)
Primary voltage3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage3x 400 Vac Y+N
Rated power40000VA (40KVA)
Degree of protectionIP00
Voltage drop (dU%)1.8%
Efficiency 97.9%
Pcu (W)730W
Po (W)110W
Dielectric strength to mass (Vac)2500 Vac
StandardsEN 61558-2-4
Maximum ambient temperatur ta (°C)40 °C
ApplicationFor Industrial Applications
Temperature ClassB
Size A x B x C (mm)640x430x500mm
Size D (mm)400mm
Size E (mm)400mm
Weight320kg
Primary connectionNut fixing M8
Secondary connectionNut fixing M8
Φ (mm)11 mm
Protection ClassPrepared for Protection Class I


Options

On requestProtection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire)K20PVT/040
Option enclosure IP23 (accessoire)K23PVT/040
Option enclosure IP44 (accessoire)K44EI500/020
Option Damper (accessoire)SILENT BLOCK 120
