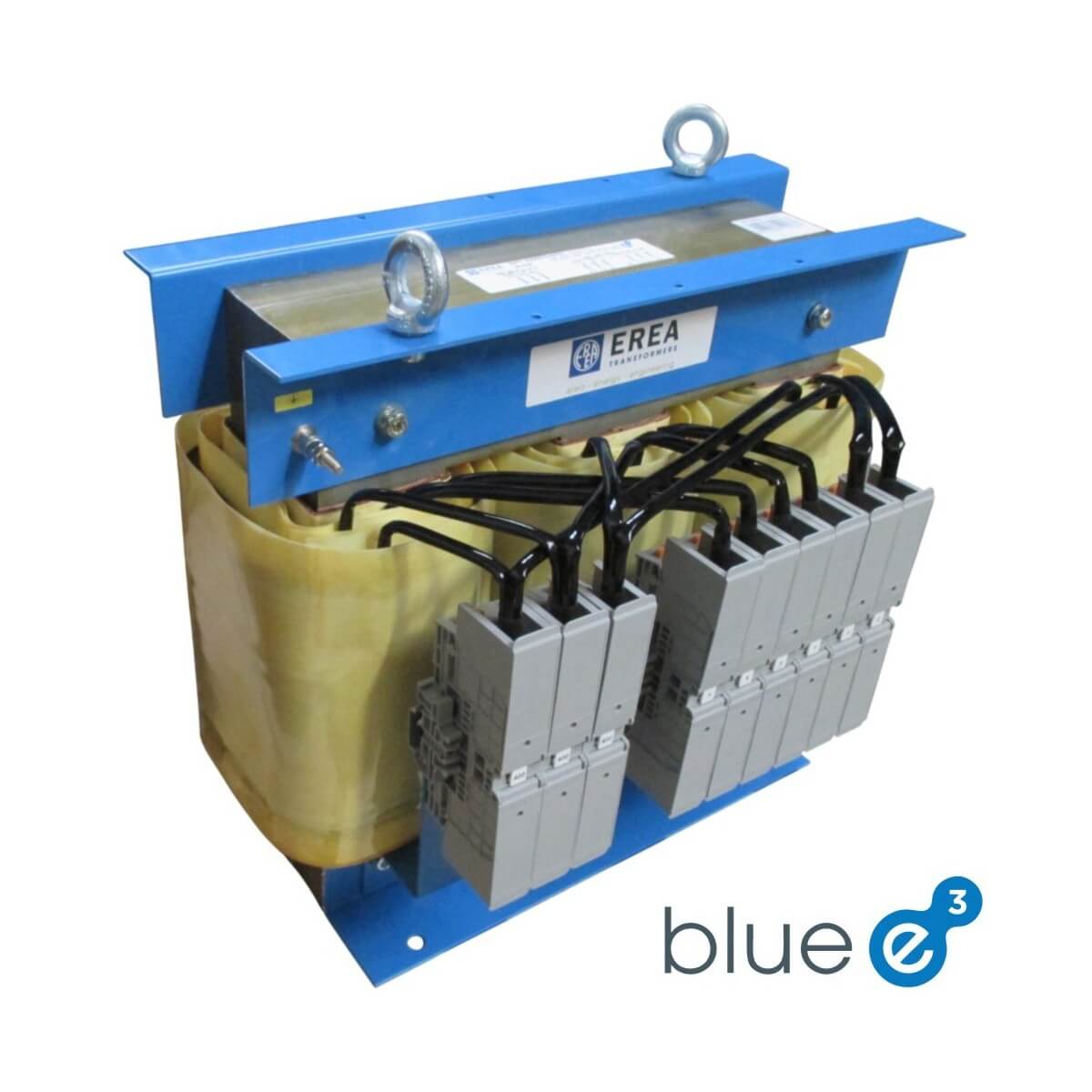

EREA 3 phase transformer Upri 400V ∆ // Usec 230V ∆ - 400V Y+N 25000VA (25KVA) SPT25000/D/BTE

Item No.: SPT 25000/D/BTE
Current delivery time (contact us)

7.631,33
(Price excluding VAT)
Enclosure
Enclosure
Trillingsdemper
Of betaal in termijnen vanaf 254,38 p/m. Meer info
Description

Technische specificaties

Brand EREA
Commercial Order Number SPT 25000/D/BTE
EAN 5414503105363
Class Energy Efficient Protective Transformer (BTE)

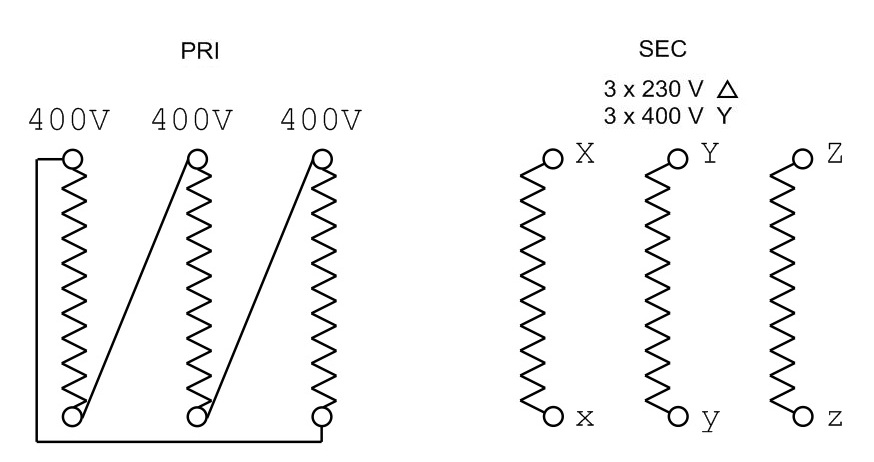

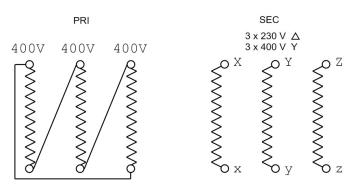

Primary voltage 3x 400 Vac ∆

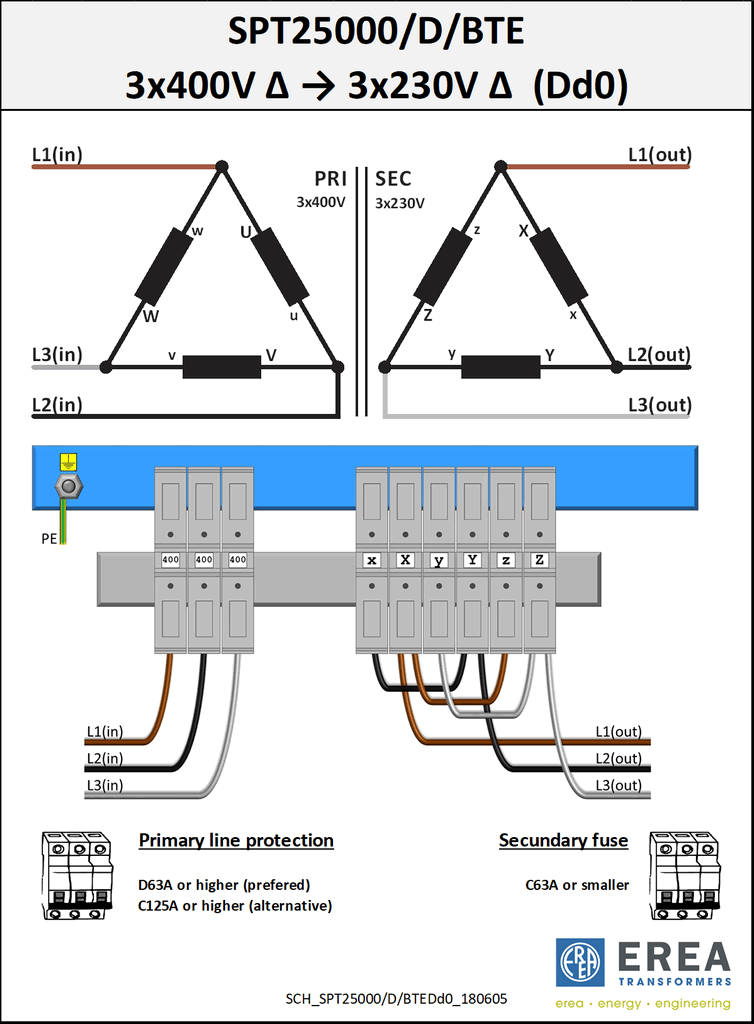

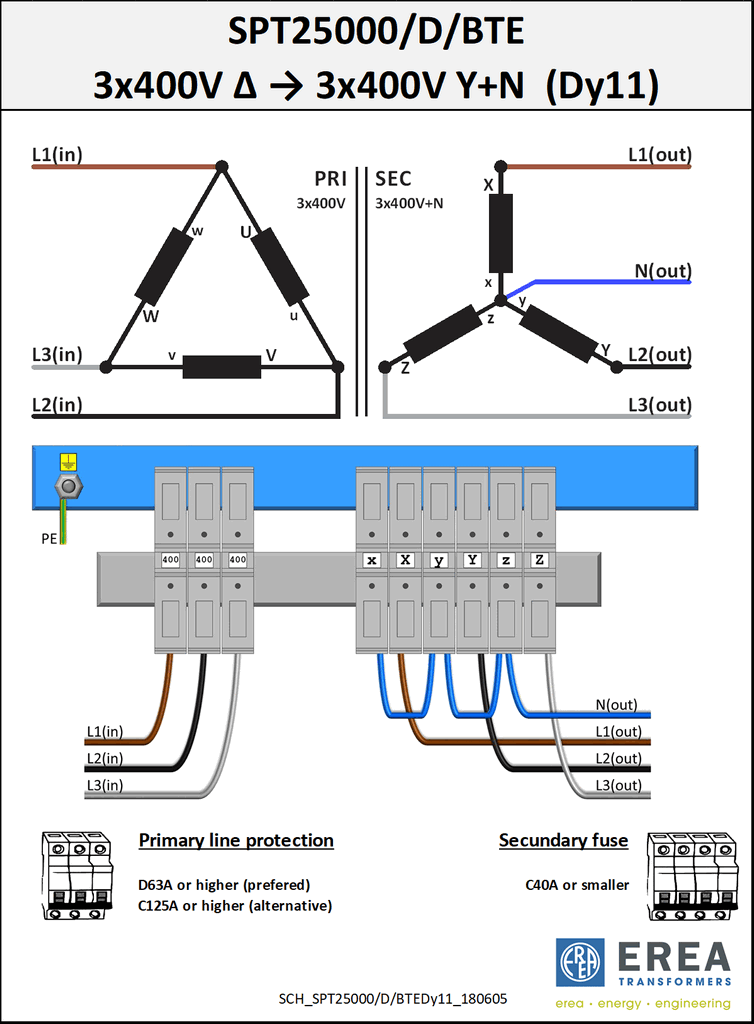

Secondary voltage 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 25000VA (25KVA)
Degree of protection IP00
Diëlektrische vastheid (Vac) 4500 Vac
Voltage drop (dU%) 1.42%
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
Max. ambient temperature Ta (°C) 40 °C
Temperature Class F
Application For Industrial Applications
Efficiency  97.9%
Pcu (W) 357W
Po (W) 150W

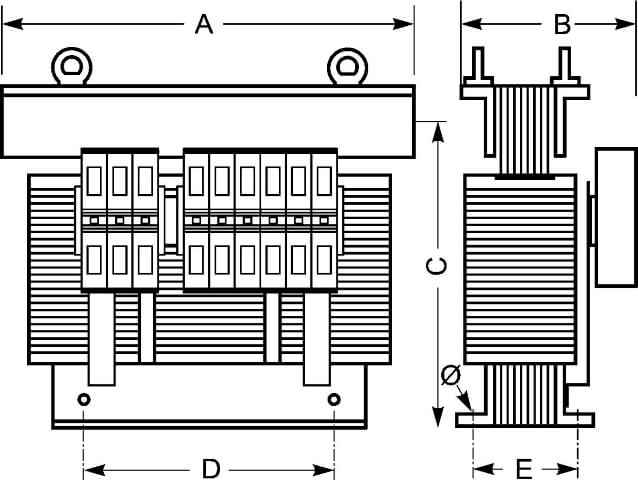

Size A x B x C (mm) 480x320x415mm
Size D (mm) 320mm
Size E (mm) 220mm
Weight 160kg
Primary connection Nut M8
Secondary connection Nut M8
Finish Vacuum and pressure impregnated
Φ (mm) 11 mm

Opties

Op aanvraag Beschermingsklasse II
Beschermingsgraad IP23, IP44 en IP65
Andere spanningen en andere vermogens
Zig-Zag schakelgroepen
Aansluitingen met contactdozen en met netsnoeren
Met smeltzekeringen
Met elektrostatische schermen
Behandeling voor tropenbestendigheid
Optie Behuizing IP20 (accessoire) K20BTE/050
Optie Behuizing IP23 (accessoire) K23BTE/050
Optie Demper (accessoire) SILENT BLOCK 50
