EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 400V Y+N 25000VA (25KVA) PVT25000/IRC

Item No.: PVT 25000/IRC
Current delivery time (contact us)
(Price excluding VAT) 8.495,99
10.280,15

Enclosure

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf 342,67 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number PVT 25000/IRC
EAN 5414503118516
Class Three Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)

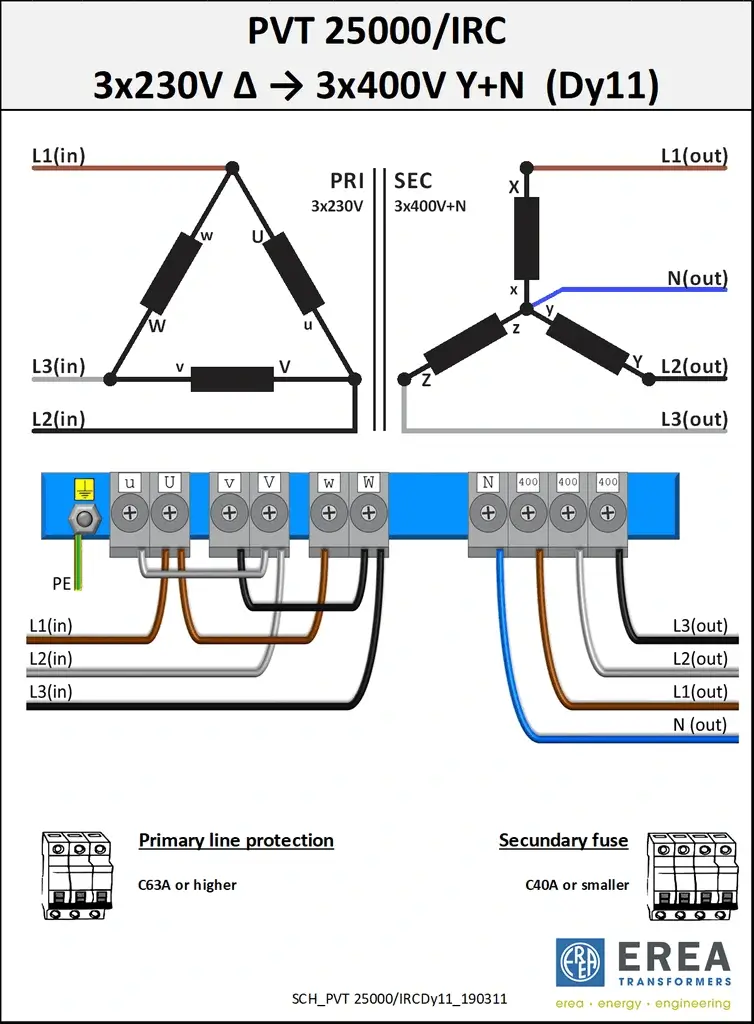

Primary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3x 400 Vac Y+N
Rated power 25000VA (25KVA)
Degree of protection IP00
Efficiency  97,2%
Pcu (W) 660W
Po (W) 65W
Voltage drop (dU%) 2.6%
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
Maximum ambient temperatur ta (°C) 40 °C
Temperature Class B

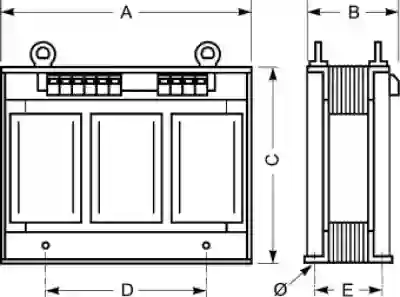

Size A x B x C (mm) 640x360x500mm
Size D (mm) 400mm
Size E (mm) 180mm
Weight 215kg
Primary connection Screw terminals 10 mm;
Secondary connection Screw terminals 10 mm;
Φ (mm) 11 mm
Protection Class Prepared for Protection Class I

Options

On request Protection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire) K20PVT/025
Option enclosure IP23 (accessoire) K23PVT/025
Option Damper (accessoire) SILENT BLOCK 75
