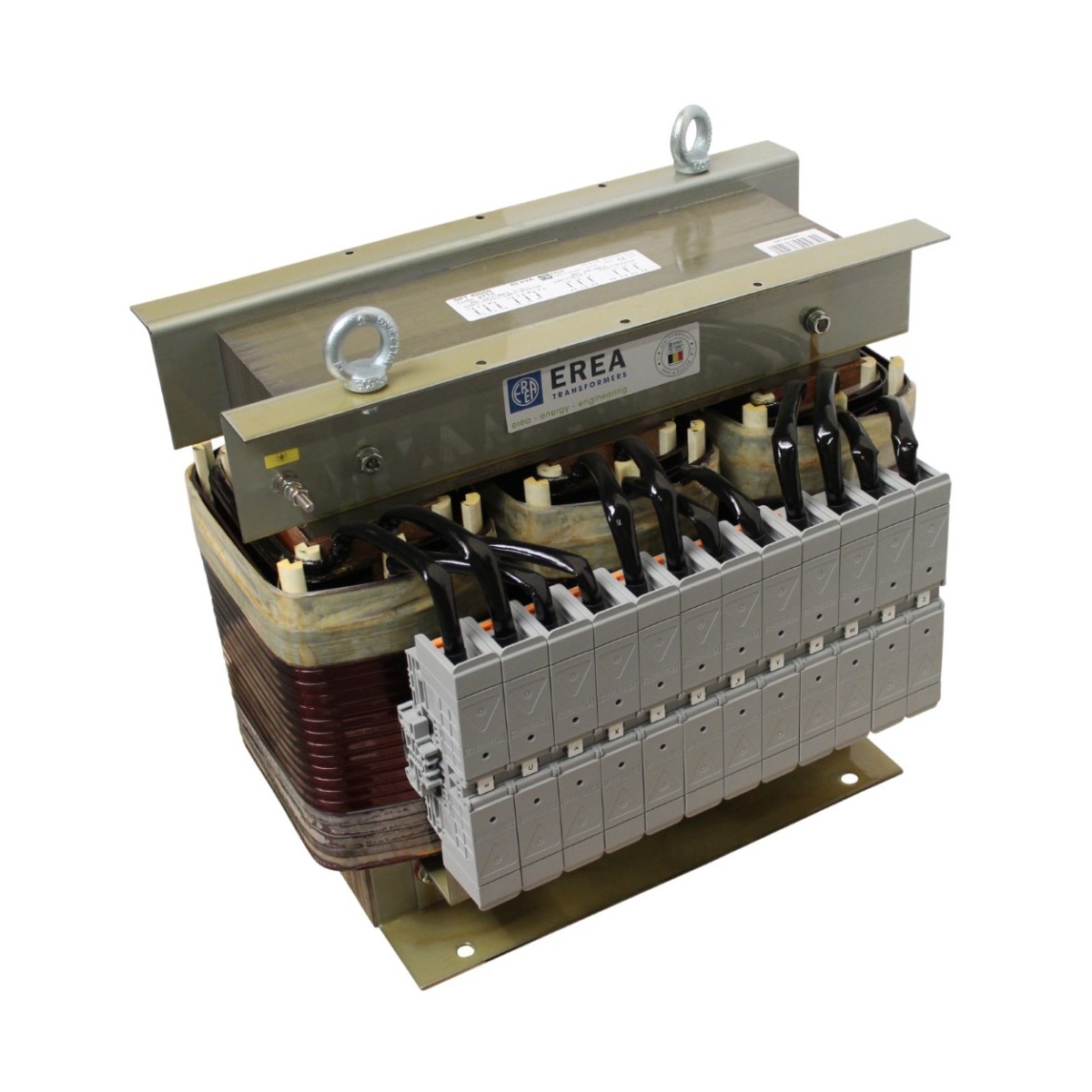

EREA 3 phase separating transformer 230-400V//230V-400V 40kVA SPT40000

Item No.: SPT40000

Enclosure

Vibration damper

12.949,34 8.543,64
(Price excluding VAT): 7.060,86
You Save: 31%

Of betaal in termijnen vanaf 284,79 p/m. Meer info

EAN
5414503004741
SKU
SPT40000

Technical specifications

BrandEREA
Commercial Order NumberSPT40000
EAN5414503004741
ClassThree-phase isolating transformer

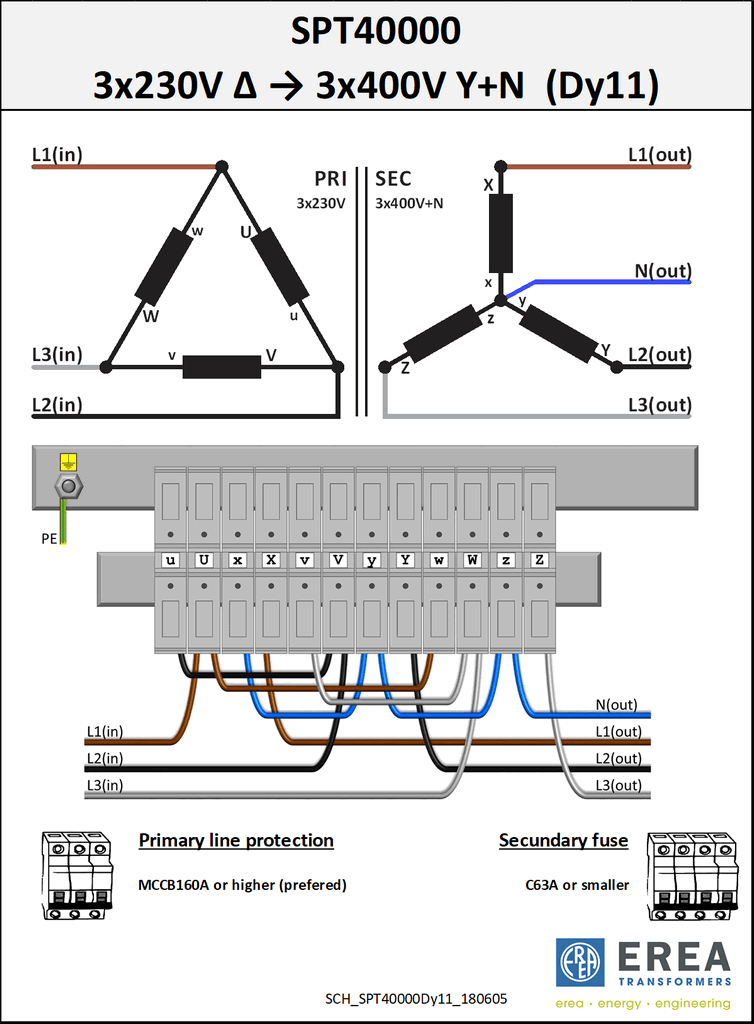

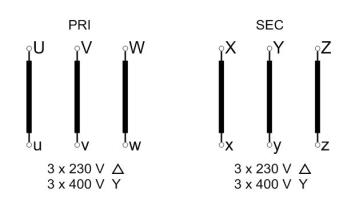

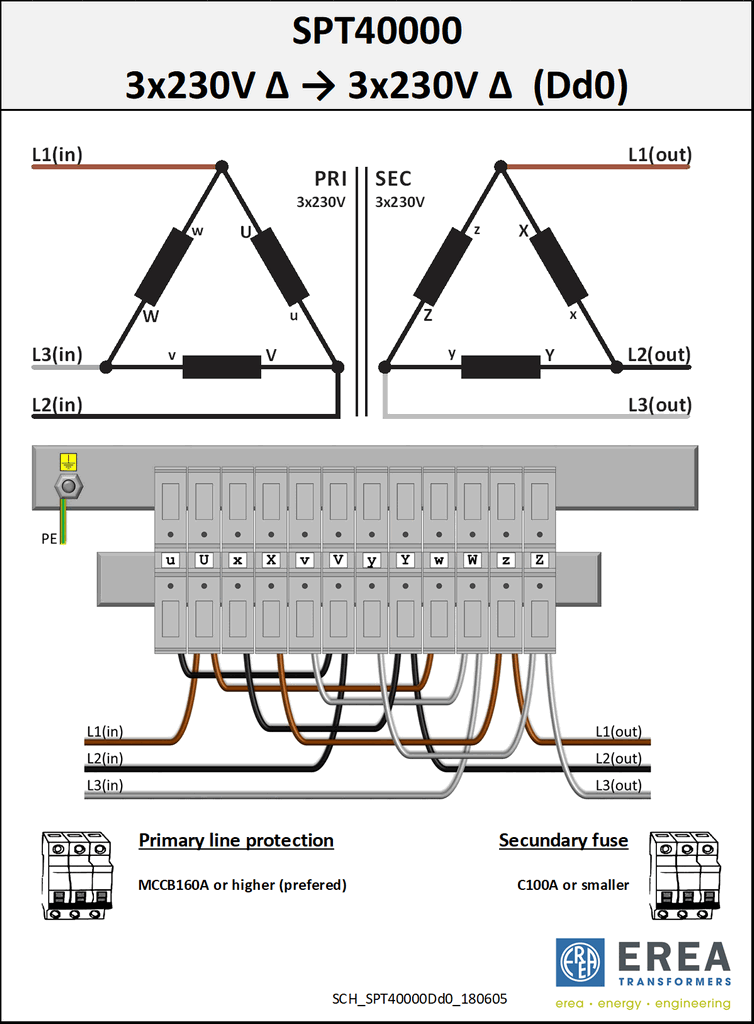

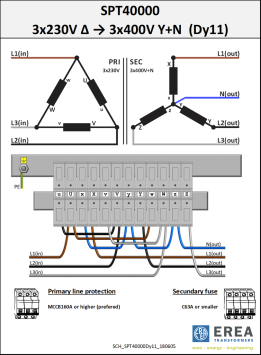

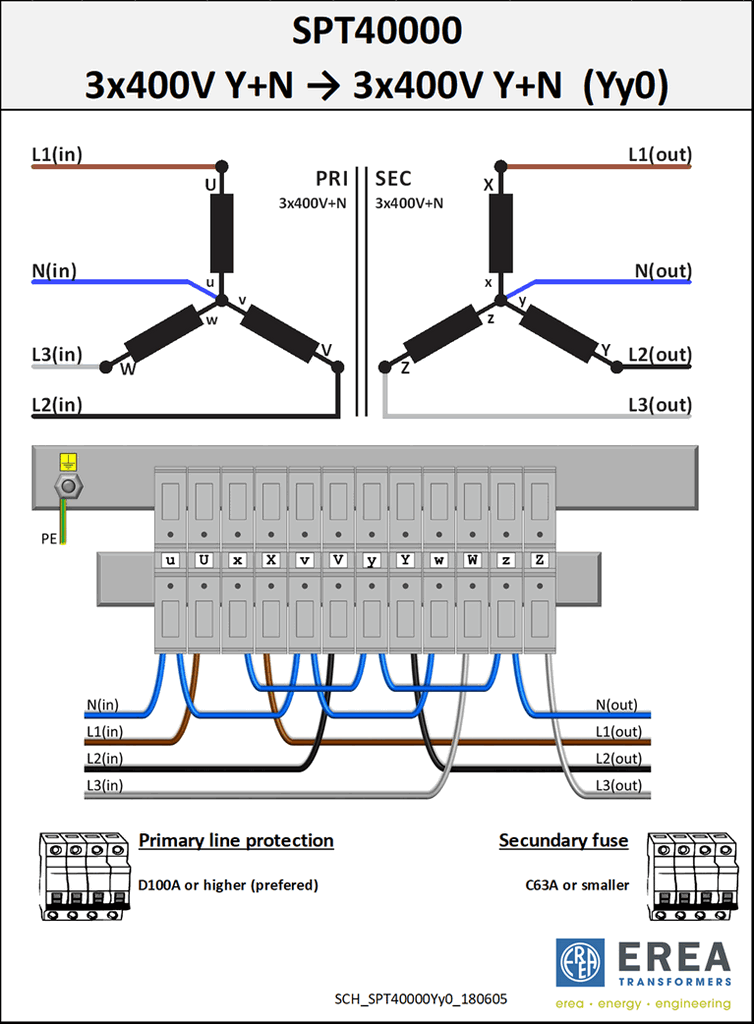

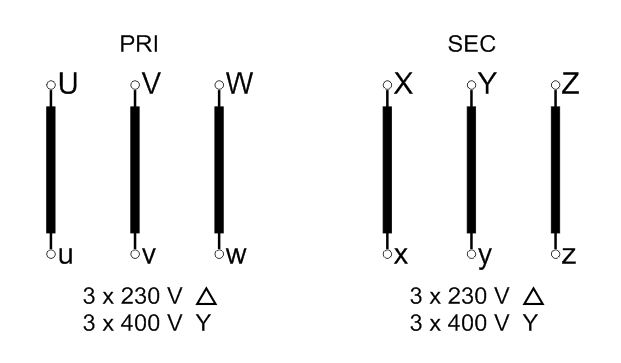

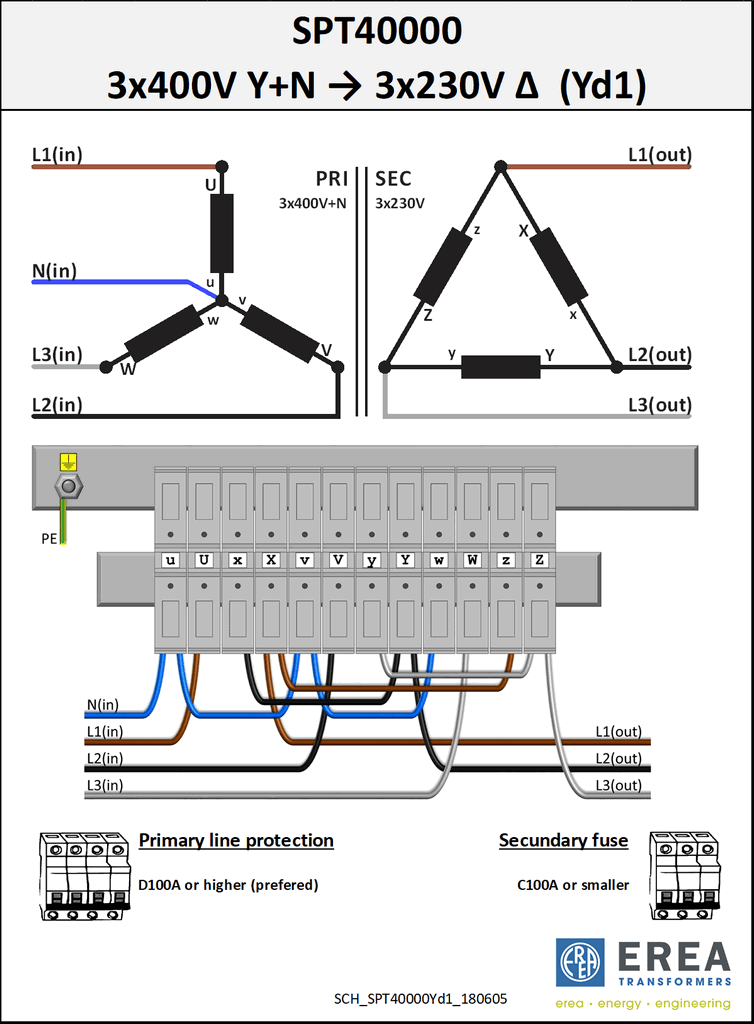

Primary voltage3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power40000VA (40KVA)
Voltage drop (dU%)2 %
Dielectric strength referred to frame (Vac)2500 Vac
Dielectric strength to mass (Vac)4500 Vac
Degree of protectionIP00
StandardsEN 60726
EN 60076
Maximum ambient temperatur ta (°C)40 °C
ApplicationFor Industrial Applications
Protection classPrepared for class I
Temperature ClassF
Efficiency 97.7 %
Pcu (W)805 W
Po (W)295 W

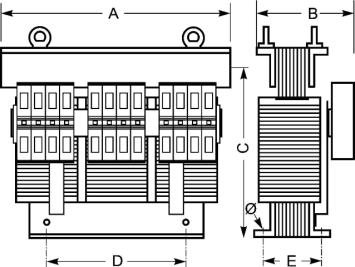

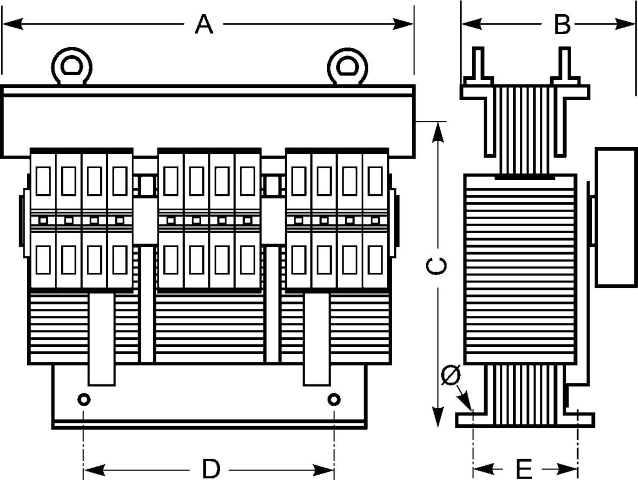

Size A x B x C (mm)480x340x415mm
Size D (mm)320mm
Size E (mm)240mm
Weight174kg
Primary connectionNut fastening M8
Secondary connectionNut fastening M8
Φ (mm)11 mm
FinishVacuum and pressure varnish impregnated

Options

On requestProtection class II
Degree of protection IP23, IP44 and IP65
Other voltages and other powers
Zig-Zag switching groups
Connections with sockets and power cords
With fuses
With electrostatic screens
Treatment for tropical resistance
Option Enclosure IP20 (accessory)U 2222722
Option Enclosure IP23 (accessory)K23EI400/004
Option Enclosure IP44 (accessory)K44EI400/030
Option Damper (accessory)SILENT BLOCK 75
