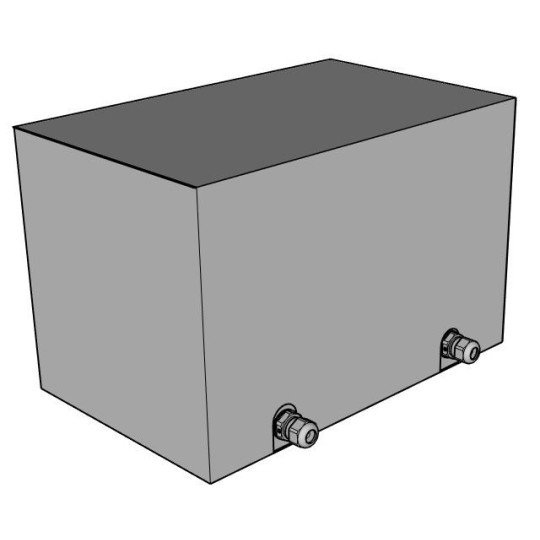

EREA 3 phase isolation transformer 400V//230V-400V 2,5kVA SPT2500/D/IP65

Item No.: SPT2500/D/IP65

Delivery time: Please contact us for current delivery times

2.680,14
(Price excluding VAT): 2.214,99

Of betaal in termijnen vanaf 89,34 p/m. Meer info

EAN
5414503121103
SKU
SPT2500/D/IP65

Technical specifications

Brand EREA
Commercial Order Number SPT2500/D/IP65
EAN 5414503121103
Primary voltage 3x 400 Vac ∆
Secondary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 2500VA (2.5KVA)
Dielectric strength referred to frame (Vac) 2500 Vac
Dielectric strength to mass (Vac) 4500 Vac
Degree of protection IP65
Standards

EN 60742
EN 61558-2-4

Maximum ambient temperatur ta (°C) 40 °C
Application For Industrial Applications
Protection class Prepared for class I
Temperature Class F
Voltage drop (dU%) 4.7%
Efficiency  94%
Pcu (W) 181 W
Po (W) 56 W
Size A x B x C (mm) 409x234x328mm
Weight 43kg
Primary connection Screw terminals 2.5 mm²
Secondary connection Screw terminals 2.5 mm²
Finish Vacuum and pressure varnish impregnated
