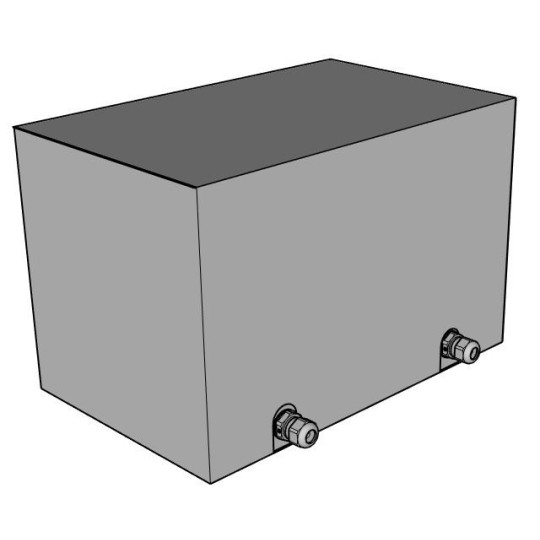

EREA 3 phase separating transformer 400V//230V-400V 25kVA SPT25000/D/IP65

Name: EREA 3 phase separating transformer 400V//230V-400V 25kVA SPT25000/D/IP65
Brand: EREA
SKU: SPT25000/D/IP65
Price: 17342.74 EUR
Availability: InStock

Item No.: SPT25000/D/IP65

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €14.332,84

€17.342,74

Of betaal in termijnen vanaf €578,09 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT25000/D/IP65
EAN	5414503121219
Primary voltage	3x 400 Vac ∆
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	25000VA (25KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP65
Standards	EN 60726 EN 60076
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Voltage drop (dU%)	1.79%
Efficiency	97.7%
Pcu (W)	1101 W
Po (W)	376 W
Size A x B x C (mm)	669x459x518mm
Weight	271kg
Primary connection	Nut fastening M10
Secondary connection	Nut fastening M10
Finish	Vacuum and pressure varnish impregnated
