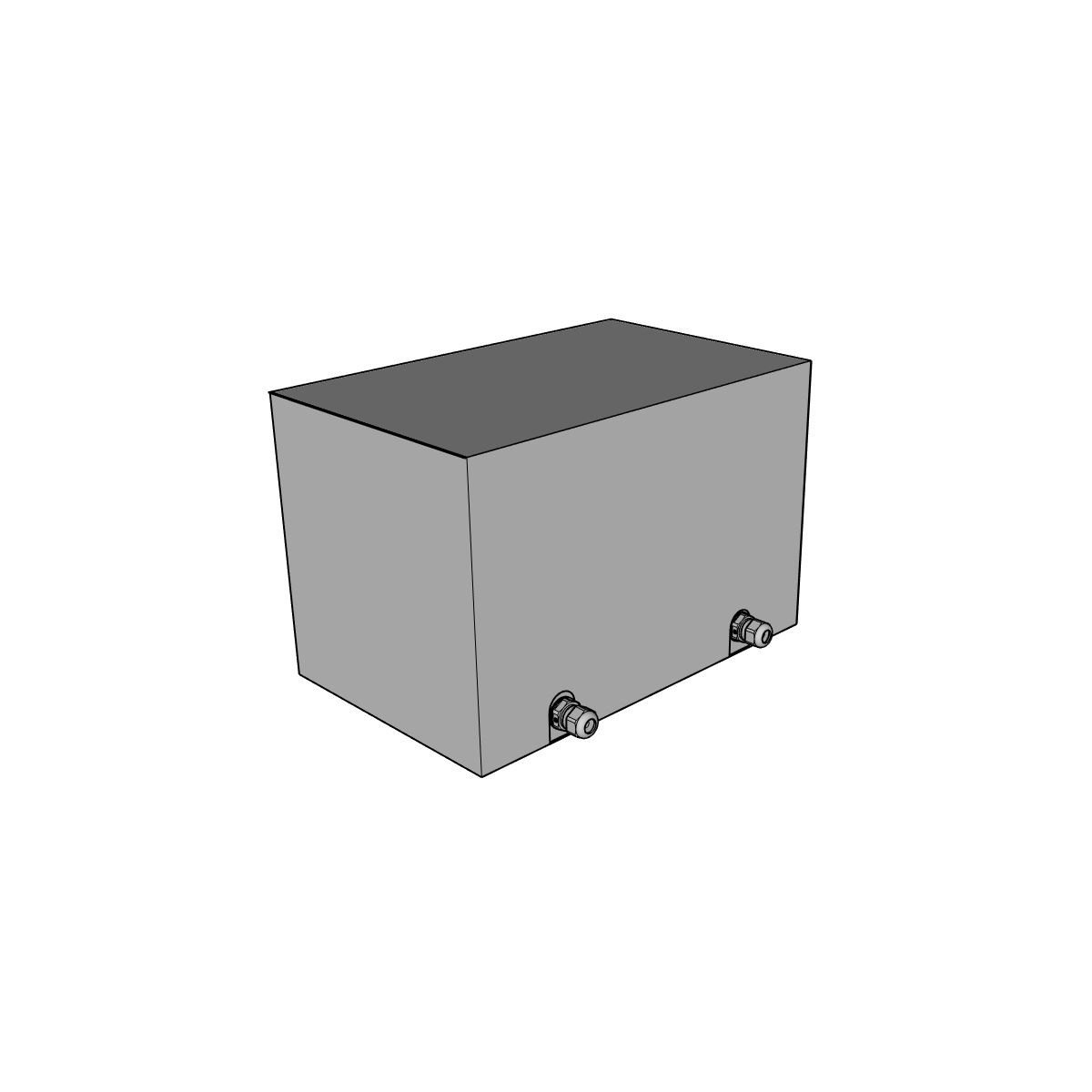

EREA 3 phase isolation transformer 230-400V//230V-400V 1,6kVA SPT1600/BTE/IP65

Name: EREA 3 phase isolation transformer 230-400V//230V-400V 1,6kVA SPT1600/BTE/IP65
Brand: EREA
SKU: SPT1600/BTE/IP65
Price: 2602.38 EUR
Availability: InStock

Item No.: SPT1600/BTE/IP65

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €2.150,73

€2.602,38

Of betaal in termijnen vanaf €86,75 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT1600/BTE/IP65
EAN	5414503121356
Class	Three-phase energy-efficient isolating transformer IP65
Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	1600VA (1.6KVA)
Voltage drop (dU%)	3.2%
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP65
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Efficiency	96%
Size A x B x C (mm)	309x234x261mm
Size D (mm)	87mm
Size E (mm)	110mm
Weight	32kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Finish	Vacuum and pressure varnish impregnated
