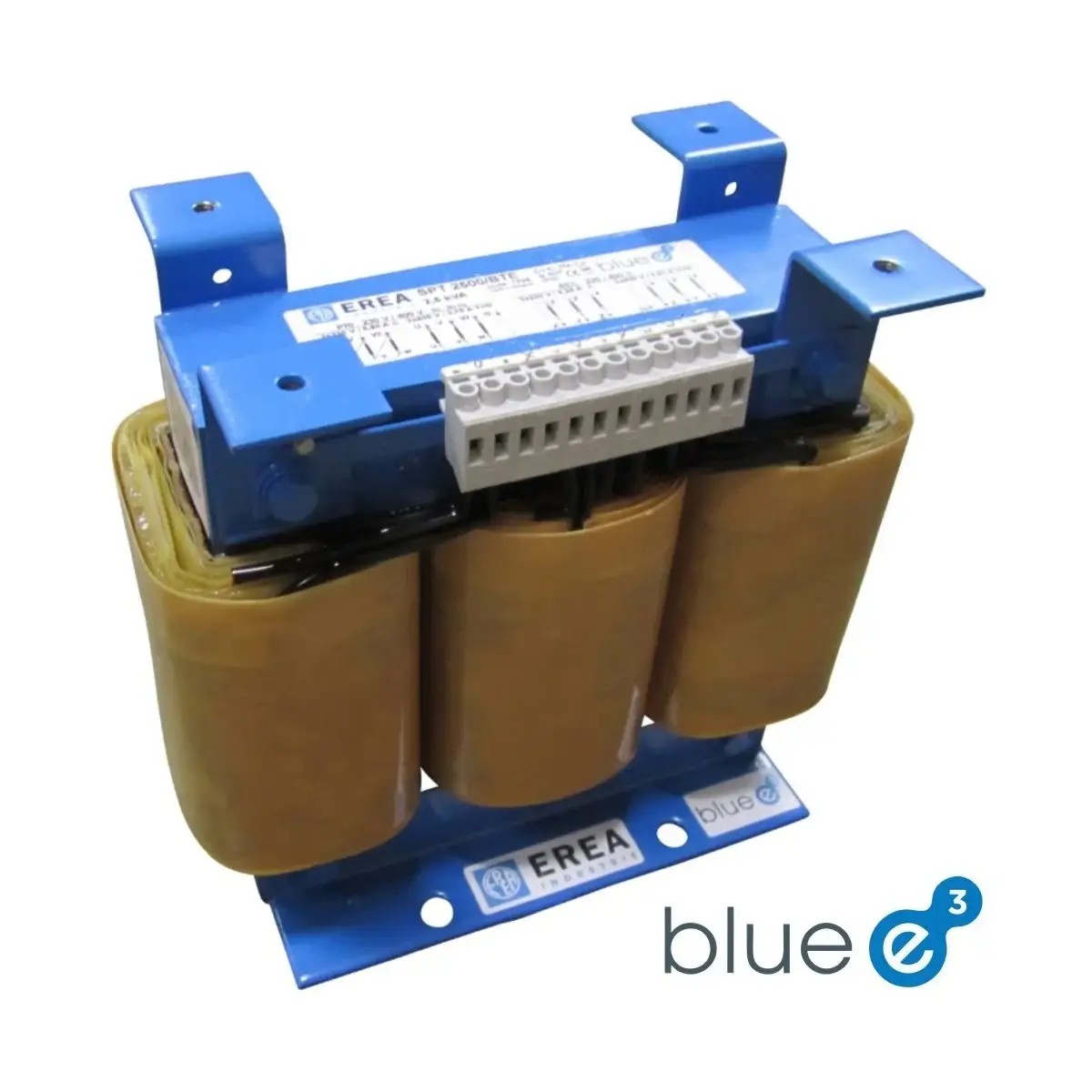

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 2500VA (2.5KVA) SPT2500/BTE

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 2500VA (2.5KVA) SPT2500/BTE

Name: EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 2500VA (2.5KVA) SPT2500/BTE
Brand: EREA
SKU: SPT 2500/BTE
Price: 1746.26 EUR
Availability: InStock

Item No.: SPT 2500/BTE

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €1.443,19

€1.746,26

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €58,21 p/m. Meer info

Description

Technical specifications

Brand	EREA
Commercial Order Number	SPT 2500/BTE
EAN	5414503105189
Class	Energy Efficient Protective Transformer (BTE)

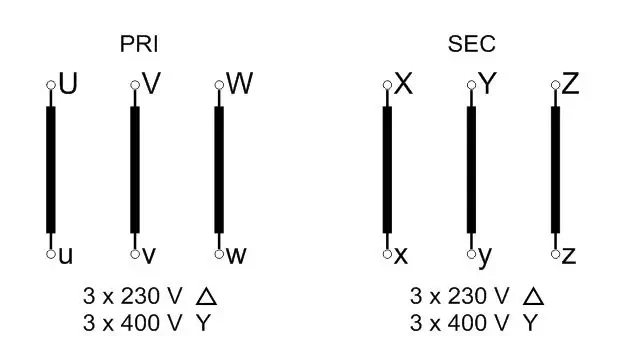

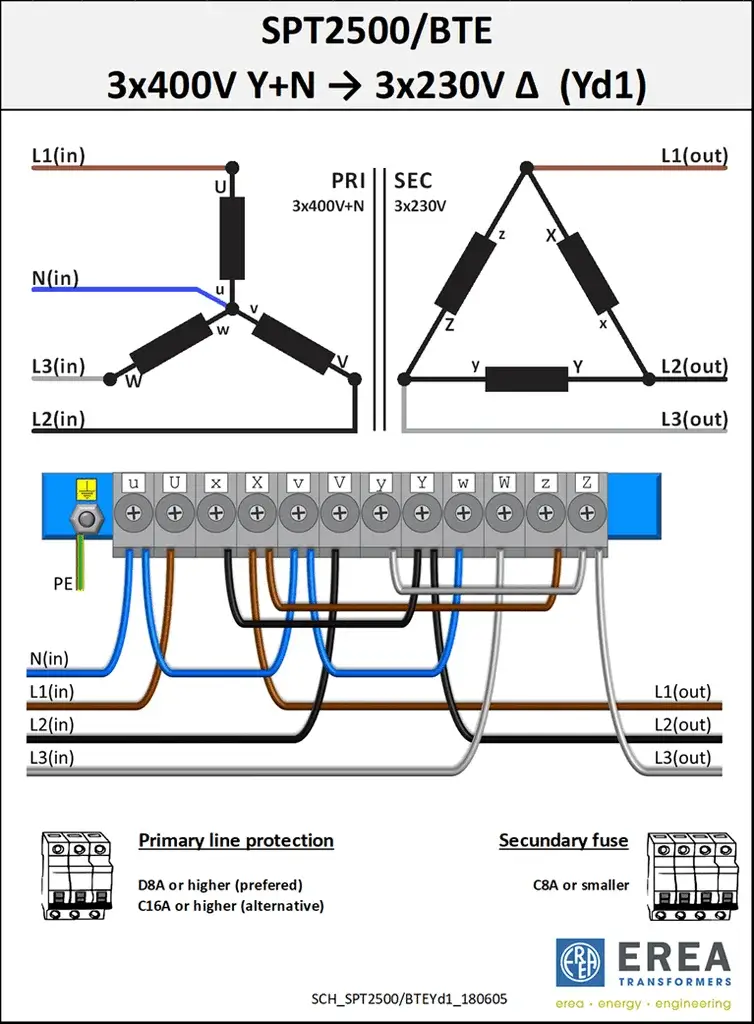

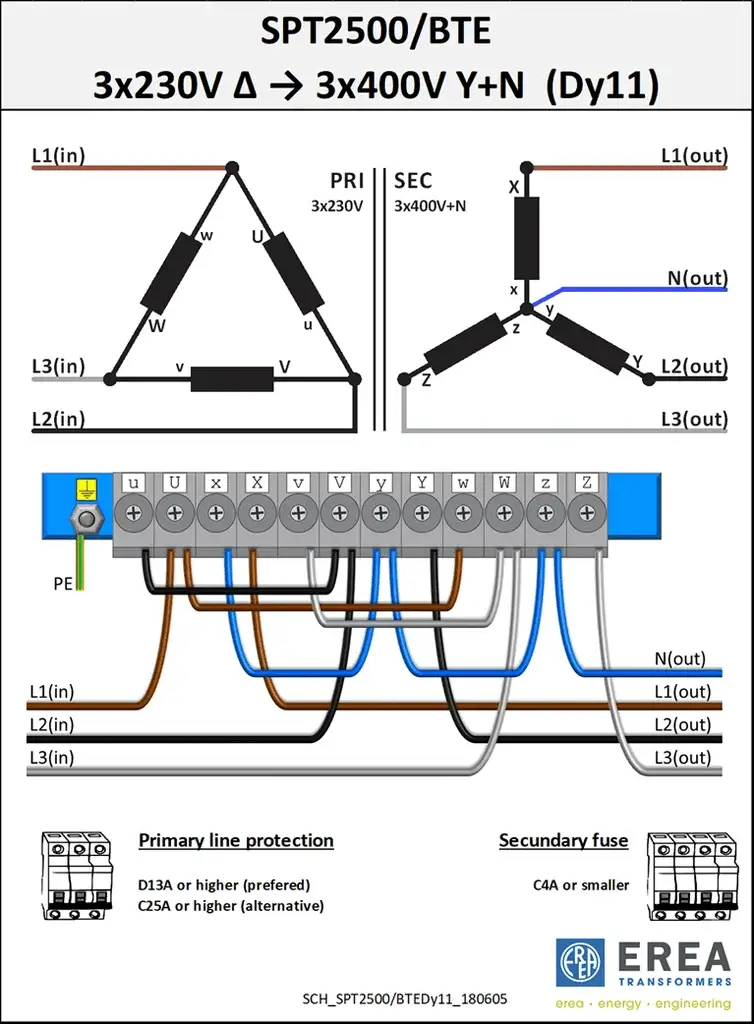

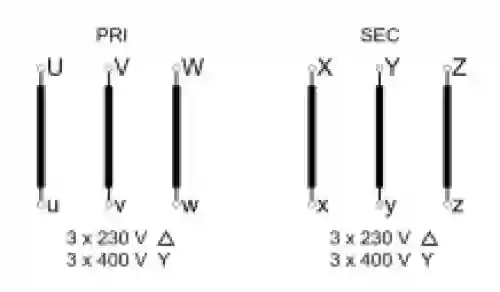

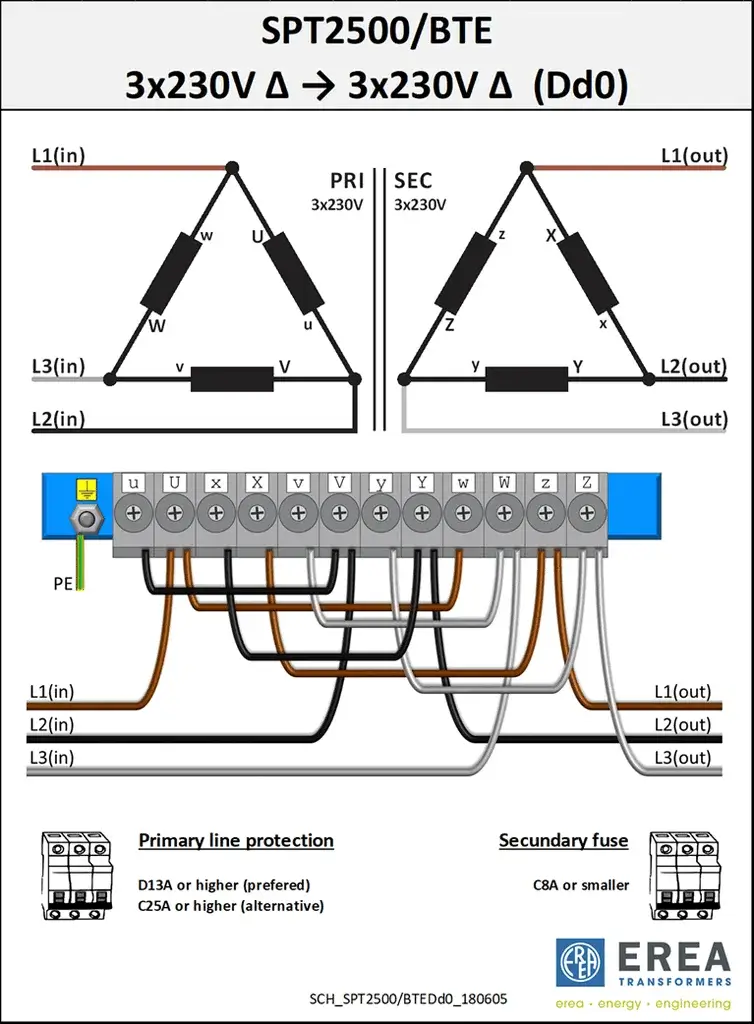

Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	2500VA (2.5KVA)
Degree of protection	IP00
Diëlektrische vastheid (Vac)	4500 Vac
Voltage drop (dU%)	3.2%
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Max. ambient temperature Ta (°C)	40 °C
Temperature Class	F
Application	For Industrial Applications
Efficiency	96%
Pcu (W)	69 W
Po (W)	35 W

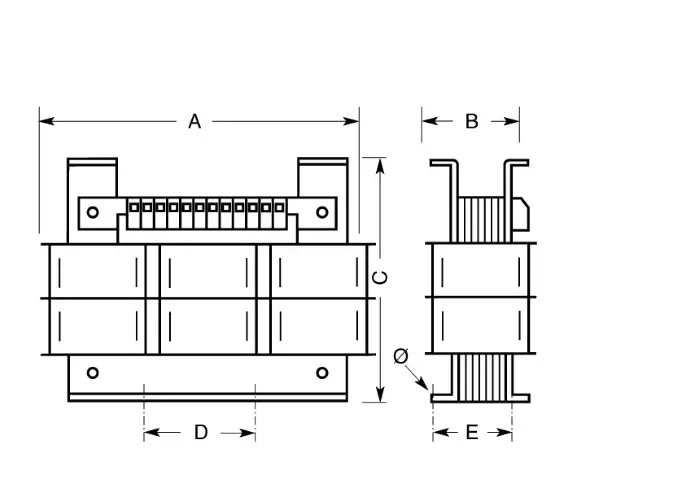

Size A x B x C (mm)	260x140x243mm
Size D (mm)	100mm
Size E (mm)	117mm
Weight	27.3kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Finish	Vacuum and pressure impregnated
Φ (mm)	11 mm

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20BTE/020
Option enclosure IP23 (accessoire)	K23BTE/020
Option Damper (accessoire)	SILENT BLOCK 20
