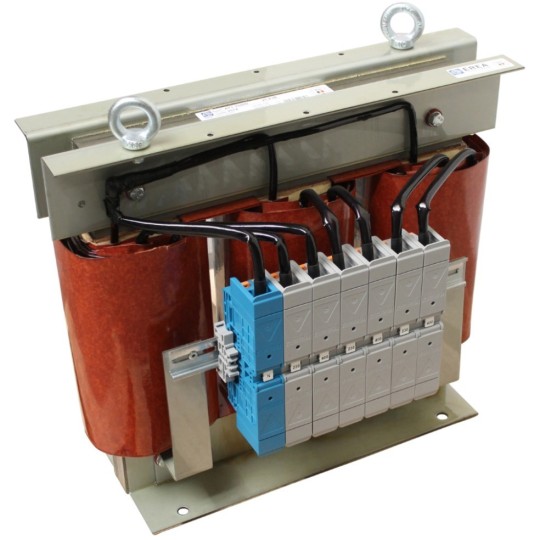

EREA 3 phase Autotransformer 0-230-400V 25kVA ATT 25000

Item No.: ATT 25000

Delivery time: Please contact us for current delivery times

(Price excluding VAT) 4.533,92
5.486,04

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf 182,87 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number ATT 25000
EAN 5414503000347
Class Three-phase autotransformer

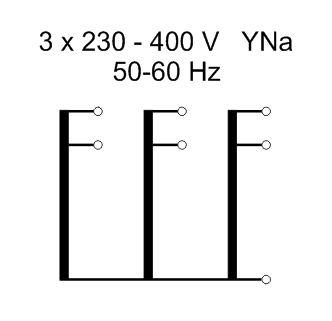

Primary voltage 3x 0-230-400 Vac Y+N
Secondary voltage 3x 0-230-400 Vac Y+N
Rated power 25000VA (25KVA)
Degree of protection IP00
Voltage drop (dU%) 1.03%
Efficiency (%) 99.6%
Pcu (W) 259 W
Po (W) 79 W
Dielectric strength referred to frame (Vac) 2500 Vac
Standards EN 60726
EN 60076
Application For Industrial Applications
Protection class Prepared for class I
Maximum ambient temperatur ta (°C) 40 °C
Temperature Class B

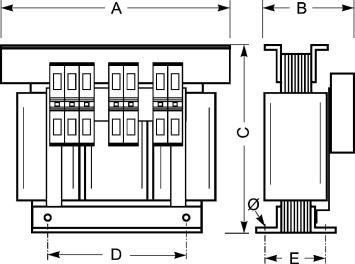

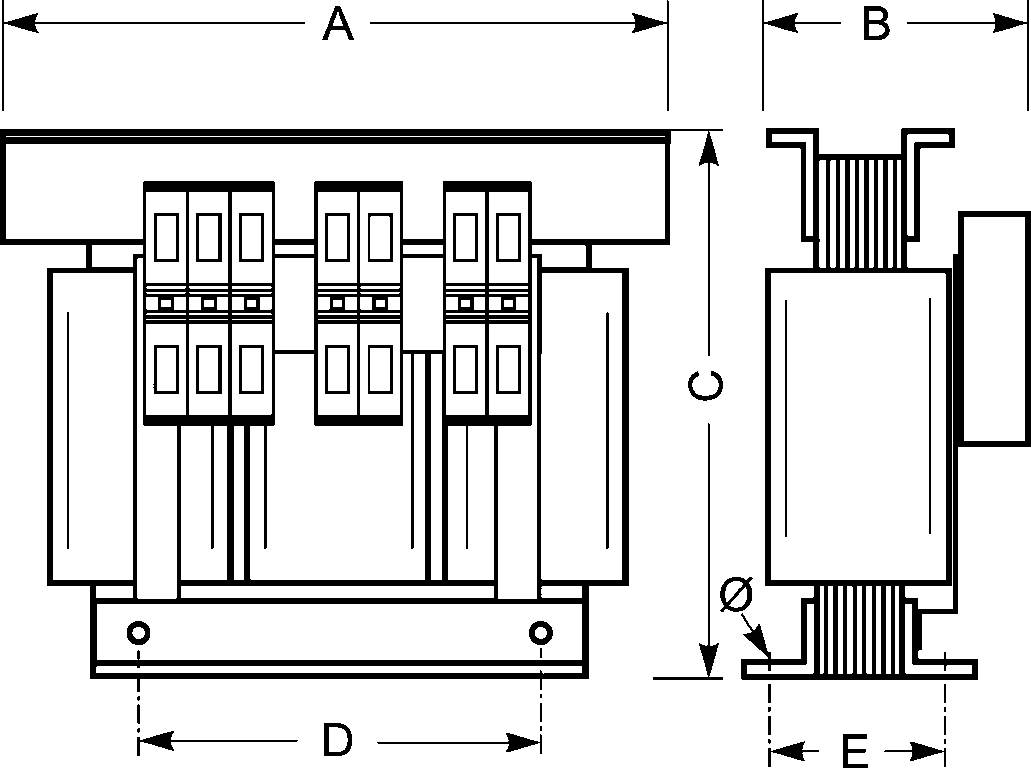

Size A x B x C (mm) 480x240x415mm
Size D (mm) 320mm
Size E (mm) 150mm
Weight 80.4kg
Primary connection Nut fastening M8
Secondary connection Nut fastening M8
Φ (mm) 11 mm
Finish Vacuum and pressure varnish impregnated

Options

On request Degree of protection IP23, IP44 and IP65
Other voltages and other powers
Connections with sockets and power cords
With fuses
Treatment for tropical resistance
Option Enclosure IP20 (accessory) U 2222720
Option Enclosure IP23 (accessory) K23EI400/001
Option Enclosure IP44 (accessory) K44EI400/010
Option Damper (accessory) SILENT BLOCK 20
