Overview

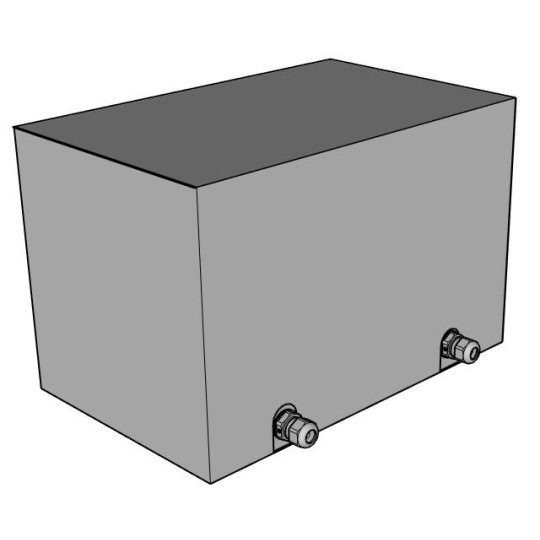

EREA 3 phase Autotransformer 0-230-400V 20kVA ATT 20000/IP65

Name: EREA 3 phase Autotransformer 0-230-400V 20kVA ATT 20000/IP65
Brand: EREA
SKU: ATT 20000/IP65
Price: 7397.81 EUR
Availability: InStock

Item No.: ATT 20000/IP65

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €6.113,89

€7.397,81

Of betaal in termijnen vanaf €246,59 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	ATT 20000/IP65
EAN	5414503083388
Class	Three-phase autotransformer
Primary voltage	3x 0-230-400 Vac Y+N
Secondary voltage	3x 0-230-400 Vac Y+N
Rated power	20000VA (20KVA)
Degree of protection	IP65
Voltage drop (dU%)	1.8%
Efficiency (%)	98%
Pcu (W)	700 W
Po (W)	110 W
Dielectric strength referred to frame (Vac)	2500 Vac
Standards	EN 60726 EN 60076
Application	For Industrial Applications
Protection class	Prepared for class I
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	F
Size A x B x C (mm)	539x349x433mm
Weight	101kg
Primary connection	Nut fastening M8
Secondary connection	Nut fastening M8
Finish	Vacuum and pressure varnish impregnated
