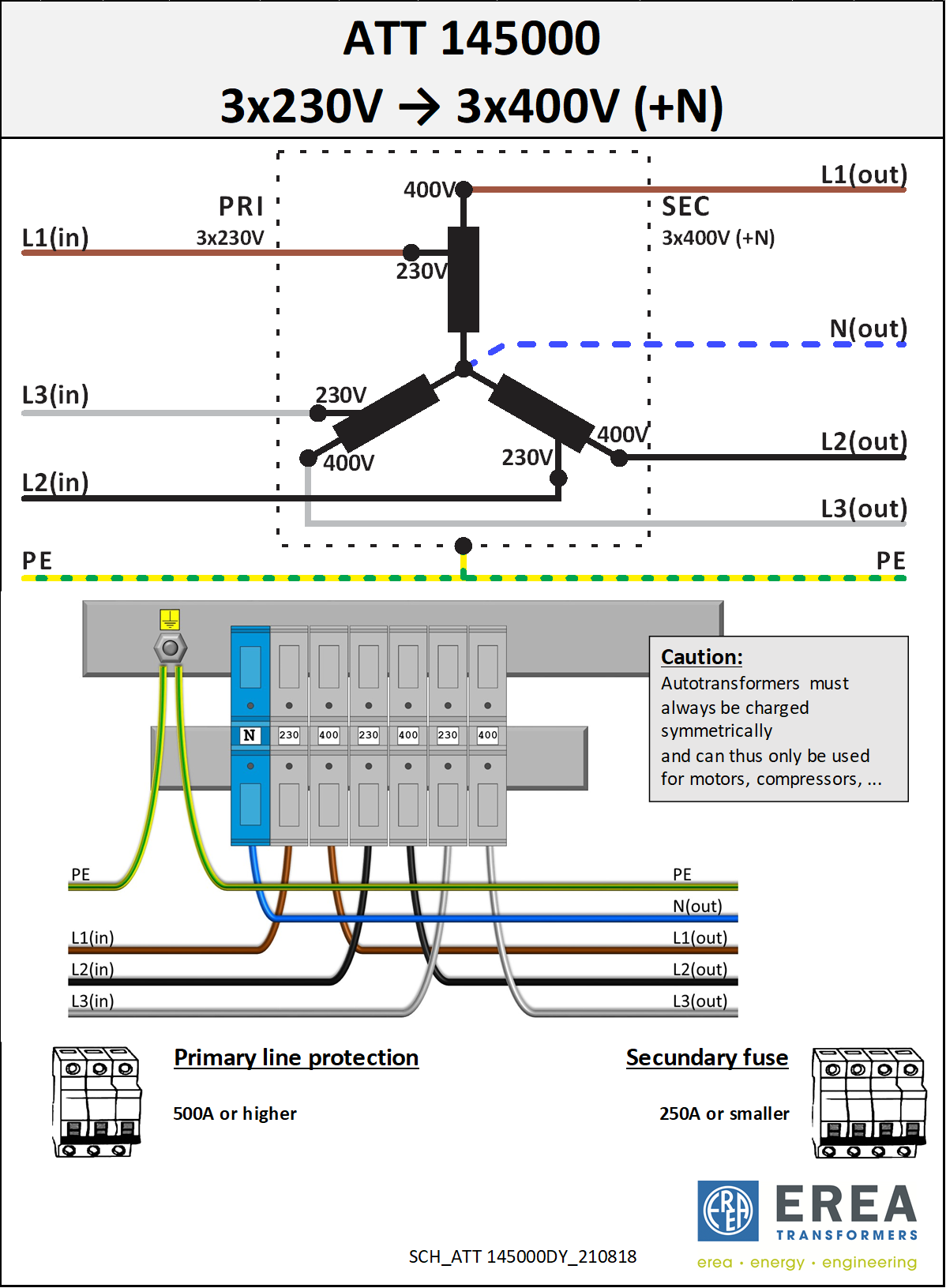

Aansluitschema 3x230V / 3x400V ATT 145000

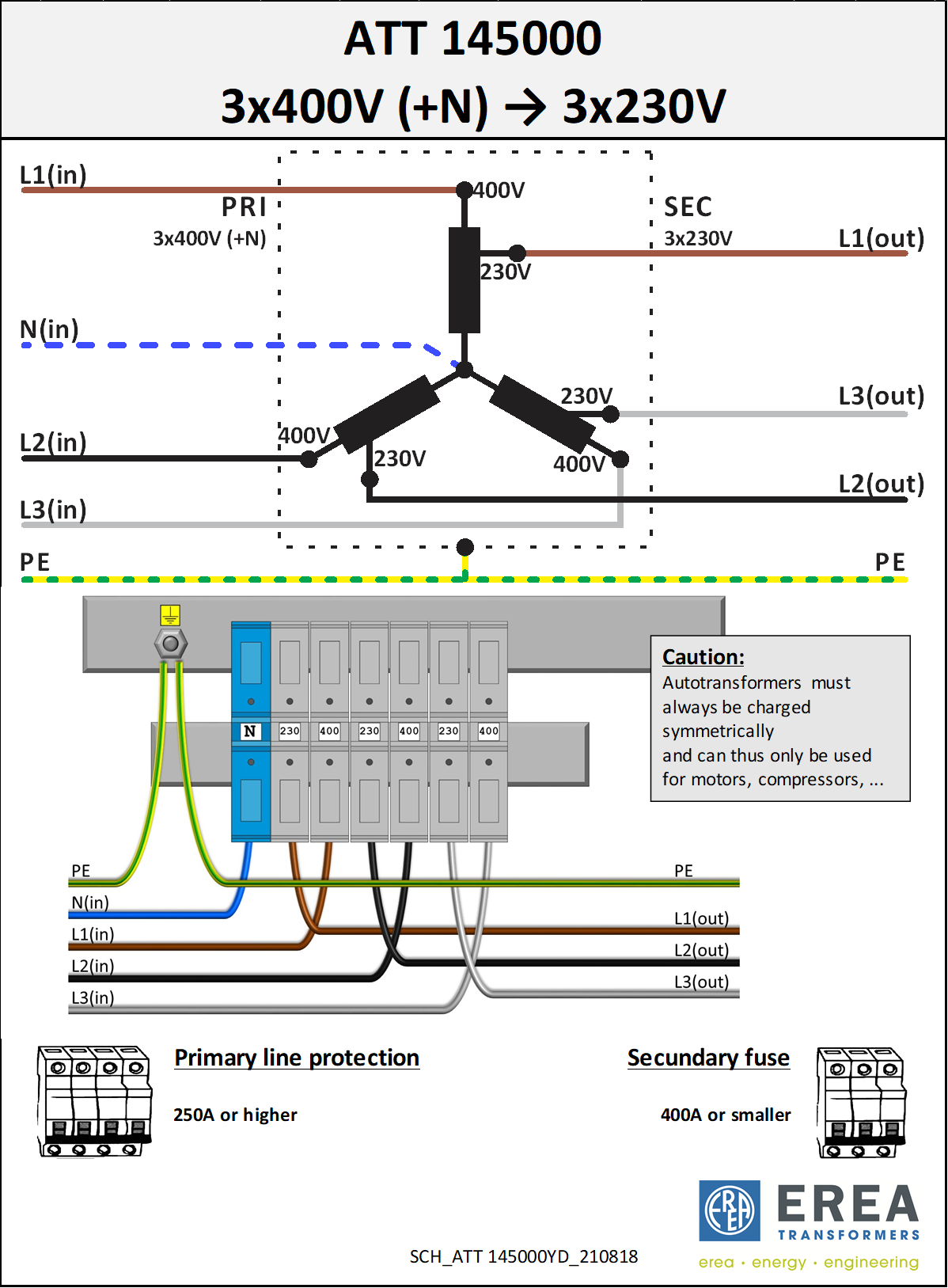

Aansluitschema 3x400V / 3x230V ATT 145000

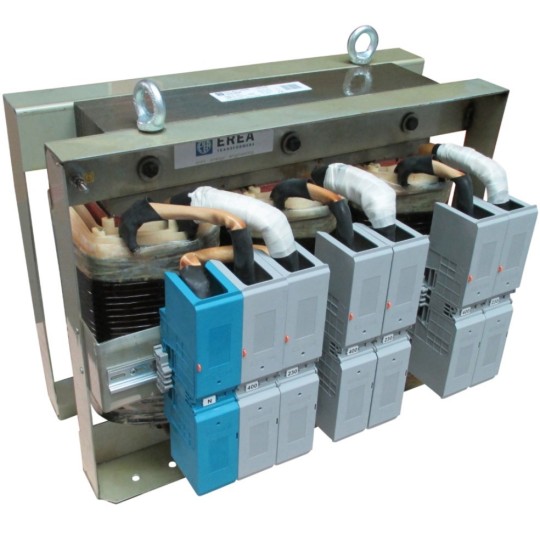

EREA 3 phase Autotransformer 0-230-400V 145kVA ATT 145000

Name: EREA 3 phase Autotransformer 0-230-400V 145kVA ATT 145000
Brand: EREA
SKU: ATT 145000
Price: 20643.13 EUR
Availability: InStock

Item No.: ATT 145000

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €17.060,44

€20.643,13

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €688,10 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	ATT 145000
EAN	5414503092441
Class	Three-phase autotransformer
Primary voltage	3x 0-230-400 Vac Y+N
Secondary voltage	3x 0-230-400 Vac Y+N
Rated power	145000VA (145KVA)
Degree of protection	IP00
Voltage drop (dU%)	1.15%
Efficiency (%)	99%
Pcu (W)	1125 W
Po (W)	295 W
Dielectric strength referred to frame (Vac)	2500 Vac
Standards	EN 60726 EN 60076
Application	For Industrial Applications
Protection class	Prepared for class I
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	F

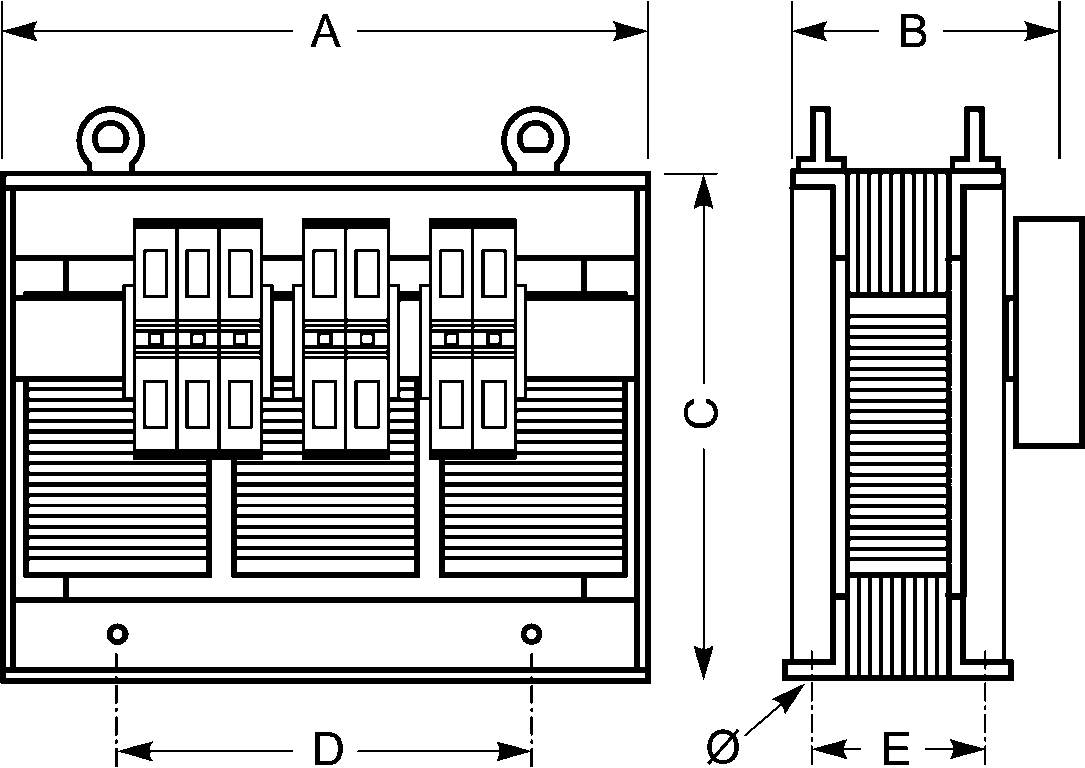

Size A x B x C (mm)	640x385x500mm
Size D (mm)	400mm
Size E (mm)	210mm
Weight	255kg
Primary connection	Nut fastening M16
Secondary connection	Nut fastening M16
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Degree of protection IP23, IP44 and IP65 Other voltages and other powers Connections with sockets and power cords With fuses Treatment for tropical resistance
Option Enclosure IP20 (accessory)	U 2222723
Option Enclosure IP23 (accessory)	K23EI500/002
Option Enclosure IP44 (accessory)	K44EI500/010
Option Damper (accessory)	SILENT BLOCK 75
