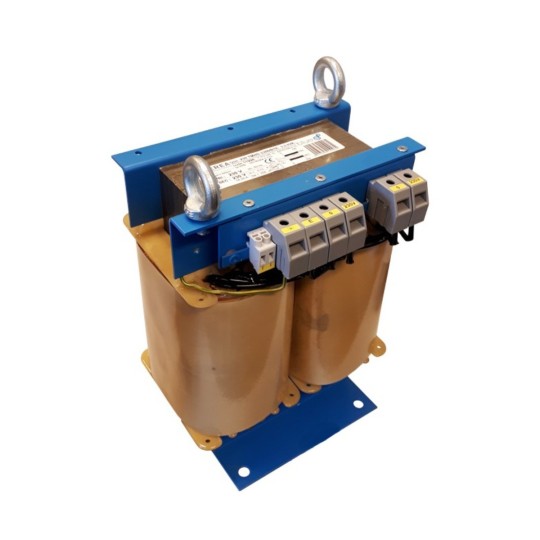

EREA 1 phase medical transformer 230V//230V 6,3kVA-BTE 230TMHD6300/BTE

Name: EREA 1 phase medical transformer 230V//230V 6,3kVA-BTE 230TMHD6300/BTE
Brand: EREA
SKU: 230TMHD6300/BTE
Price: 3074.96 EUR
Availability: InStock

Item No.: 230TMHD6300/BTE

Delivery time: Please contact us for current delivery times

Trillingsdemper

€4.757,87 €3.074,96

(Price excluding VAT): €2.541,29

You Save: 35%

Request a quote?

Of betaal in termijnen vanaf €102,50 p/m. Meer info

EAN

5414503103659

SKU

230TMHD6300/BTE

Technical specifications
Brand	EREA
Commercial Order Number	230TMHD6300/BTE
EAN	5414503103659
Class	Single-phase isolating transformer energy-efficient for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 6300VA - PTC temperature sensor
Type	Isolating transformer (separate windings)
Primary voltage	230 Vac
Secondary voltage	230 Vac
Rated power	6300VA (6.3KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP00
Standards	EN 61558-2-15
Maximum ambient temperatur ta (°C)	50 °C
Application	For medical used rooms
Protection class	Prepared for class I
Temperature Class	B
Voltage drop (dU%)	2.2%
Efficiency	97.6%
Pcu (W)	129 W
Po (W)	22 W
Size A x B x C (mm)	280x210x365mm
Size D (mm)	180mm
Size E (mm)	153mm
Weight	62kg
Primary connection	Screw terminals
Secondary connection	Screw terminals
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Special versions - PT 100 temperature sensor
Option Enclosure IP20 (accessory)	-
Option Enclosure IP23 (accessory)	-
Option Damper (accessory)	SILENT BLOCK 50
