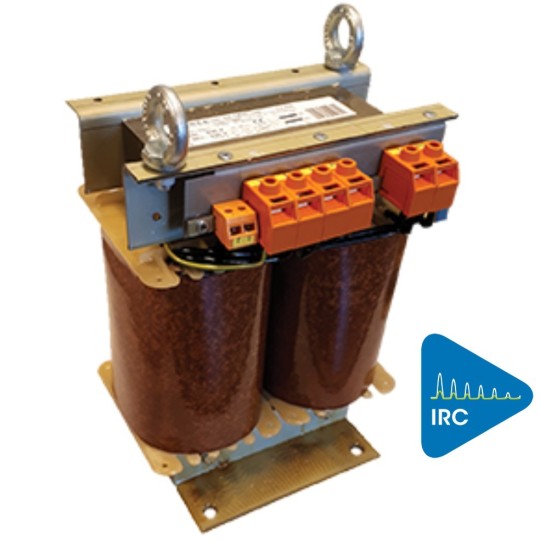

EREA 1 phase medical transformer 230V//230V 6,3kVA 230TMHD6300

Name: EREA 1 phase medical transformer 230V//230V 6,3kVA 230TMHD6300
Brand: EREA
SKU: 230TMHD6300
Price: 2367.10 EUR
Availability: InStock

Item No.: 230TMHD6300

Delivery time: Please contact us for current delivery times

Trillingsdemper

€3.662,60 €2.367,10

(Price excluding VAT): €1.956,28

You Save: 35%

Request a quote?

Of betaal in termijnen vanaf €78,90 p/m. Meer info

EAN

5414503098009

SKU

230TMHD6300

Technical specifications
Brand	EREA
Commercial Order Number	230TMHD6300
EAN	5414503098009
Class	Single-phase isolating transformer for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 6300VA - PTC temperature sensor
Type	Isolating transformer (separate windings)
Primary voltage	230 Vac
Secondary voltage	230 Vac
Power	6.3KVA
Degree of protection	IP00
Voltage drop (dU%)	2.4%
Dielectric Strenght (Vac)	4500Vac
Dielectric strength to mass (Vac))	2500Vac
Standards	EN 61558-2-15
Max. ambient temperature Ta (°C)	50 °C
Temperature class	B
Application	For all applications in medical purpose rooms
Protection class	Prepared for class I
Efficiency	96.9%
Pcu (W)	142 W
Po (W)	57 W
Size A x B x C (mm)	280x235x365mm
Size D (mm)	180mm
Size E (mm)	178mm
Weight	64kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Finish	Vacuum- and pressure- varnish impregnated
Φ (mm)	11mm

Options
On request	Special versions - PT100 temperature sensor
Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
Option Silent Block (accessory)	SILENT BLOCK 50
