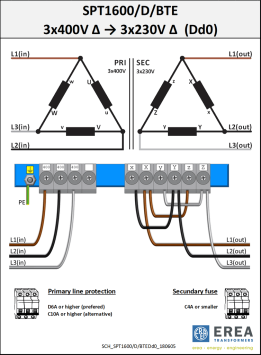

Connection_Diagram_DD0_SPT_1600_D_BTE
Connection_Diagram_DD0_SPT_1600_D_BTE
Connection_Diagram_Dy11_SPT_1600_D_BTE
Transformator_SPT1600DBTE
SPT1600/D/BTE
Dimensions_SPT1600/D/BTE
Connection_Diagram_DD0_SPT_1600_D_BTE
Connection_Diagram_DD0_SPT_1600_D_BTE
Connection_Diagram_Dy11_SPT_1600_D_BTE
Transformator_SPT1600DBTE
Pin-it

EREA 3 phase transformer Upri 400V ∆ // Usec 230V ∆ - 400V Y+N 1600VA (1.6KVA) SPT1600/D/BTE

Item No.: SPT1600/D/BTE
EREA
Current delivery time (contact us)

Enclosure

Enclosure

Vibration damper

€1.496,85 €948,43
(Price excluding VAT): €783,83
You Save: 37%

Of betaal in termijnen vanaf €31,61 p/m. Meer info

EAN
5414503105295
SKU
SPT1600/D/BTE

Technical specifications
Brand EREA
Commercial Order Number SPT 1600/D/BTE
EAN 5414503105295
Class Energy Efficient Protective Transformer (BTE)

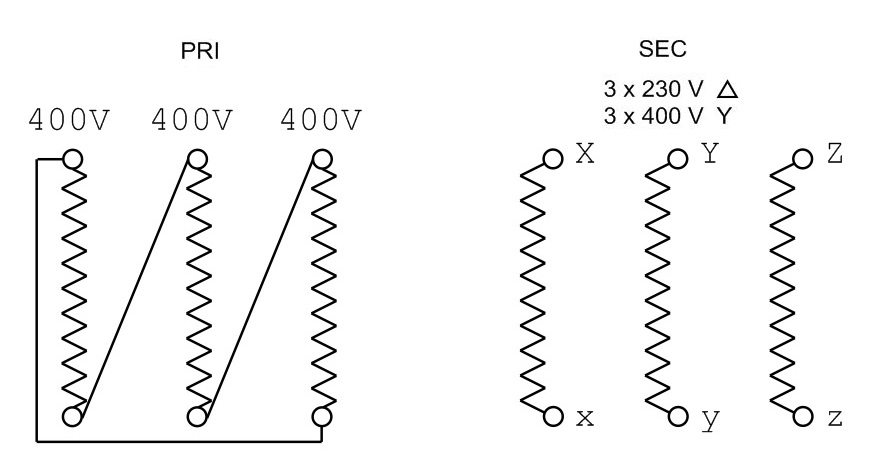

Primary voltage 3x 400 Vac ∆
Secondary voltage 3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 1600VA (1.6KVA)
Degree of protection IP00
Diëlektrische vastheid (Vac) 4500 Vac
Pcu (W) 46 W
Po (W) 26 W
Voltage drop (dU%) 3.2%
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
Maximum ambient temperatur Ta (°C) 40 °C
Temperature Class F
Application For Industrial Applications
Efficiency  95,7%
Size A x B x C (mm) 225x135x215mm
Size D (mm) 87mm
Size E (mm) 110mm
Weight 19kg
Primary connection Screw terminals 4 mm²
Secondary connection Screw terminals 4 mm²
Finish Vacuum and pressure impregnated
Φ (mm) 10 mm
Protection Class Prepared for Protection Class I

Options
On request Protection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire) K20BTE/010
Option enclosure IP23 (accessoire) K23BTE/010
Option Damper (accessoire) SILENT BLOCK 20
