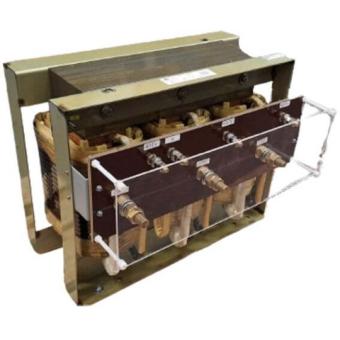

PVT6000/IRC

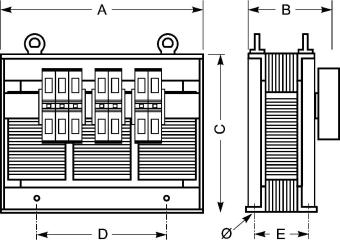

Dimensionering PVT6000/IRC

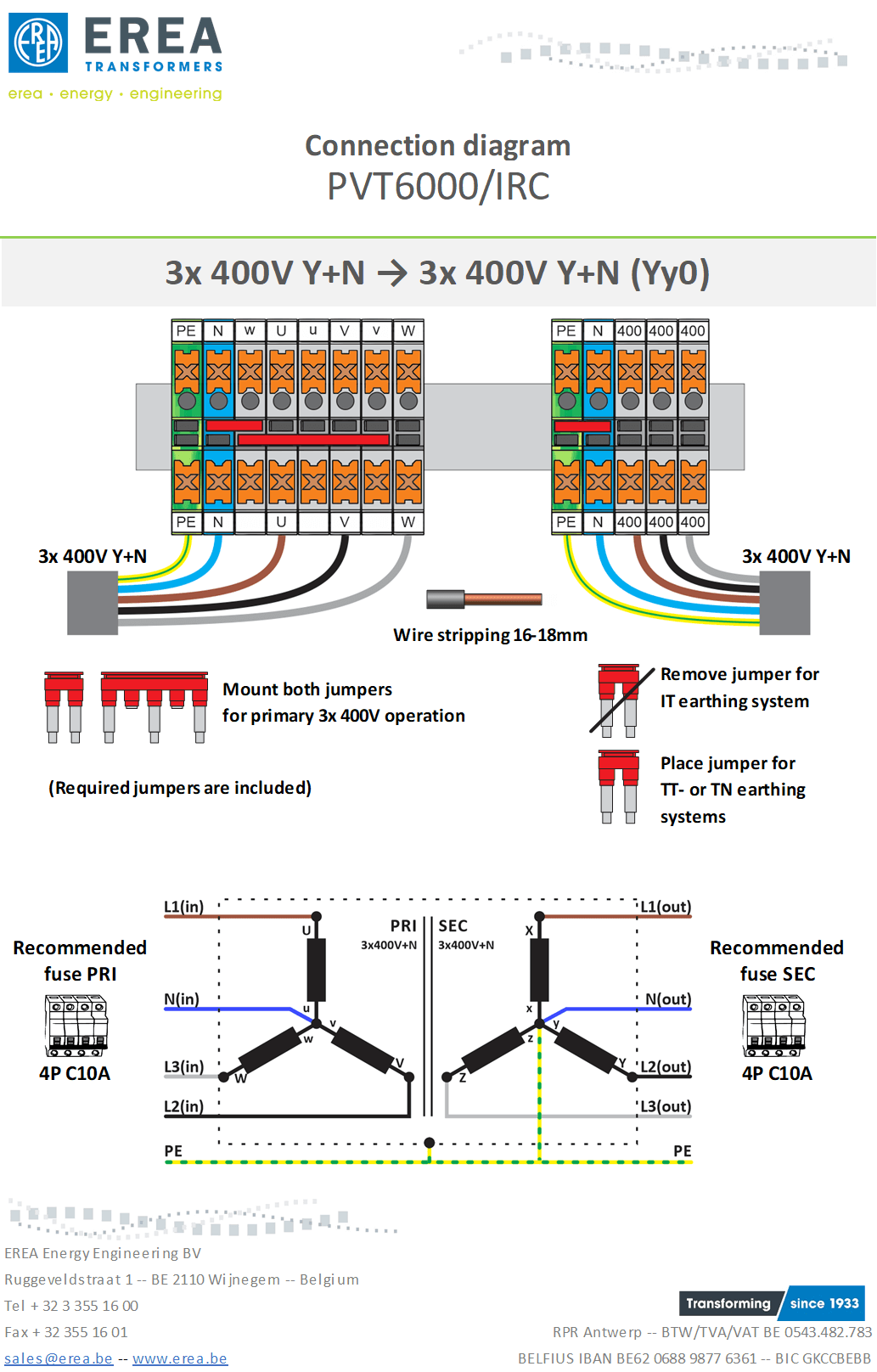

Elektrisch schema PVT6000/IRC

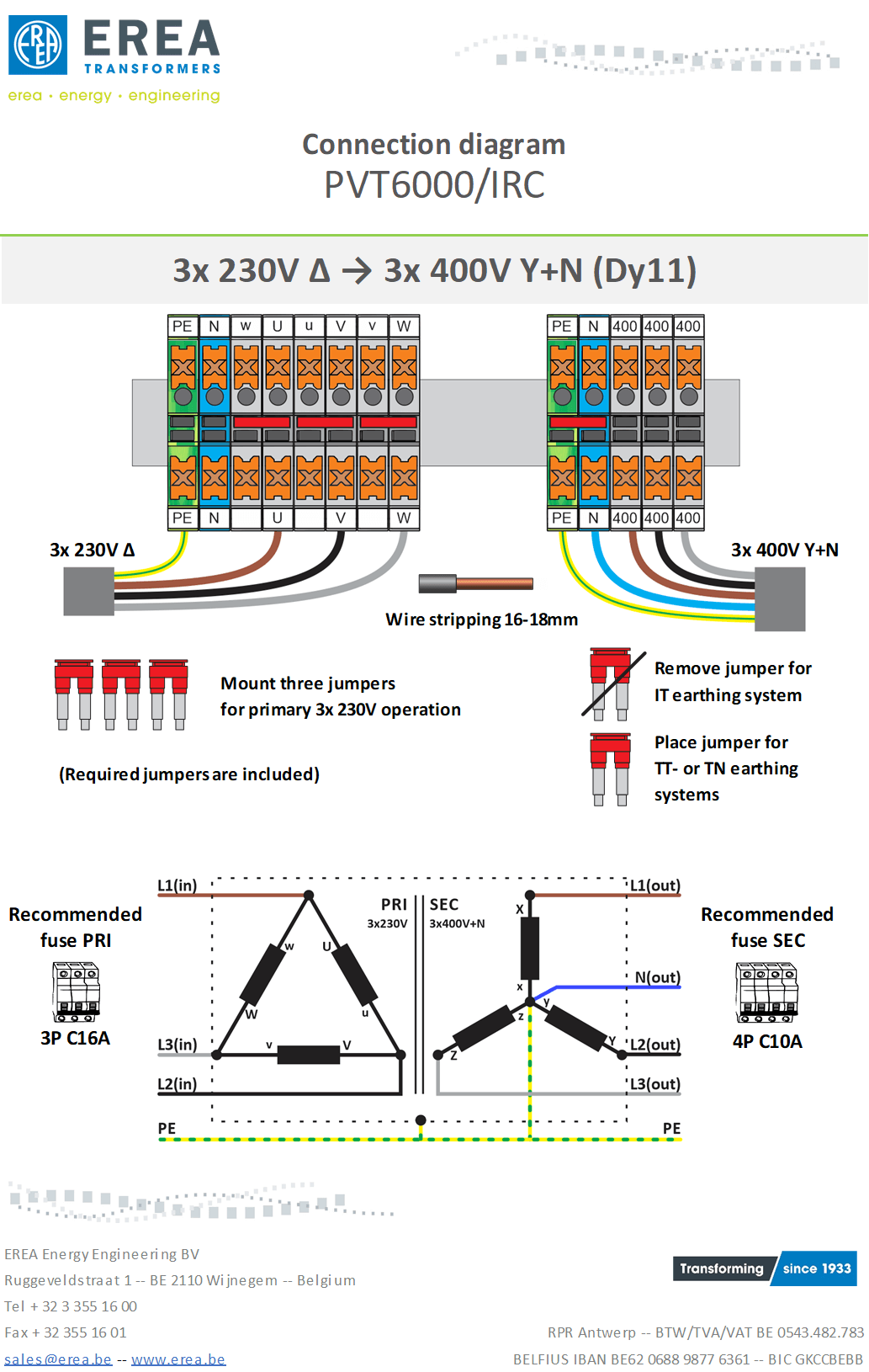

Aansluitschema Dy11 PVT6000/IRC
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 6000VA (6KVA) PVT6000/IRC
Symbool PVT6000/IRC
PVT6000/IRC
Dimensionering PVT6000/IRC
Elektrisch schema PVT6000/IRC
Aansluitschema Dy11 PVT6000/IRC
EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 6000VA (6KVA) PVT6000/IRC
Symbool PVT6000/IRC
Pin-it

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 6000VA (6KVA) PVT6000/IRC

Item No.: PVT 6000/IRC
EREA

Delivery time: Please contact us for current delivery times

Enclosure

Vibration damper

€3.539,67 €2.477,77
(Price excluding VAT): €2.047,75
You Save: 30%
Request a quote?

Of betaal in termijnen vanaf €82,59 p/m. Meer info

EAN
5414503118462
SKU
PVT 6000/IRC

Technical specifications

BrandEREA
Commercial Order NumberPVT 6000/IRC
EAN5414503118462
ClassThree Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)
Primary voltage3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage3x 400 Vac Y+N
Rated power6000VA (6KVA)
Degree of protectionIP00
Efficiency 97,2%
Pcu (W)140W
Po (W)30W
Voltage drop (dU%)2.1%
Dielectric strength to mass (Vac)2500 Vac
StandardsEN 61558-2-4
Maximum ambient temperatur ta (°C)40 °C
Temperature ClassB
Size A x B x C (mm)420x100x365mm
Size D (mm)280mm
Size E (mm)163mm
Weight85kg
Primary connectionScrew terminals 4 mm²
Secondary connectionScrew terminals 4 mm²
Φ (mm)11 mm
Protection ClassPrepared for Protection Class I


Options

On requestProtection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire)K20PVT/006
Option enclosure IP23 (accessoire)K23PVT/006
Option enclosure IP44 (accessoire)K44EI400/010
Option Damper (accessoire)SILENT BLOCK 50
