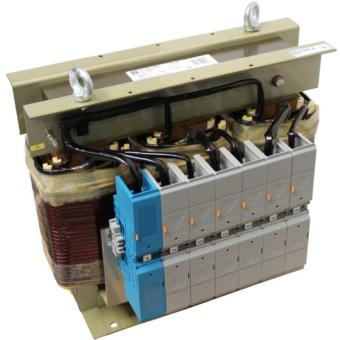

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 400V Y+N 11000VA (11KVA) ECT11000/IRC

Item No.: ECT 11000/IRC
3.948,54
(Price excluding VAT)
Enclosure
Trillingsdemper
Description

Technical specifications

Brand EREA
Commercial Order Number ECT11000/IRC
EAN 5414503115386
Class Driefasen beschermingstransformator
Primary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3 x 400 Vac Y+N
Rated power 11000VA (11KVA)
Degree of protection IP00
Voltage drop (dU%) 2%
Dielectric strength to mass (Vac) 2500 Vac
Standards EN 61558-2-4
40 °C
Application Voor elektrische laadpalen
Temperature Class B
Efficiency  97,5%
Geluidsniveau 40dB(A)

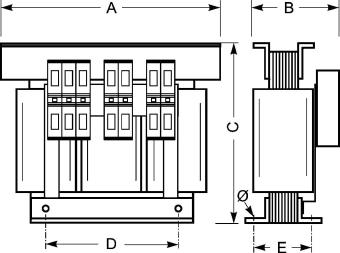

Size A x B x C (mm) 420x270x365mm
Size D (mm) 280 mm
Size E (mm) 223 mm
Weight 121kg
Primary connection Screw terminals 10 mm;
Secondary connection Screw terminals 10 mm;
Finish Vacuum and pressure impregnated
Φ (mm) 11 mm

Options

On request Speciale uitvoeringen
Option enclosure IP20 (accessoire) K20ECT/040
Option enclosure IP23 (accessoire) K23ECT/040
Option Damper (accessoire) SILENT BLOCK 50
