PVT15000/IRC

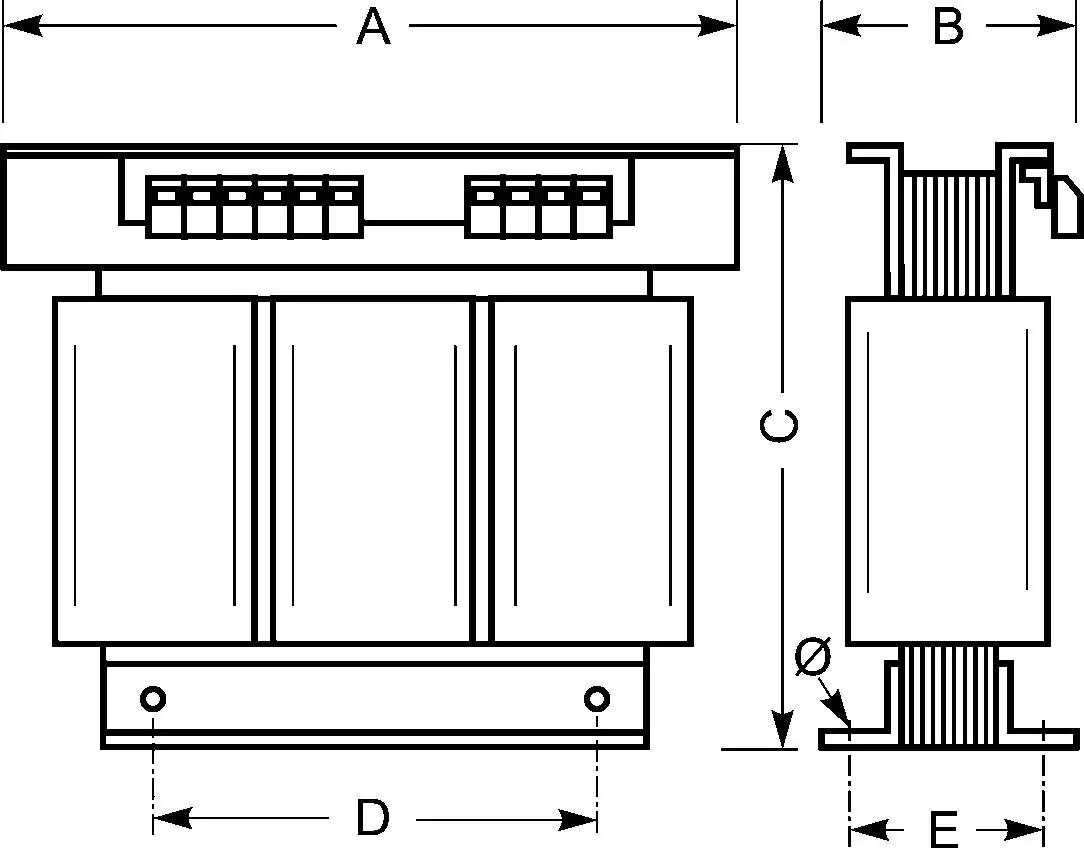

Dimensies PVT15000/IRC

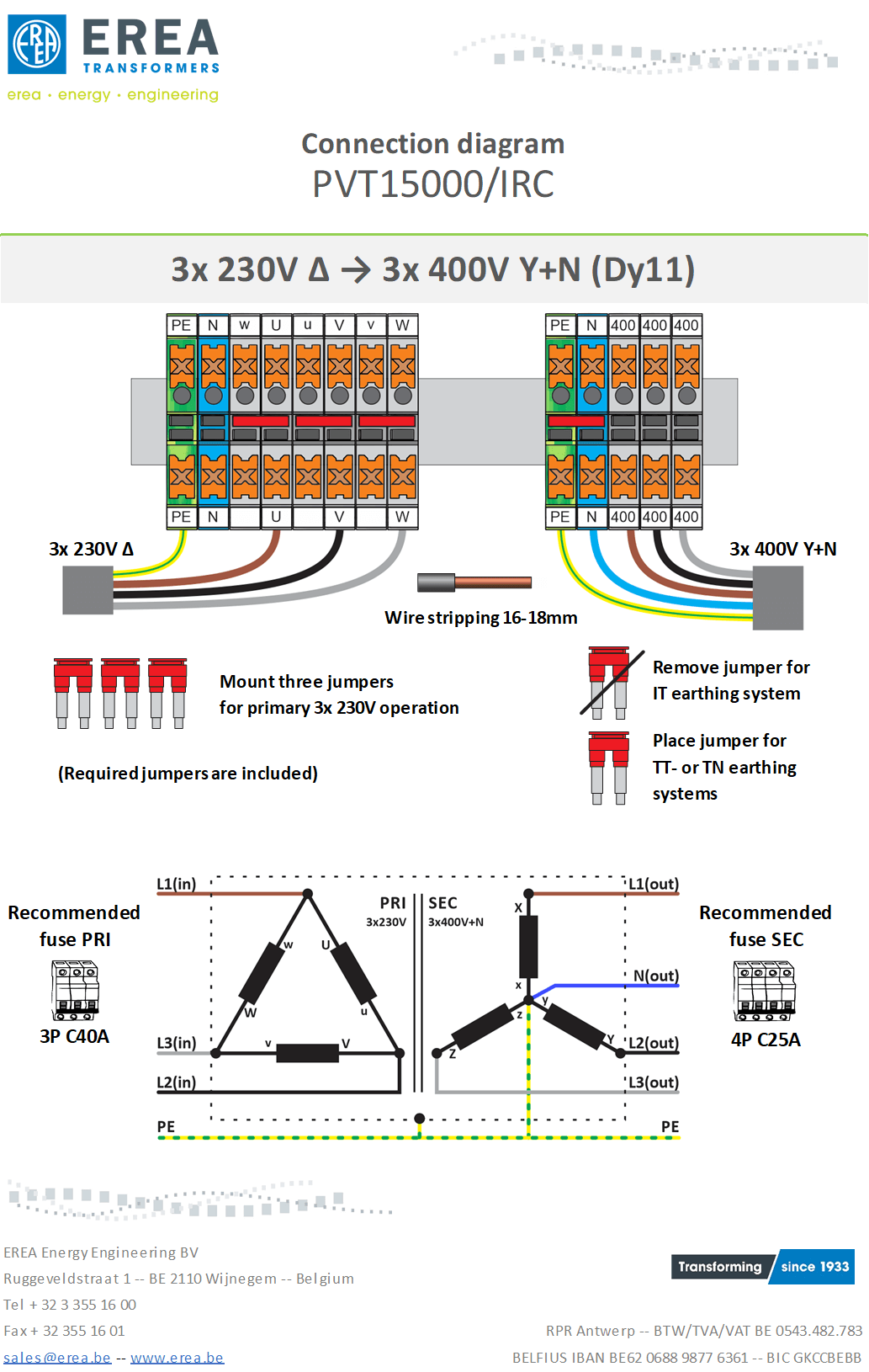

Aansluit schema_Dy11_PVT15000_IRC.png

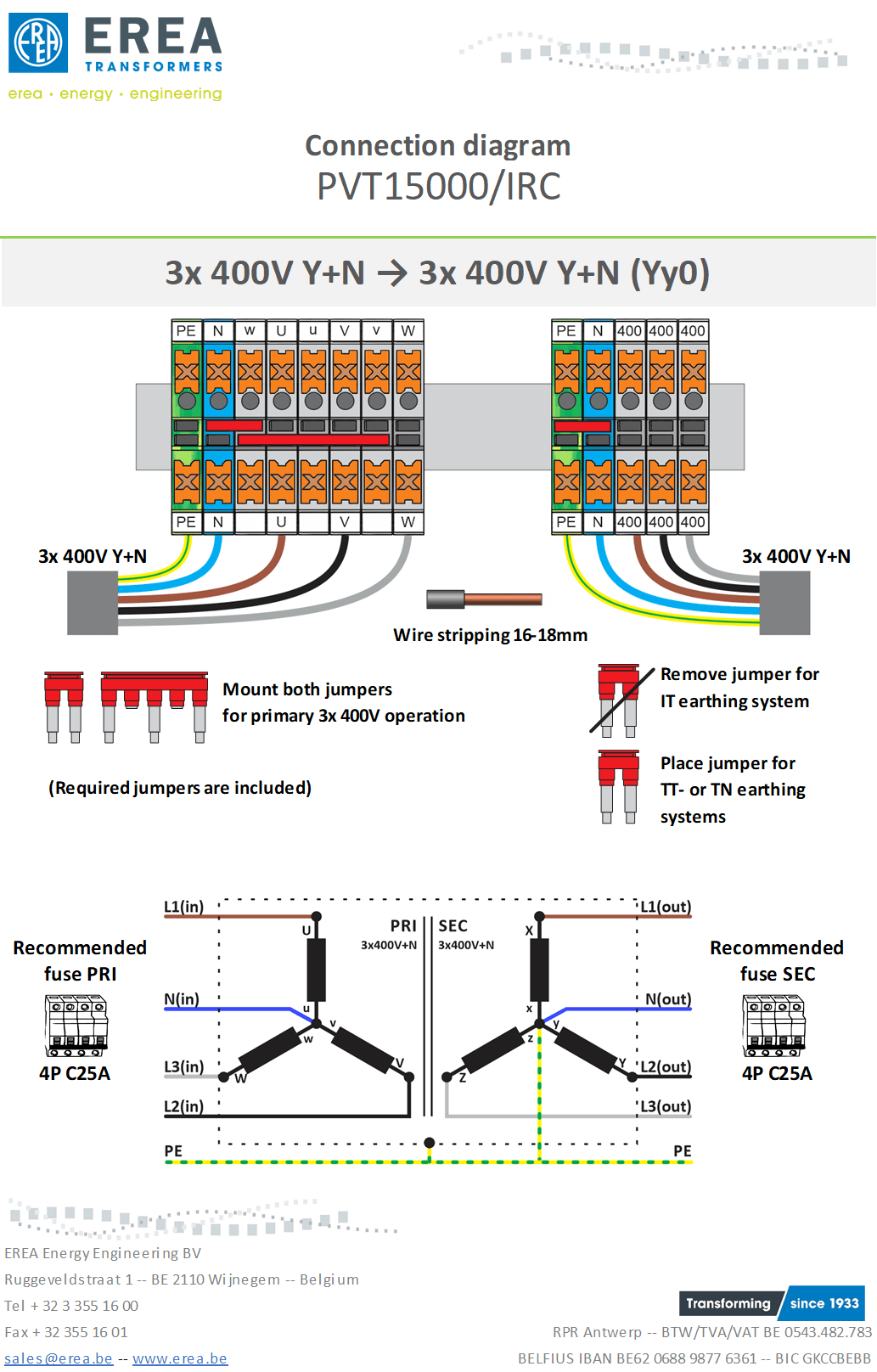

Aansluit schema_Yy0_PVT15000_IRC.png

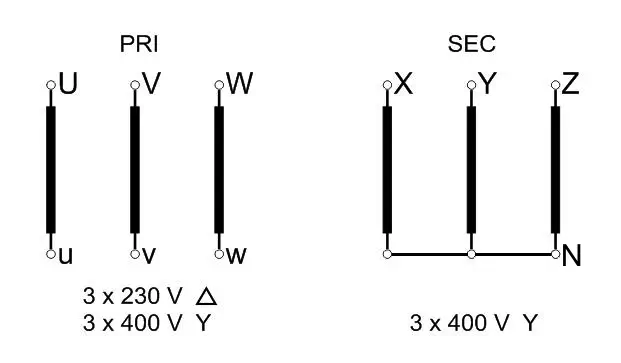

Elektrisch schema PVT15000/IRC
Symbool scheidingstrafo PVT15000/IRC
PVT15000/IRC
Dimensies PVT15000/IRC
Aansluit schema_Dy11_PVT15000_IRC.png
Aansluit schema_Yy0_PVT15000_IRC.png
Elektrisch schema PVT15000/IRC
Symbool scheidingstrafo PVT15000/IRC
Pin-it

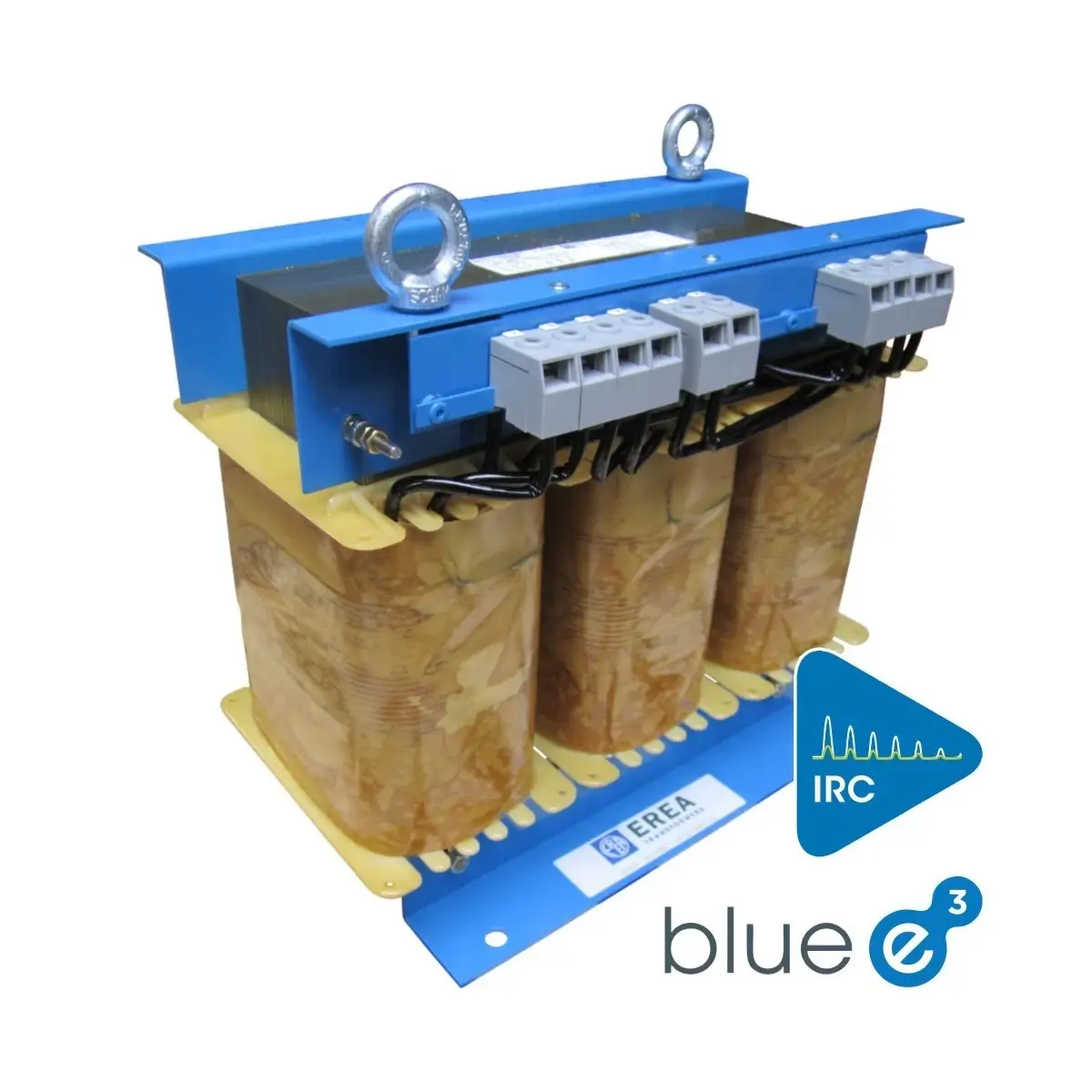

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 400V Y+N 15000VA (15KVA) PVT15000/IRC

Item No.: PVT 15000/IRC
EREA

Delivery time: Please contact us for current delivery times



Enclosure

Vibration damper

€8.356,43 €5.849,50
(Price excluding VAT): €4.834,30
You Save: 30%
Request a quote?

Of betaal in termijnen vanaf €194,98 p/m. Meer info

EAN
5414503118493
SKU
PVT 15000/IRC

Technical specifications

BrandEREA
Commercial Order NumberPVT 15000/IRC
EAN5414503118493
ClassThree Phase Energy Efficient Low Inrush Current Protective Transformer (PVT)
Primary voltage3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage3x 400 Vac Y+N
Rated power15000VA (15KVA)
Degree of protectionIP00
Efficiency 96,8%
Voltage drop (dU%)2.9%
Pcu (W)440 W
Po (W)55 W
Dielectric strength to mass (Vac)2500 Vac
StandardsEN 61558-2-4
Maximum ambient temperatur ta (°C)40 °C
ApplicationFor Industrial Applications
Temperature ClassB
Size A x B x C (mm)480x370x415mm
Size D (mm)320mm
Size E (mm)210mm
Weight140kg
Primary connectionPush-X terminals 10 mm²
Secondary connectionPush-X terminals 10 mm²
Φ (mm)11 mm
Protection ClassPrepared for Protection Class I


Options

On requestProtection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment
Option enclosure IP20 (accessoire)K20PVT/015
Option enclosure IP23 (accessoire)K23PVT/015
Option enclosure IP44 (accessoire)K44EI400/030
Option Damper (accessoire)SILENT BLOCK 50
