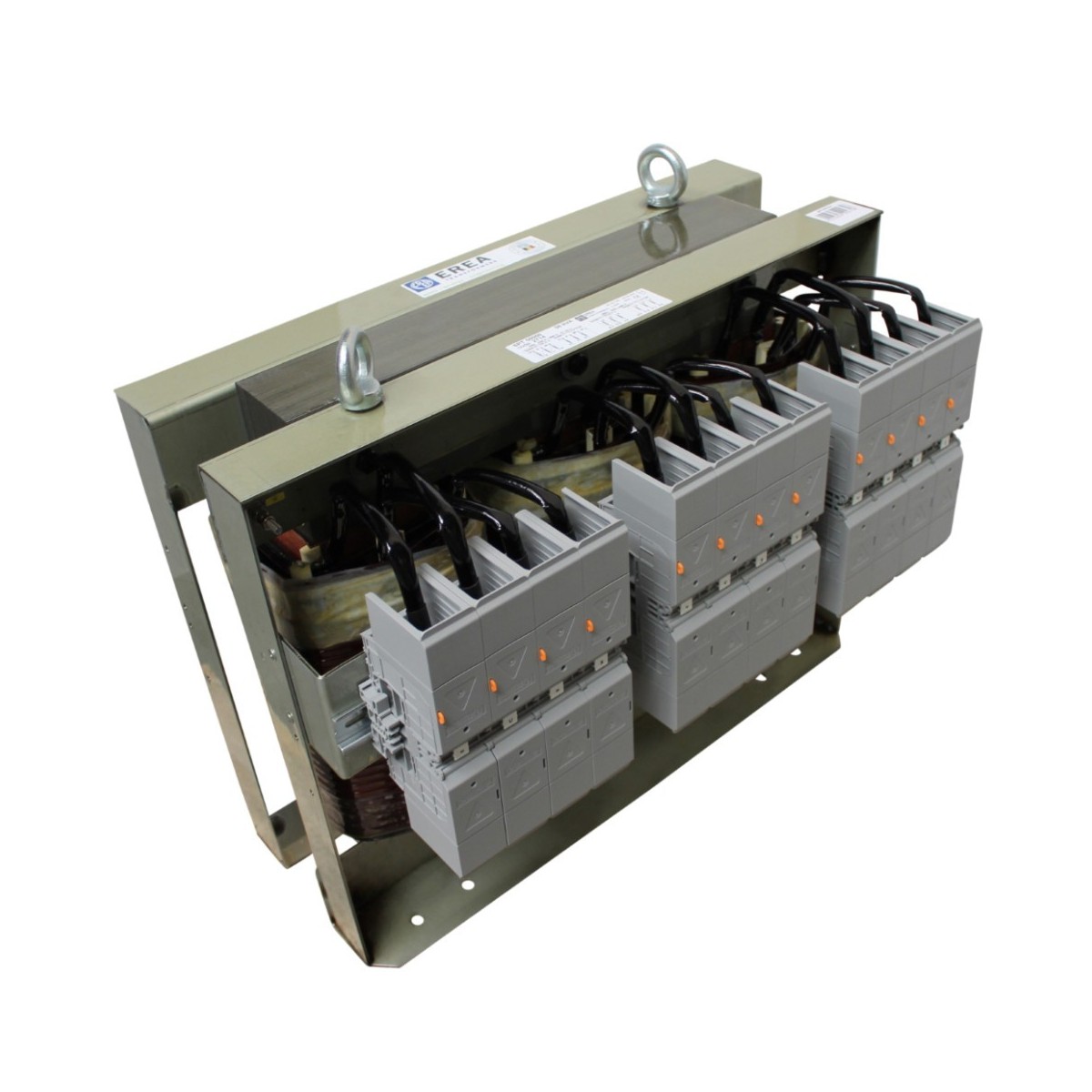

EREA 3 phase separating transformer 230-400V//230V-400V 50kVA SPT50000

Name: EREA 3 phase separating transformer 230-400V//230V-400V 50kVA SPT50000
Brand: EREA
SKU: SPT50000
Price: 13356.33 EUR
Availability: InStock

Item No.: SPT50000

€13.356,33

Of betaal in termijnen vanaf €445,21 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT50000
EAN	5414503004758
Class	Three-phase isolating transformer

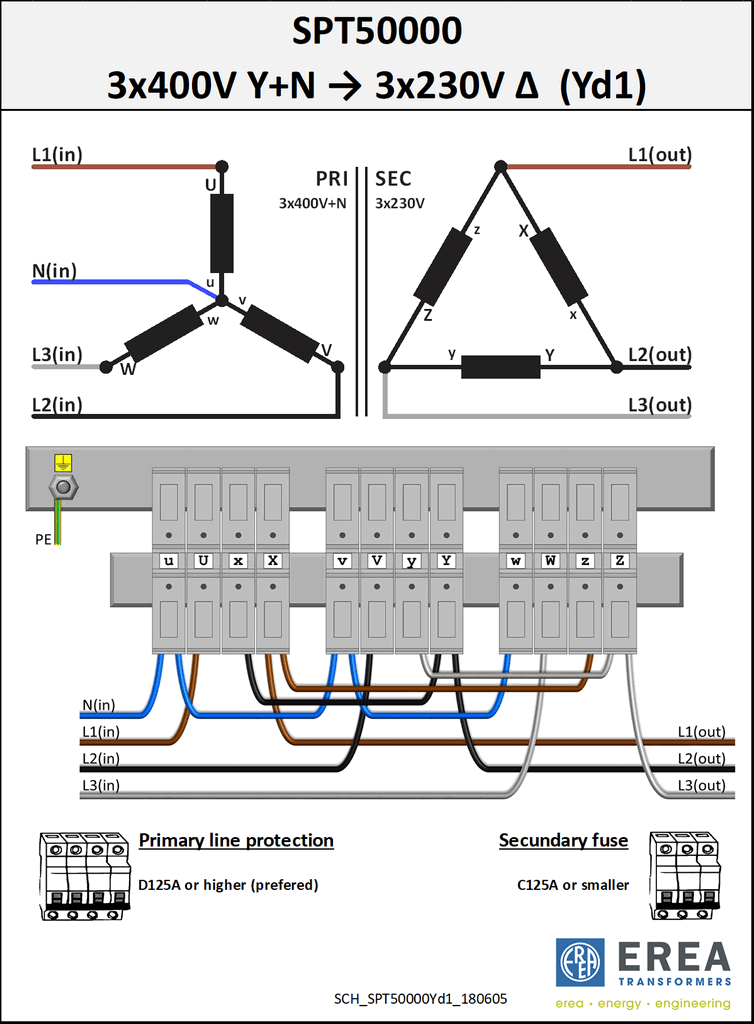

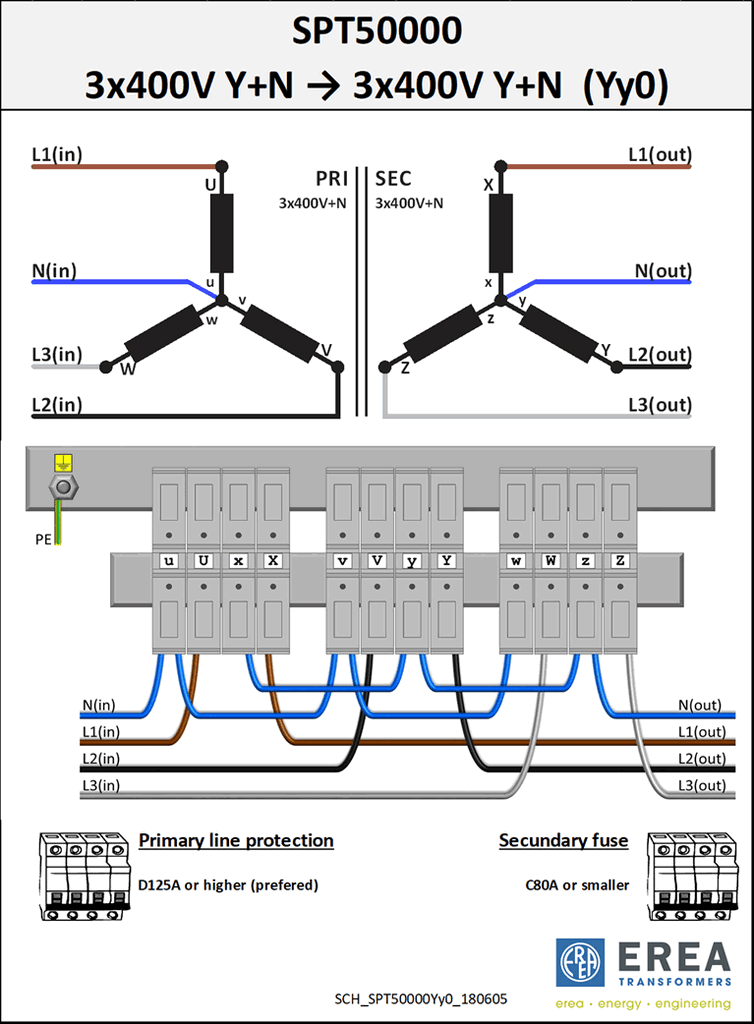

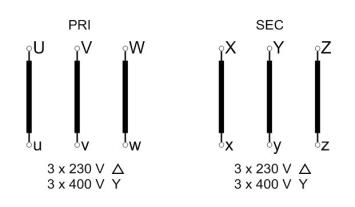

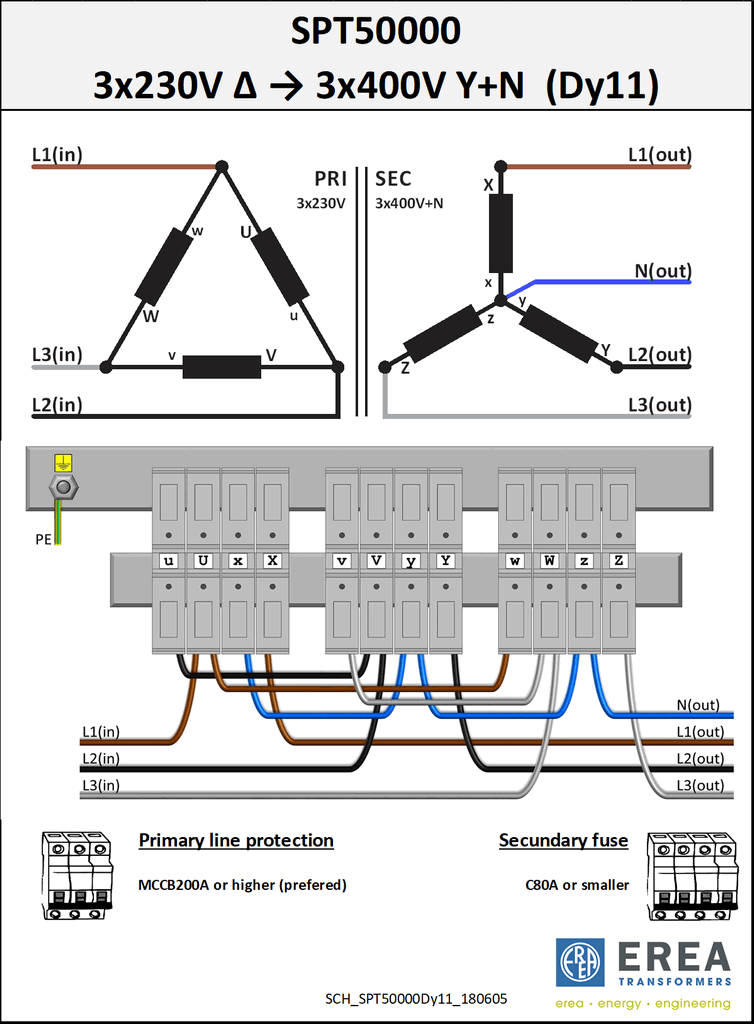

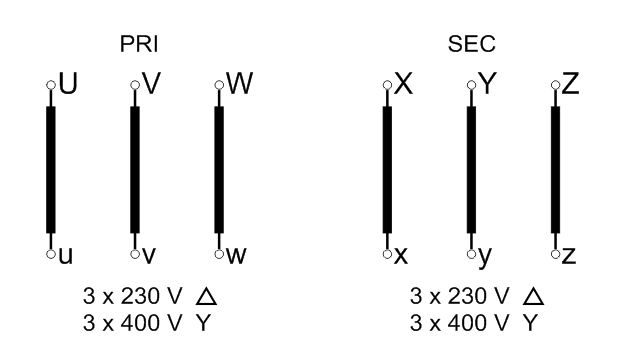

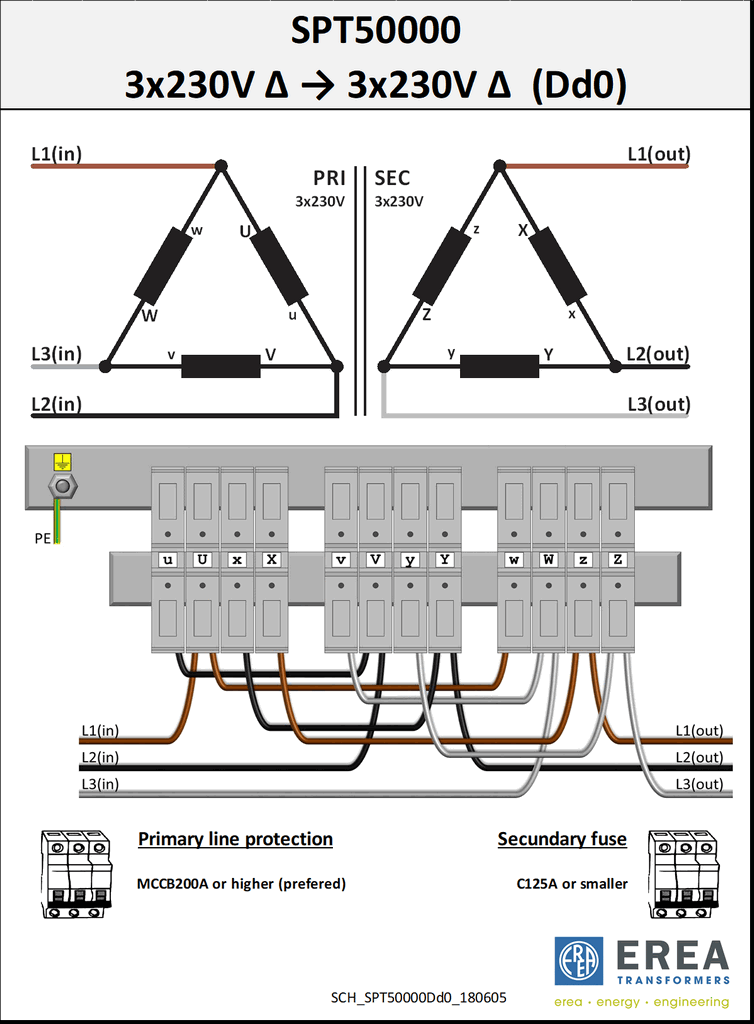

Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	50000VA (50KVA)
Voltage drop (dU%)	2.21 %
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP00
Standards	EN 60726 EN 60076
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Efficiency	97 %
Pcu (W)	1078 W
Po (W)	285 W

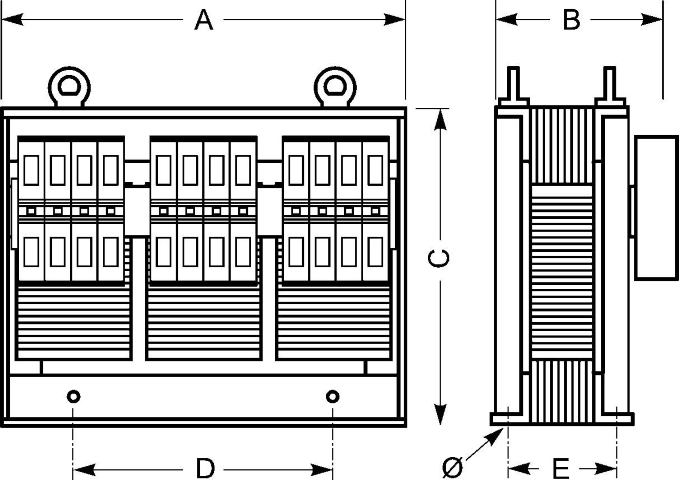

Size A x B x C (mm)	640x360x500mm
Size D (mm)	400mm
Size E (mm)	180mm
Weight	200kg
Primary connection	Nut fastening M10
Secondary connection	Nut fastening M10
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Protection class II Degree of protection IP23, IP44 and IP65 Other voltages and other powers Zig-Zag switching groups Connections with sockets and power cords With fuses With electrostatic screens Treatment for tropical resistance
Option Enclosure IP20 (accessory)	U 2222723
Option Enclosure IP23 (accessory)	K23EI500/001
Option Damper (accessory)	SILENT BLOCK 75
