EREA 3 phase isolation transformer 230-400V//230V-400V 4kVA

Item No.: SPT4000
1.775,23
Of betaal in termijnen vanaf 59,17 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number SPT4000
EAN 5414503004734
Class Three-phase isolating transformer
Primary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 4000VA (4KVA)
Voltage drop (dU%) 4.7%
Dielectric strength referred to frame (Vac) 2500 Vac
Dielectric strength to mass (Vac) 4500 Vac
Degree of protection IP00
Standards

EN 60742

EN 61558-2-4

Maximum ambient temperatur ta (°C) 40 °C
Application For Industrial Applications
Protection class Prepared for class I
Temperature Class B
Efficiency  94%
Pcu (W) 181 W
Po (W) 56 W
Size A x B x C (mm) 360x150x310mm
Size D (mm) 240mm
Size E (mm) 120mm
Weight 35.6kg
Primary connection Screw terminals 2.5 mm²
Secondary connection Screw terminals 2.5 mm²
Φ (mm) 11 mm
Finish Vacuum and pressure varnish impregnated

Options

On request Protection class II

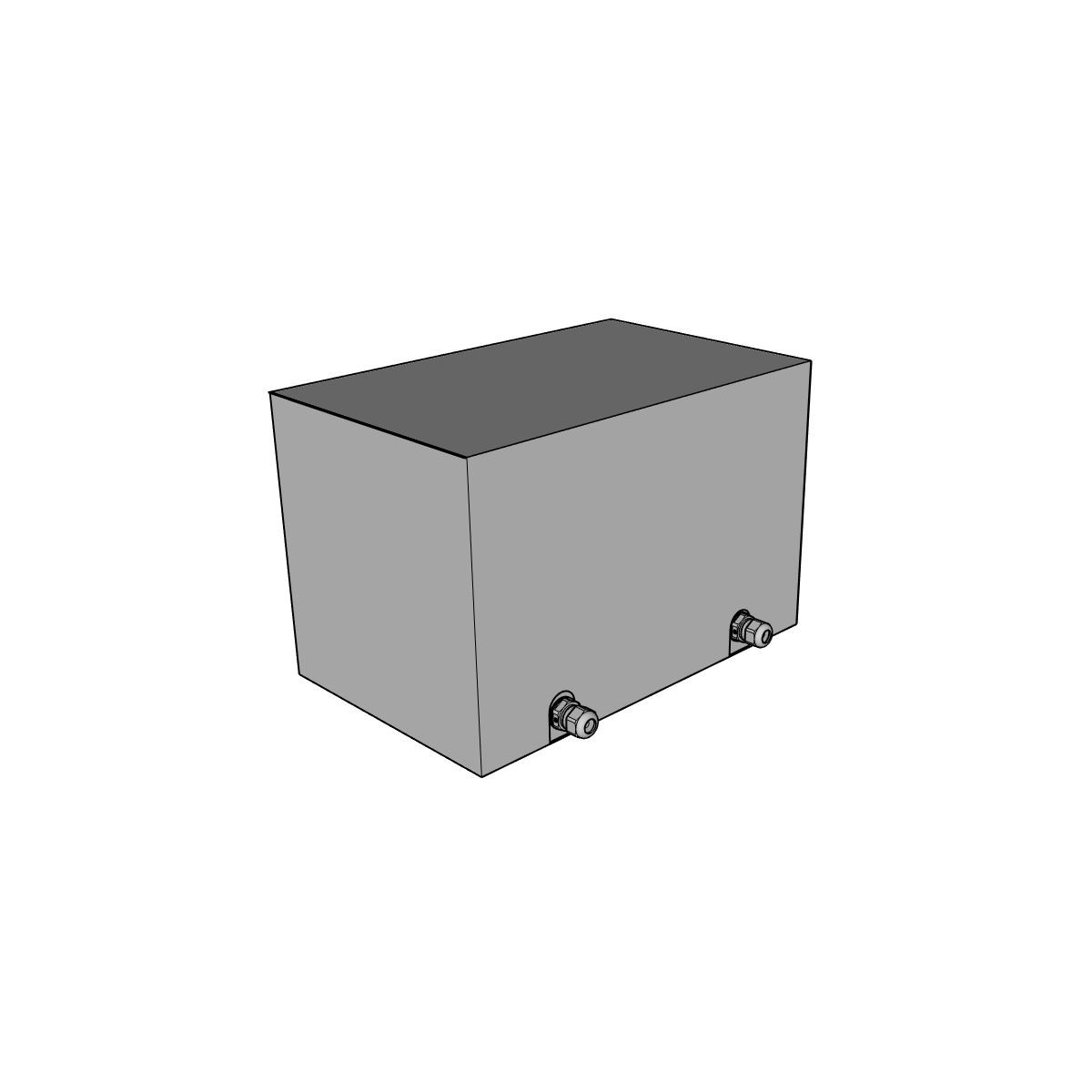

Degree of protection IP23, IP44 and IP65
Other voltages and other powers
Zig-Zag switching groups
Connections with sockets and power cords
With fuses
With electrostatic screens
Treatment for tropical resistance
Option Enclosure IP20 (accessory) U 222752
Option Enclosure IP23 (accessory) K23EI300/004
Option Damper (accessory) SILENT BLOCK 20
