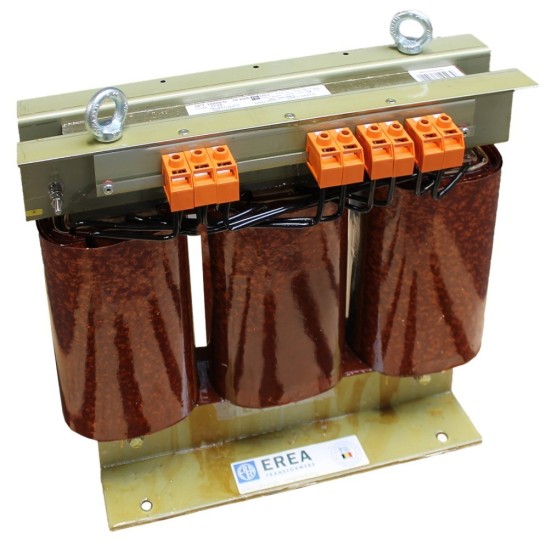

EREA 3 phase isolation transformer 400V//230V-400V 10kVA SPT10000/D

Name: EREA 3 phase isolation transformer 400V//230V-400V 10kVA SPT10000/D
Brand: EREA
SKU: SPT10000/D
Price: 4256.31 EUR
Availability: InStock

Item No.: SPT10000/D

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €3.517,61

€4.256,31

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €141,88 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT10000/D
EAN	5414503104939
Primary voltage	3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	10000VA (10KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP00
Standards	EN 60742 EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	B
Voltage drop (dU%)	2.6%
Efficiency	96.5%
Pcu (W)	270 W
Po (W)	92.5 W
Size A x B x C (mm)	480x180x415mm
Size D (mm)	320 mm
Size E (mm)	150 mm
Weight	70.2kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Finish	Vacuum and pressure varnish impregnated
Φ (mm)	11 mm

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire	U 2222720
Option enclosure IP23 (accessoire)	K23EI400/001
Option enclosure IP44 (accessoire)	K44EI400/010
Option Damper (accessoire)	SILENT BLOCK 20
