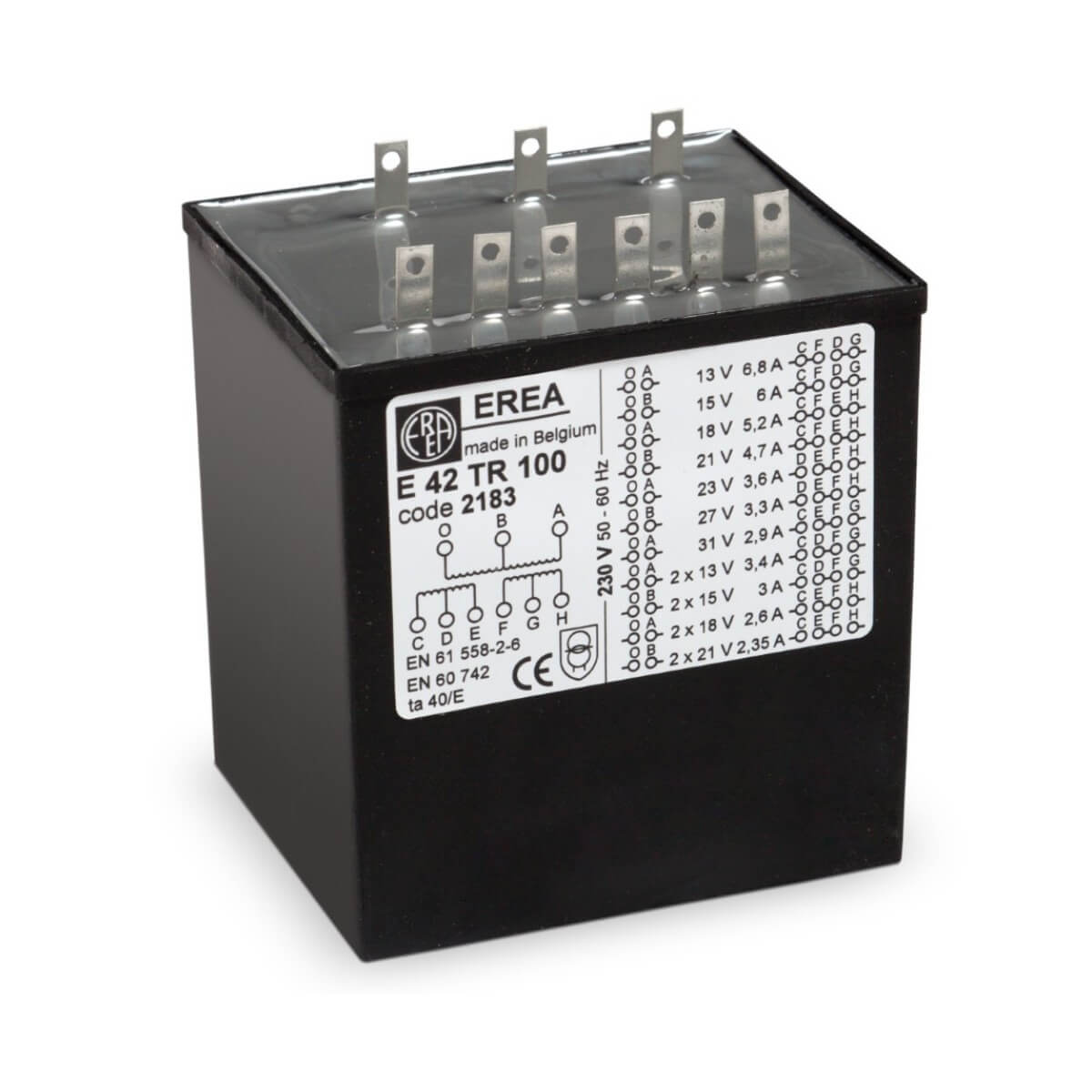

EREA 1 phase isolating transformer for electronic applications 230V/Us Multi-voltage 100VA E 42TR100

Name: EREA 1 phase isolating transformer for electronic applications 230V/Us Multi-voltage 100VA E 42TR100
Brand: EREA
SKU: E 42TR100
Price: 115.13 EUR
Availability: InStock

Item No.: E 42TR100

€115,13

Description

Technical specifications
Brand	EREA
Commercial Order Number	E 42TR100
EAN	5414503003157
Class	Single-phase isolating transformer for electronic applications - Upri 230V // Usec 0-13-15-18-21-23-27-31V 2x 0-13-15-18-21V - Power 100VA
Primary voltage	230 Vac
Secondary voltage	13-15-18-21-23-26-27-30-31-36-42 Vac
Power	100VA
Degree of protection	IP00
Voltage drop (dU%)	13%
Dielectric strength to mass (Vac))	4000Vac
Standards	EN 61558-2-4 EN 60742
Max. ambient temperature Ta (°C)	40 °C
Temperature class	E
Application	Control circuits, contactors and electronic applications
	Prepared for class II
Efficiency	86,3%
Pcu (W)	12.05W
Po (W)	3.25W

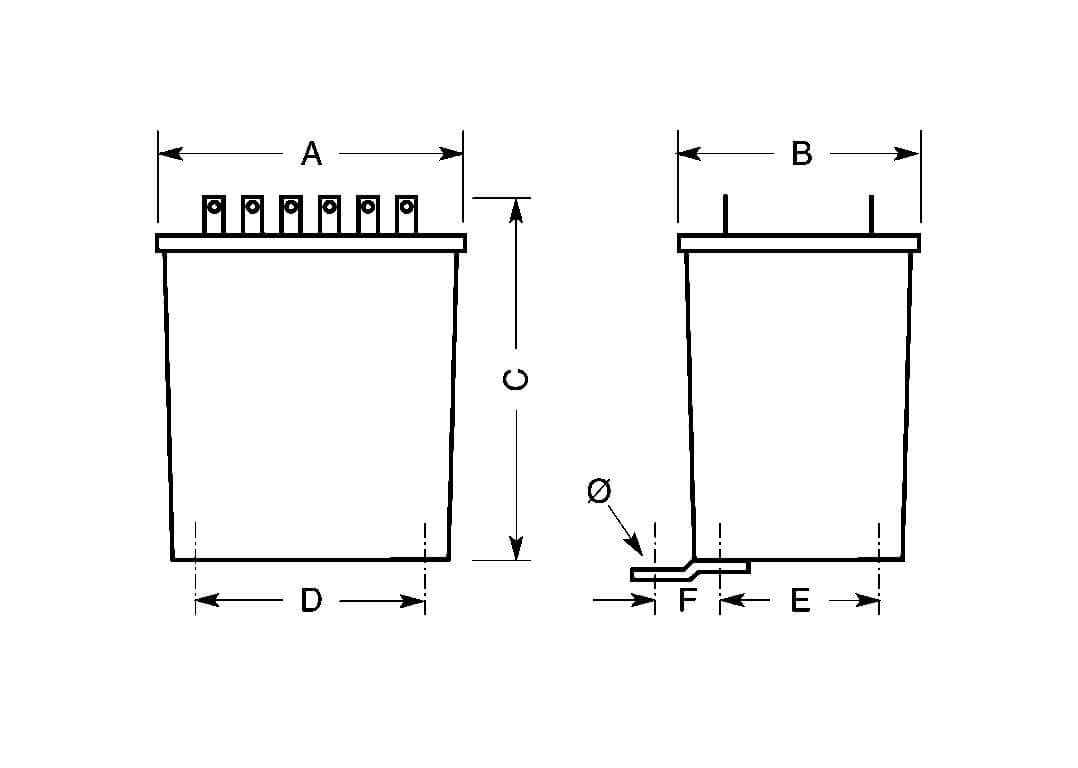

Size A x B x C (mm)	83x70x97mm
Size D (mm)	62mm
Size E (mm)	50mm
Weight	1.84kg
Primary connection	FAST-ON connectors 4,8 x 0,5 mm
Secondary connection	FAST-ON connectors 4,8 x 0,5 mm
Finish	Vacuum-encapsulated with synthetic resin
Φ (mm)	7mm

Options
On request	Other voltage and power ratings Connections with insulated wires and mains cables
