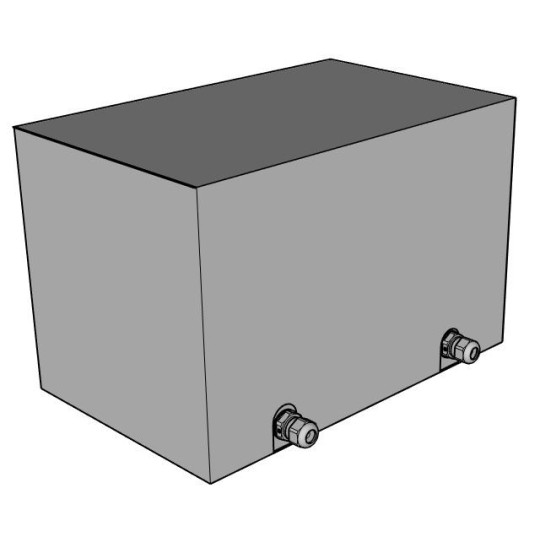

EREA 3 phase Autotransformer 0-230-400V 40kVA ATT 40000/IP65

Item No.: ATT 40000/IP65

Delivery time: Please contact us for current delivery times

(Price excluding VAT) 10.746,01
13.002,67
Of betaal in termijnen vanaf 433,42 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number ATT 40000/IP65
EAN 5414503110282
Class Three-phase autotransformer
Primary voltage 3x 0-230-400 Vac Y+N
Secondary voltage 3x 0-230-400 Vac Y+N
Rated power 40000VA (40KVA)
Degree of protection IP65
Voltage drop (dU%) 1.2%
Efficiency (%) 98.8%
Pcu (W) 841 W
Po (W) 261 W
Dielectric strength referred to frame (Vac) 2500 Vac
Standards EN 60726
EN 60076
Application For Industrial Applications
Protection class Prepared for class I
Maximum ambient temperatur ta (°C) 40 °C
Temperature Class F
Size A x B x C (mm) 539x429x433mm
Weight 194kg
Primary connection Nut fastening M12
Secondary connection Nut fastening M12
Finish Vacuum and pressure varnish impregnated
