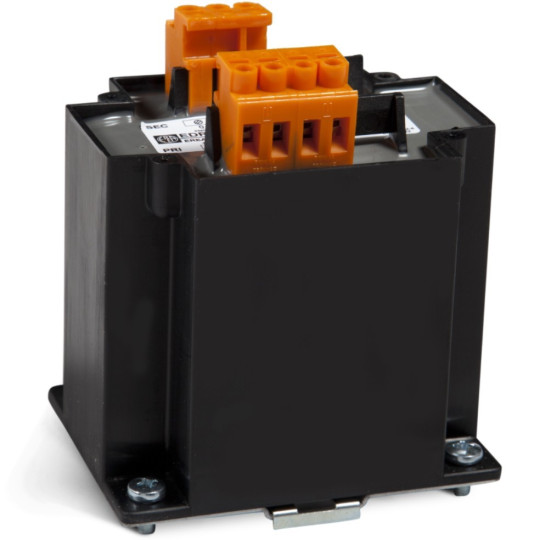

EREA 1 phase control transformer 15-0-230-400V/0-0-230V 100VA EDR 230TC100

Name: EREA 1 phase control transformer 15-0-230-400V/0-0-230V 100VA EDR 230TC100
Brand: EREA
SKU: EDR 230TC100
Price: 105.88 EUR
Availability: InStock

Item No.: EDR 230TC100

The minimum purchase order quantity for the product is 2.

€157,82 €105,88

(Price excluding VAT): €87,51

You Save: 33%

Request a quote?

EAN

5414503003270

SKU

EDR 230TC100

Technical specifications
Brand	EREA
Commercial Order Number	EDR 230TC100
EAN	5414503003270
Type	Control transformer (separated windings)
Alternative for Schneider article	ABL6TS10U

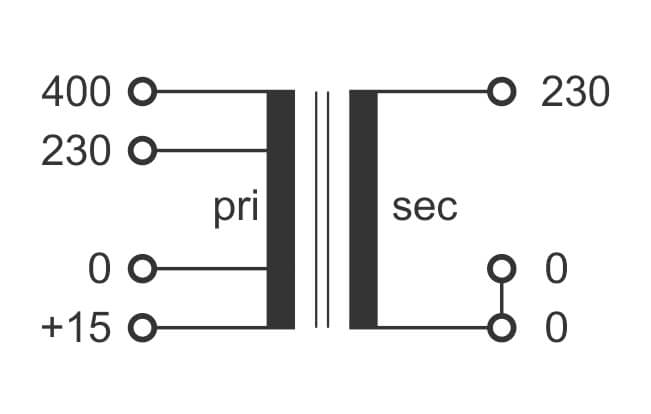

Primary voltage	15-0-230-400 Vac
Secondary voltage	0-0-230 Vac
Power	100VA
Degree of protection	IP20
Dielectric strength to mass (Vac))	4500Vac
Standards	EN 61558-2-2 EN 61558-2-6 EN 60742
Max. ambient temperature Ta (°C)	50 °C
Temperature class	B
Application	For all applications, especially designed for inrush power in control circuits
Protection class	Prepared for class II
Efficiency	90%
Voltage drop (dU%)	4.5%
Pcu (W)	5.9W
Po (W)	6.3W
Short-circuit voltage (Ucc %)	3.9%

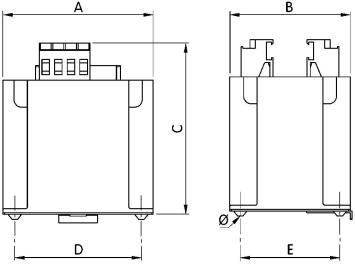

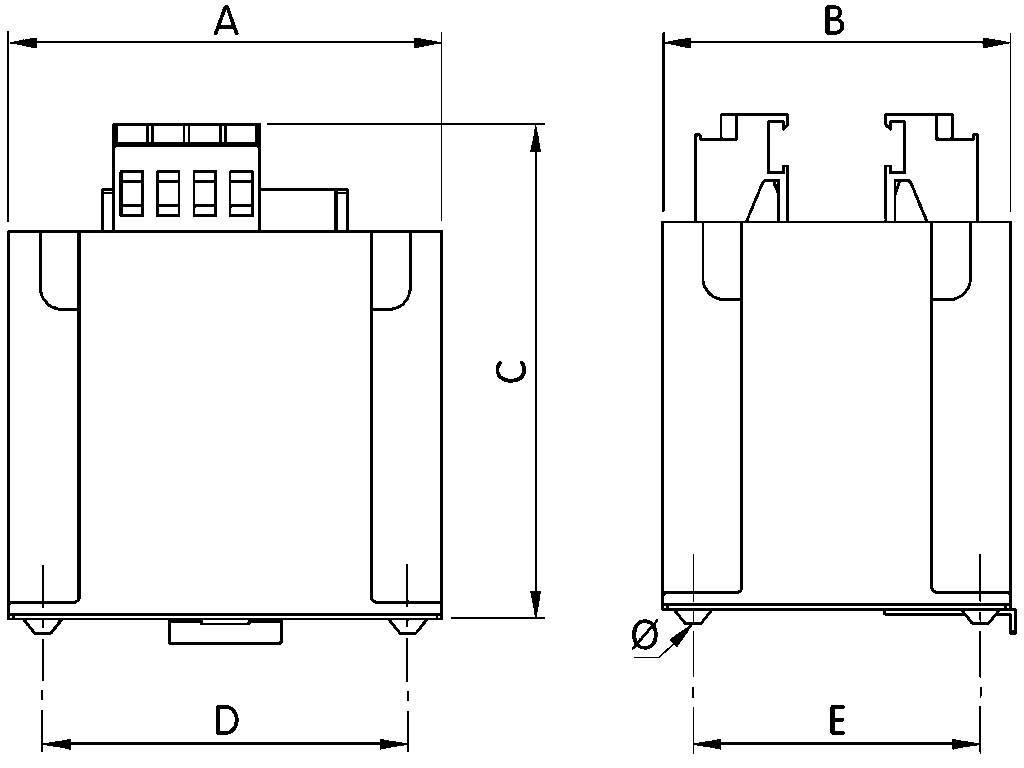

Size A x B x C (mm)	101x79x112mm
Size D (mm)	84mm
Size E (mm)	62mm
Weight	2.6kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Finish	Vacuum-encapsulated with synthetic resin
Φ (mm)	5.5mm

Options
On request	Other voltage and power ratings With electrostatic screens With fuses in the secondary circuit
