EREA 3 phase transformer Upri 400V ∆ // Usec 230V ∆ - 400V Y+N 20000VA (20KVA) SPT20000/D/BTE

Name: EREA 3 phase transformer Upri 400V ∆ // Usec 230V ∆ - 400V Y+N 20000VA (20KVA) SPT20000/D/BTE
Brand: EREA
SKU: SPT20000/D/BTE
Price: 8850.86 EUR
Availability: InStock

Item No.: SPT20000/D/BTE

Delivery time: 2-3 weeks (contact us)

(Price excluding VAT) €7.314,76

€8.850,86

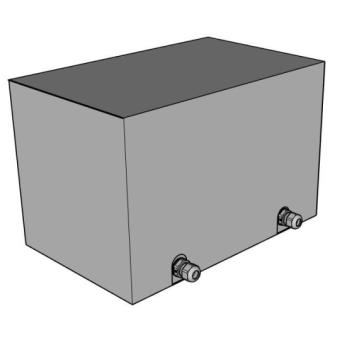

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €295,03 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT20000/BTE
EAN	5414503105356
Class	Energy Efficient Protective Transformer (BTE)
Primary voltage	3x 400 Vac ∆
Secondary voltage	3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	20000VA (20KVA)
Degree of protection	IP00
Diëlektrische vastheid (Vac)	4500 Vac
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	F
Application	For Industrial Applications
Voltage drop (dU%)	1.65%
Efficiency	97.7%
Pcu (W)	354W
Po (W)	117W
Size A x B x C (mm)	480x300x415mm
Size D (mm)	320mm
Size E (mm)	200mm
Weight	130kg
Primary connection	Nut fixture M8
Secondary connection	Nut fixture M8
Finish	Vacuum and pressure impregnated
Φ (mm)	11 mm

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20BTE/050
Option enclosure IP23 (accessoire)	K23BTE/050
Option Damper (accessoire)	SILENT BLOCK 50
