Technical specifications |
Brand | EREA |
Commercial Order Number | PVT 10000/IRC |
EAN | 5414503118486 |
Class | Three Phase Energy Efficient Low Inrush Current Protective Transformer (PVT) |
Primary voltage | 3x 230 Vac ∆ -- 3x 400 Vac Y+N |
Secondary voltage | 3x 400 Vac Y+N |
Rated power | 10000VA (10KVA) |
Degree of protection | IP00 |
Efficiency | 97,4% |
Pcu (W) | 220W |
Po (W) | 45W |
Voltage drop (dU%) | 2.1% |
Dielectric strength to mass (Vac) | 2500 Vac |
Standards | EN 61558-2-4 |
Maximum ambient temperatur ta (°C) | 40 °C |
Temperature Class | B |

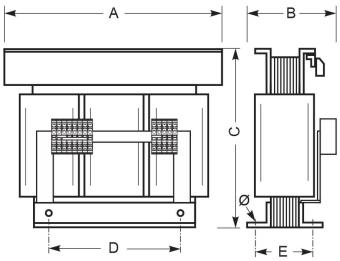

Size A x B x C (mm) | 420x240x365mm |
Size D (mm) | 280mm |
Size E (mm) | 193mm |
Weight | 110kg |
Primary connection | Screw terminals 10 mm; |
Secondary connection | Screw terminals 10 mm; |
Φ (mm) | 11 mm |
Protection Class | Prepared for Protection Class I |
|
Options |
On request | Protection Class II
Degree of protection IP23, IP44 and IP65
Other voltages and other capacities
Zig-Zag switching groups
Connections with sockets and with power cords
With fuses
With electrostatic screens
Tropical Resistance Treatment |
Option enclosure IP20 (accessoire) | K20PVT/005 |
Option enclosure IP23 (accessoire) | K23PVT/005 |
Option Damper (accessoire) | SILENT BLOCK 20 |
