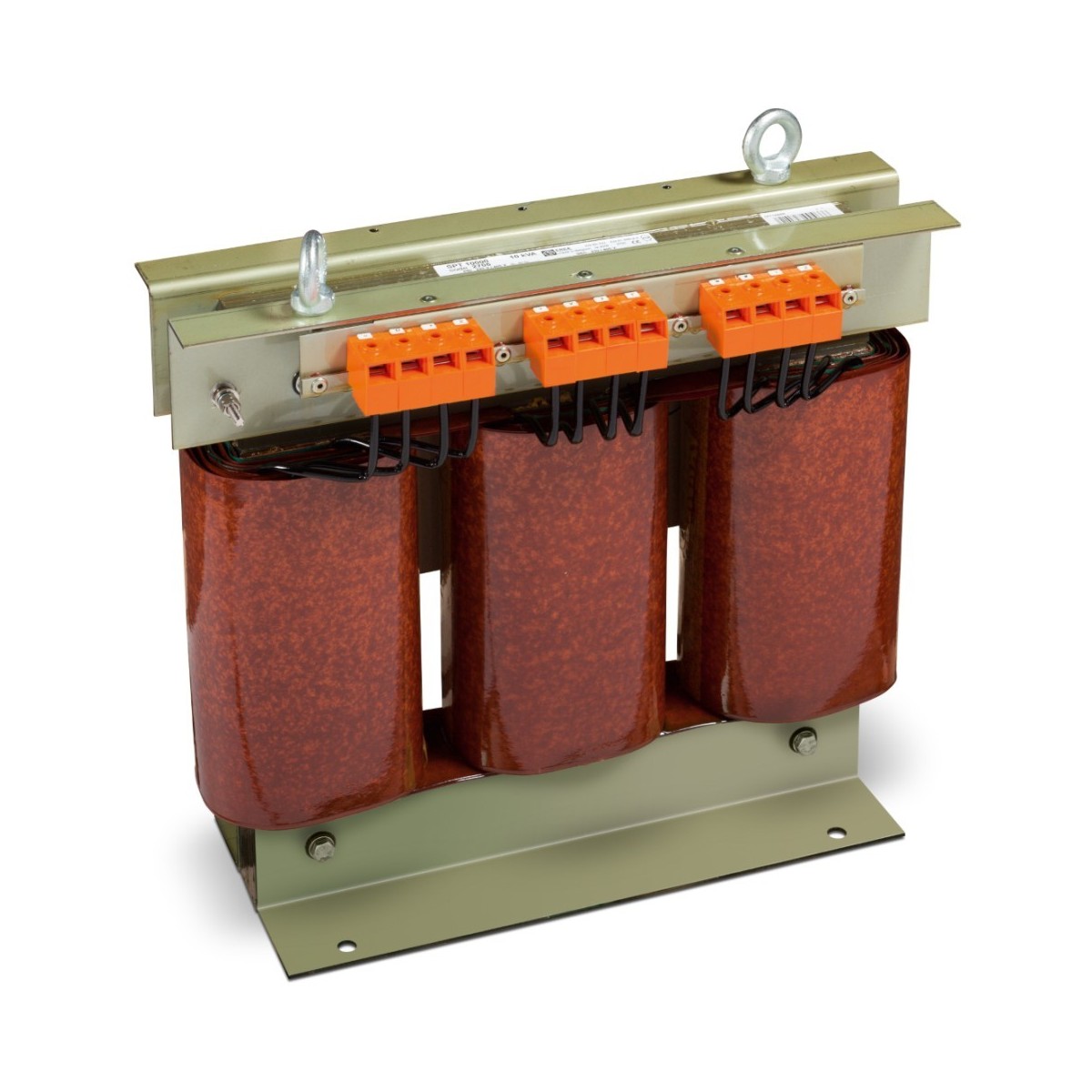

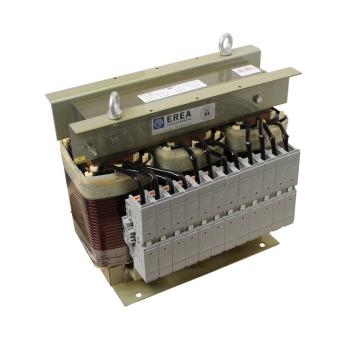

EREA 3 phase separating transformer 230-400V//230V-400V 10kVA SPT10000

Name: EREA 3 phase separating transformer 230-400V//230V-400V 10kVA SPT10000
Brand: EREA
SKU: SPT10000
Price: 4172.85 EUR
Availability: InStock

Item No.: SPT10000

€4.172,85

Of betaal in termijnen vanaf €139,10 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT10000
EAN	5414503004666
Class	Three-phase isolating transformer

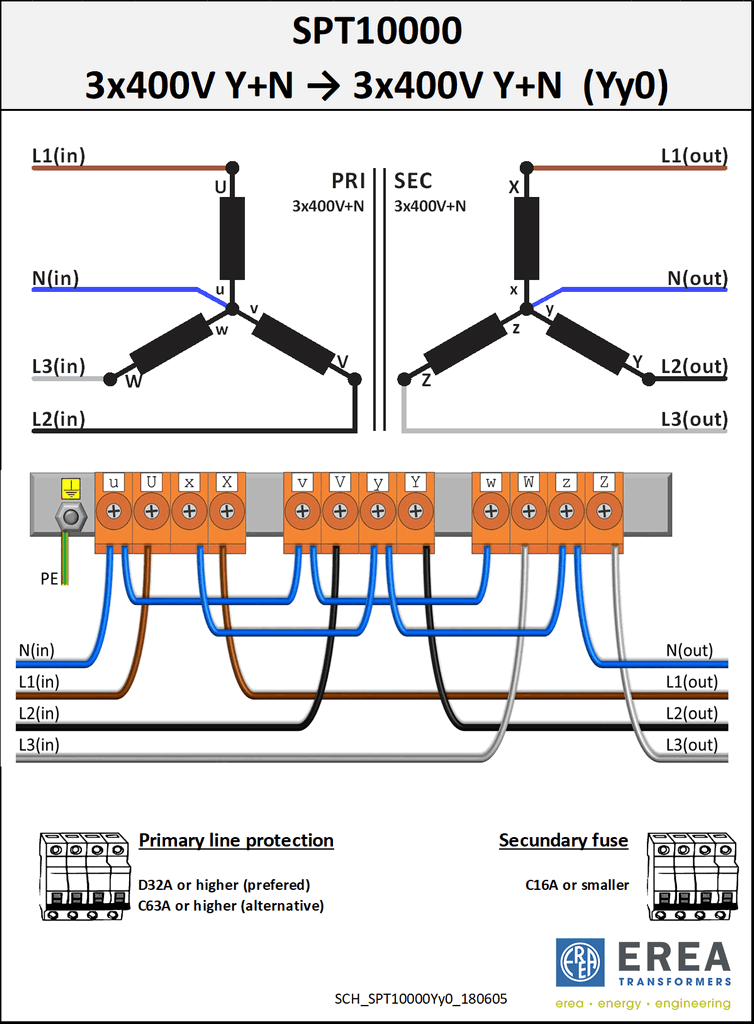

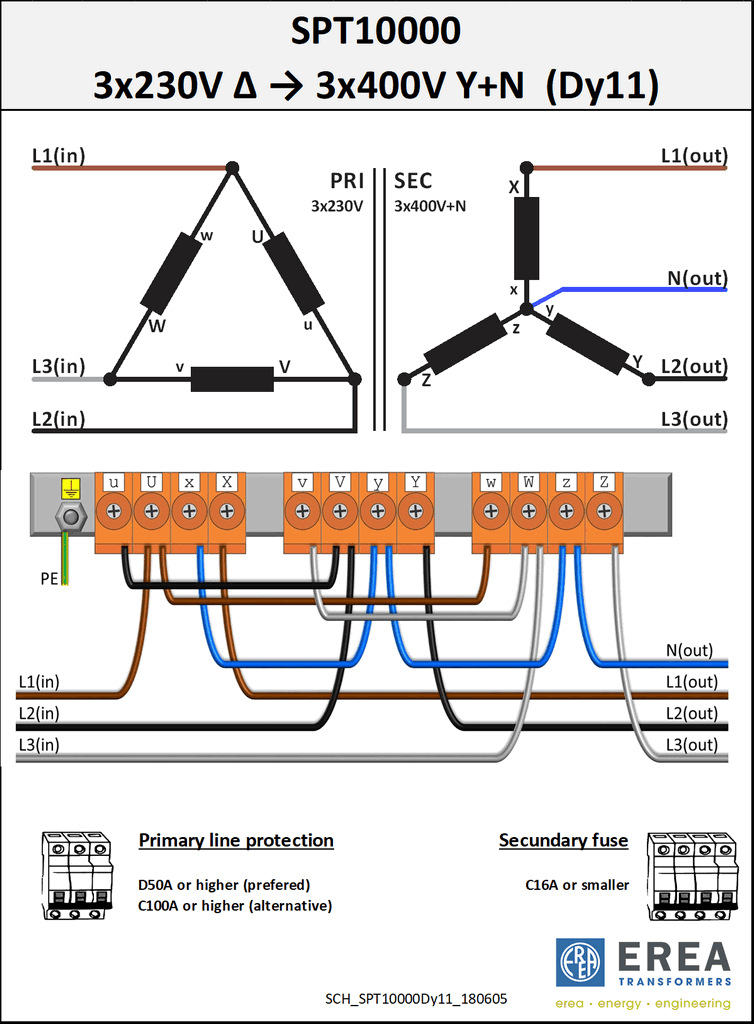

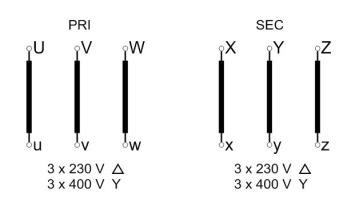

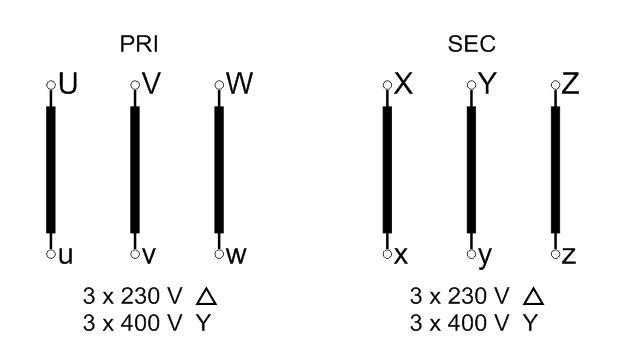

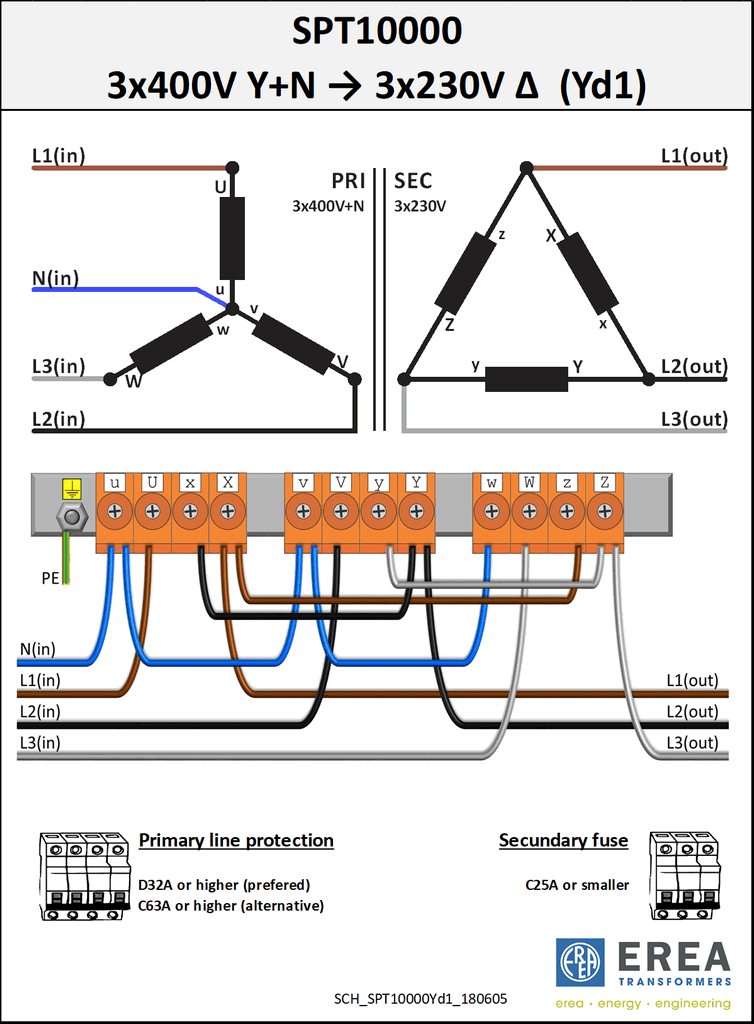

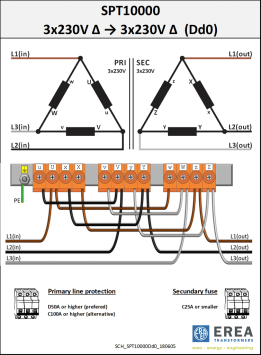

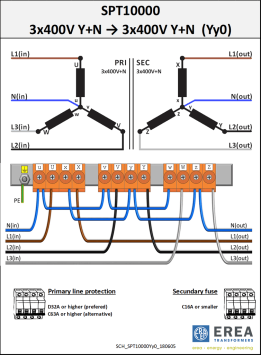

Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	10000VA (10KVA)
Voltage drop (dU%)	3.14%
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP00
Standards	EN 60742 EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	B
Efficiency	96.2%
Pcu (W)	298 W
Po (W)	92,5 W

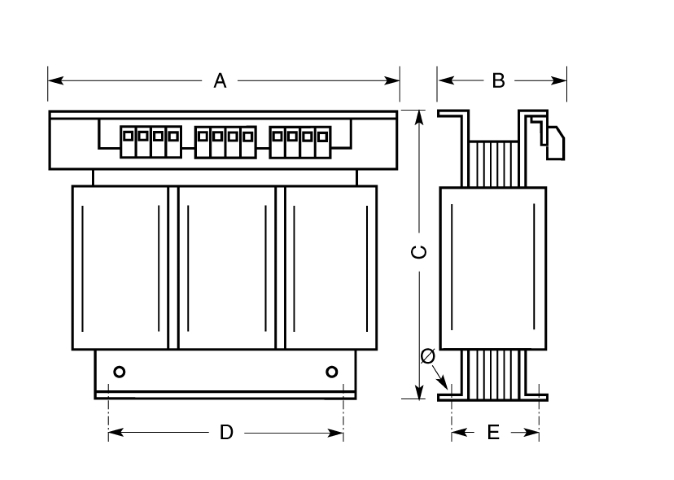

Size A x B x C (mm)	480x180x415mm
Size D (mm)	320mm
Size E (mm)	150mm
Weight	70.2kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Protection class II Degree of protection IP23, IP44 and IP65 Other voltages and other powers Zig-Zag switching groups Connections with sockets and power cords With fuses With electrostatic screens Treatment for tropical resistance
Option Enclosure IP20 (accessory)	U 2222720
Option Enclosure IP23 (accessory)	K23EI400/001
Option Damper (accessory)	SILENT BLOCK 20
